Gira attuatore radio di commutazione/pulsante 1 canale guida DIN 543300

Single-channel wireless actuator with 10 A switching capacity and integrated repeater function for the Gira wireless system, operating at 868.3 MHz.

Overview

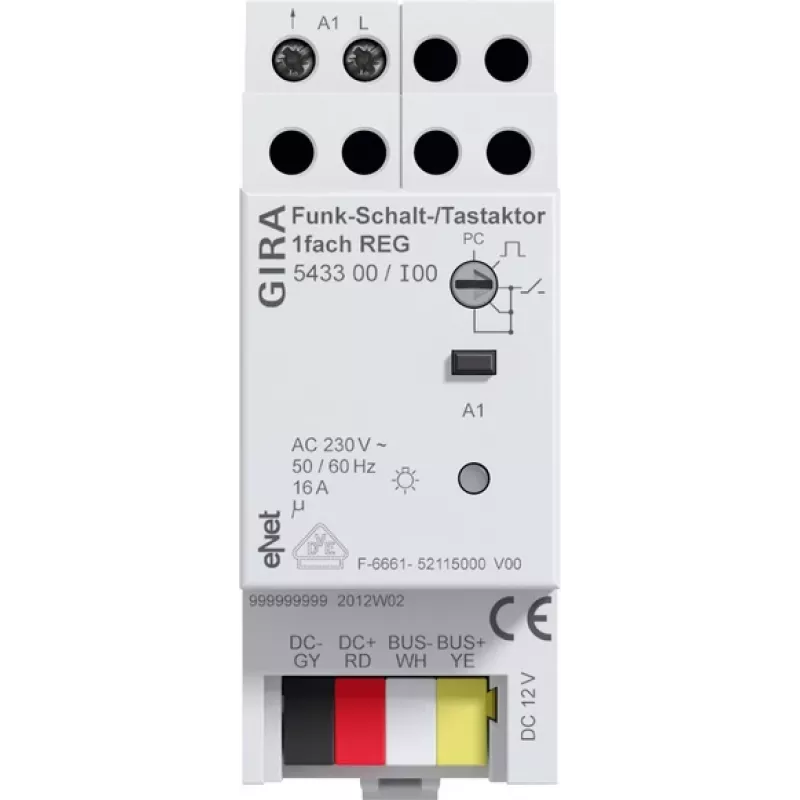

The Gira 543300 is a DIN rail mounted wireless switching/push-button actuator with one normally open contact. It is designed for switching lighting and other electrical loads in residential and commercial buildings, controlled by Gira wireless transmitters. The device supports manual operation, status LED, and advanced logic functions.

What stands out

• Integrated repeater function extends wireless range
• Supports scene, staircase light, and logic functions (AND, OR, XOR)
• Feedback capability for status confirmation
• Compact 1 TE (DIN module) design

Technical details

• Supply voltage: 230 V AC, 50/60 Hz
• Output: 1x normally open contact, 10 A resistive
• Max. switching power: 2300 W resistive, 2000 W incandescent/halogen, 1500 W electronic transformers, 200 W LED
• Operating frequency: 868.3 MHz
• Terminals: screw terminals, max. 2.5 mm²
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C

Our verdict

A versatile wireless actuator for DIN rail installation, offering reliable switching and advanced automation features in a compact form factor.
