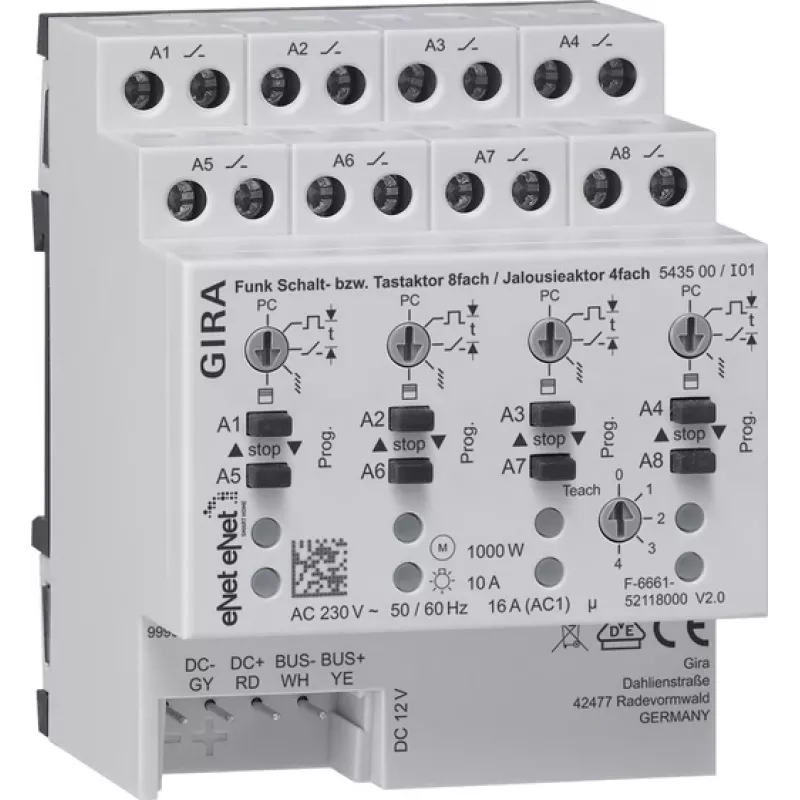

GIRA Attuatore radio interruttore/tapparella guida DIN 8 canali 4A 543500

Control up to eight independent 4 A switching channels from a single compact DIN rail module with the GIRA Wireless Switching/Blind Actuator 543500. Built around Eltako-Funk (EnOcean compatible) wireless technology, it integrates seamlessly into building automation systems without additional wiring for control signals.

Overview

The GIRA 543500 is a wireless switching actuator designed for DIN rail mounting (REG). It provides eight normally open (NO) relay outputs, each capable of switching loads up to 4 A at 250 V AC. The unit is powered directly from the 230 V AC mains and occupies only 4 TE (DIN rail units) of space.

What stands out

• Eight independent switching channels with 4 A per channel
• Wireless control via Eltako-Funk (EnOcean compatible) – no control wiring needed
• Supports up to 35 wireless transmitters for flexible scene and central control
• Compact 4 TE DIN rail housing for efficient distribution board installation
• Handles resistive, incandescent, halogen, fluorescent (EVG), and LED (EVG) loads

Technical details

• Product type: Wireless switching actuator
• Mounting: DIN rail (REG)
• Number of channels: 8
• Switching contact type: 8x normally open (NO)
• Max. switching current per channel: 4 A
• Max. total switching current: 10 A
• Max. switching voltage: 250 V AC
• Wireless technology: Eltako-Funk (EnOcean compatible)
• Supply voltage: 230 V AC (50 Hz)
• Standby power loss: 0.8 W
• DIN rail units: 4 TE
• Controllable transmitters: up to 35
• Operating temperature: -20°C to +50°C
• Protection class: IP20
• Functions: switching, scene control, central control
• Load types: resistive, incandescent, halogen, fluorescent (EVG), LED (EVG)

Our verdict

A versatile and space-efficient wireless actuator for modern building automation, offering eight channels of reliable switching with broad load compatibility and flexible wireless control.
