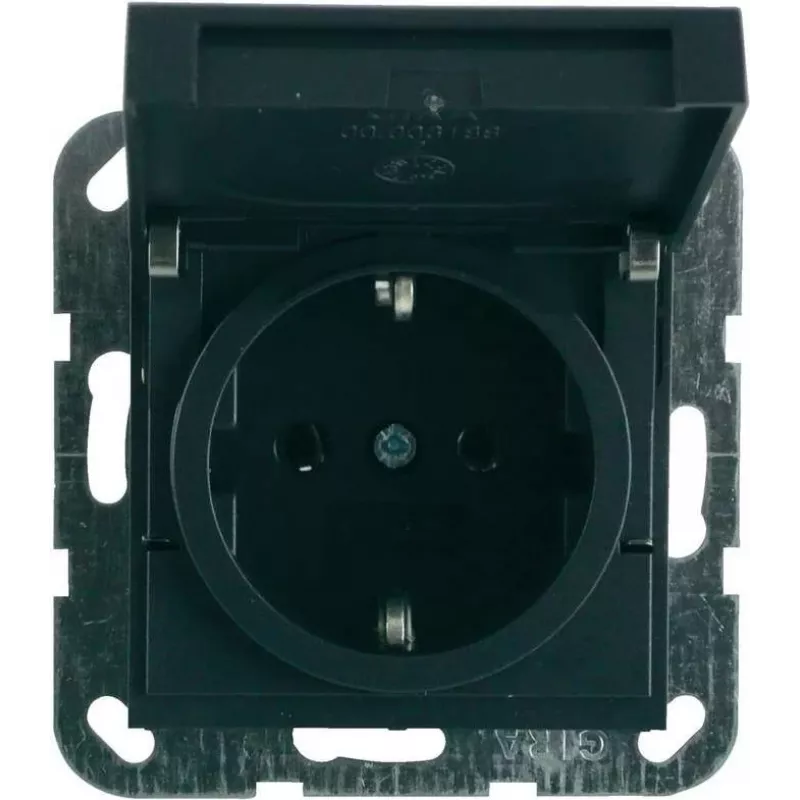

GIRA frutto presa Schuko System 55 antracite 045428

Power outlet insert for Gira System 55, Standard 55, E2, Event, Event Klar, Event Opak, Esprit, and ClassiX frames. Provides a flush-mounted Schuko socket with screw terminals for secure connection.

Advantages

Compatible with multiple Gira design lines, halogen-free thermoplastic construction, and VDE certified.

Suitable for

• Gira System 55 frames
• Gira Standard 55 frames
• Gira E2 frames
• Gira Event, Event Klar, Event Opak frames
• Gira Esprit frames
• Gira ClassiX frames

Key specifications

• Schuko socket type (Type F)
• Rated current: 16 A
• Rated voltage: 250 V AC
• Flush-mounted installation
• Screw terminals
• 2-pole + earth
• Frequency: 50/60 Hz
• Colour: Anthracite
• Material: Thermoplastic (PC)
• Protection class: IP20
• Halogen-free
• Installation depth: 32 mm
• VDE certified
• CE compliant
• Terminal capacity: up to 2.5 mm² rigid conductors

Recommendations

Pair with a matching Gira frame and cover plate from the System 55 range for a complete installation.
