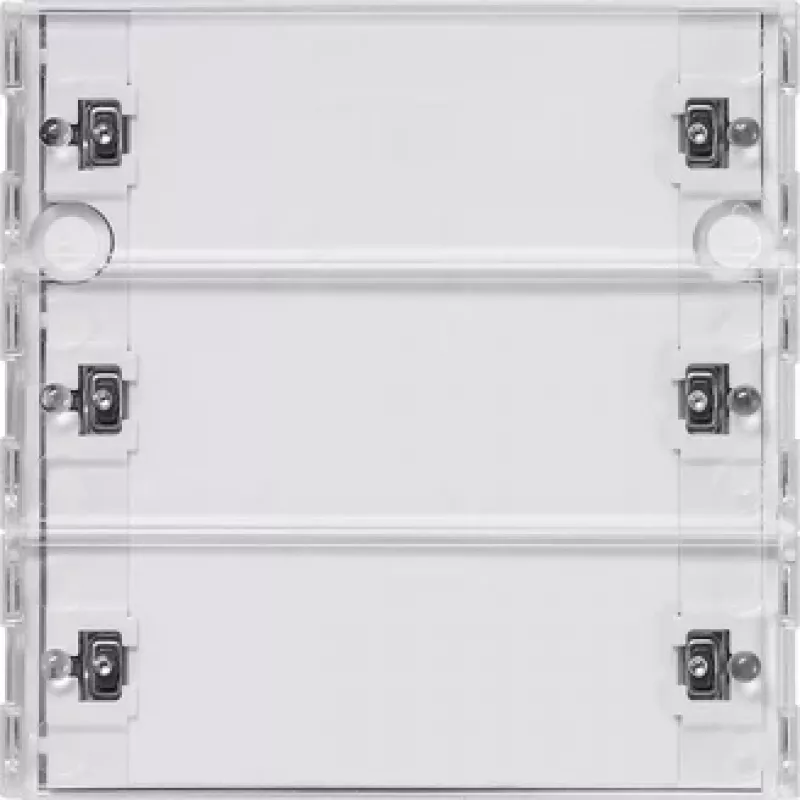

Gira KNX RF Tastatore 3 moduli System 55, bianco puro lucido 510300

Traditional wired KNX installations require extensive cabling, which is costly and disruptive in existing buildings. The Gira KNX RF Push-button Sensor 3-gang solves this by providing wireless control over KNX functions, eliminating the need for new wiring while maintaining full integration with KNX systems.

Who is it for

This sensor is ideal for electricians, system integrators, and homeowners who want to add or modify KNX control points in retrofit projects or where wiring is impractical. It fits standard flush-mounted boxes and is compatible with the Gira System 55 design line, allowing seamless integration with existing switches and sockets.

Main features

• 3-gang push-button sensor with 6 individually programmable rocker functions.
• Wireless KNX RF communication on 868.3 MHz, no bus wiring needed.
• Battery operated with two CR2032 cells, providing approximately 5 years of operation.
• Three status LEDs (red/green/orange) and one green operation LED for clear feedback.
• Supports switching, dimming, blind control, value transmitter, and scene recall functions.
• Configured via ETS software for flexible integration.

Specifications

• Product type: KNX RF Push-button Sensor
• Number of channels: 3-gang (6 rocker functions)
• Communication protocol: KNX RF (Radio Frequency)
• Frequency band: 868.3 MHz
• Design line: Gira System 55
• Colour: Pure White Glossy
• Material: Thermoplastic (PC)
• Power supply: Battery operated (2x CR2032)
• Mounting type: Flush-mounted
• Configuration: ETS Software
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Relative humidity: 10% to 95% (non-condensing)

Tips

Remember to purchase the rocker set and frame separately, as they are not included. The sensor is designed for indoor use only and should be installed in a standard device box.
