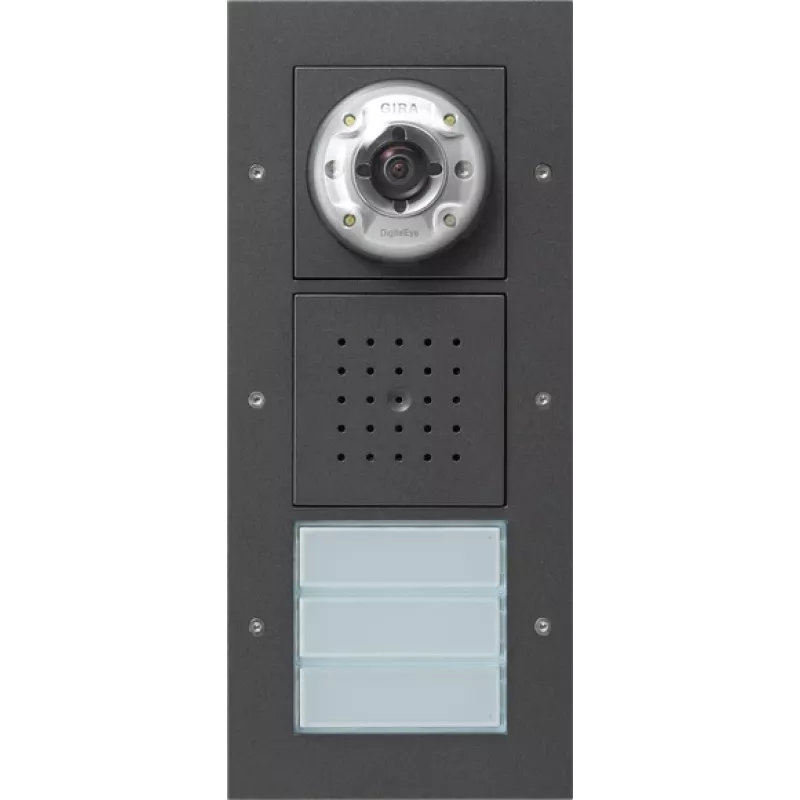

Gira Postazione video citofono da parete 3 moduli antracite 127067

Video door station with integrated color camera and full-duplex audio for surface mounting, equipped with three call buttons and anthracite finish. The integrated IR LEDs provide clear night vision, while the mechanical camera adjustment allows precise alignment of the approx. 85° horizontal and 65° vertical viewing angle.

Advantages

The station operates on the Gira 2-wire bus, enabling simple installation and integration into the Gira System 6000. The housing made of UV-resistant plastic with metal frame and IK07 impact resistance ensures durability, while the integrated heating guarantees reliable operation even at low temperatures down to -25 °C.

Suitable for

• Residential buildings with up to three residential units
• Outdoor areas requiring splash-proof protection (IP44)
• Integration into Gira System 6000 video door communication

Key specifications

• Product type: Video door station
• Mounting type: Surface-mounted
• Number of call buttons: 3
• Colour: Anthracite
• Camera: Integrated color camera with IR LEDs
• Viewing angle: Approx. 85° horizontal, 65° vertical
• Audio: Full-duplex with integrated microphone and speaker
• Nameplate illumination: White LED
• Protection class: IP44
• Impact resistance: IK07
• Operating temperature: -25 °C to +70 °C
• Material: UV-resistant plastic housing, metal frame
• Special features: Tamper contact, integrated heating, mechanical camera adjustment
• Power supply: Via Gira 2-wire bus system

Recommendations

For integration into the Gira System 6000, use the corresponding bus power supply and compatible indoor stations. Ensure proper sealing of the surface-mounted housing to maintain the IP44 protection.
