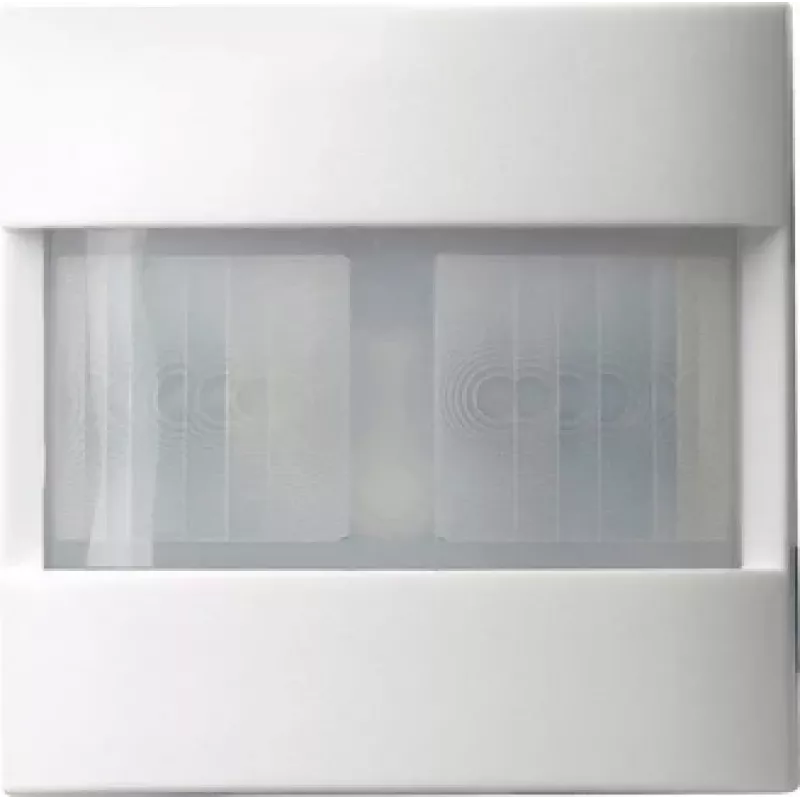

Gira S3000 Modulo rilevatore di movimento 1,10 m standard, bianco puro satinato 537903

The Gira S3000 motion detector attachment brings automatic, presence-based switching to the System 55 design line. Unlike standalone sensors, this modular unit pairs with a Gira S3000 insert (sold separately) to create a flush-mounted solution that disappears into the wall. Its 180° detection field and 8 m range are tuned for mounting at 1.10 m height, making it ideal for hallways, staircases, and utility rooms. The pure white silk matt finish blends seamlessly with Gira frames, while the shatter-proof thermoplastic housing withstands daily knocks.

Highlights

• Passive infrared (PIR) sensor with 180° detection angle
• Detection radius of approximately 8 m at recommended 1.10 m mounting height
• Compatible with Gira S3000 inserts for 2-wire, 3-wire, or secondary unit configurations
• Adjustable follow-up time from 10 seconds to 30 minutes via insert
• Adjustable brightness threshold from 0 lux to 1000 lux for daylight operation
• Zero-crossing switching for extended relay life
• Flush-mounted design for System 55, E2, E3, Event, Esprit, and F100 frames

In daily use

Once paired with an S3000 insert, the detector automatically switches lighting on when movement is detected and off after the set follow-up time. Manual override is possible via a push-button extension connected to the insert. The sensor operates reliably from -5 °C to +45 °C, and its IP20 rating suits indoor installation. The modular concept allows you to combine this attachment with different inserts to match your wiring situation and control needs.

Full specifications

• Product type: Motion detector attachment
• Series: Gira S3000
• Mounting type: Flush-mounted (requires S3000 insert)
• Recommended mounting height: 1.10 m
• Detection angle: 180°
• Detection range (radius): approx. 8 m at 1.10 m mounting height
• Sensor technology: Passive infrared (PIR)
• Colour: Pure white silk matt
• Material: Thermoplastic, shatter-proof
• Compatibility: Gira System 55, E2, E3, Event, Esprit, F100 design lines
• Adjustable follow-up time: approx. 10 seconds to 30 minutes (via insert)
• Adjustable brightness threshold: approx. 0 lux to 1000 lux (via insert)
• Zero-crossing switching: Yes
• Operating modes: Standard, short-term operation, test mode
• Protection class: IP20 (when installed correctly)
• Operating temperature: -5 °C to +45 °C
• Additional functions: Automatic switching, manual override via push-button extension

Final note

The Gira S3000 motion detector attachment is a reliable, modular solution for automatic lighting control in residential and commercial settings. Its precise detection and adjustable parameters ensure comfort and energy savings.
