Sensore PIR Goobay bianco per montaggio a soffitto rilevamento 360° portata 6m per interni

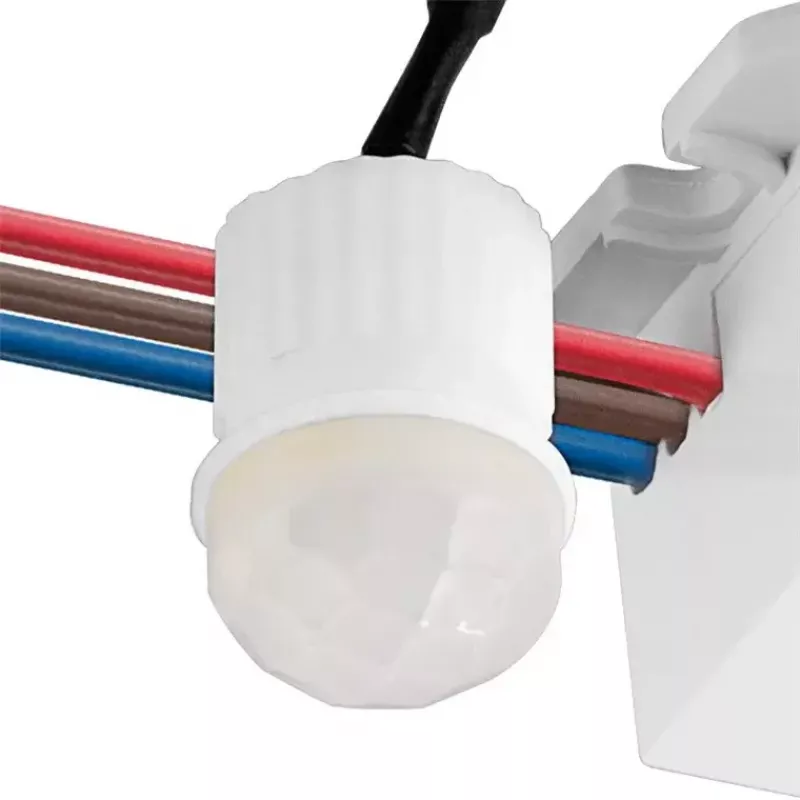

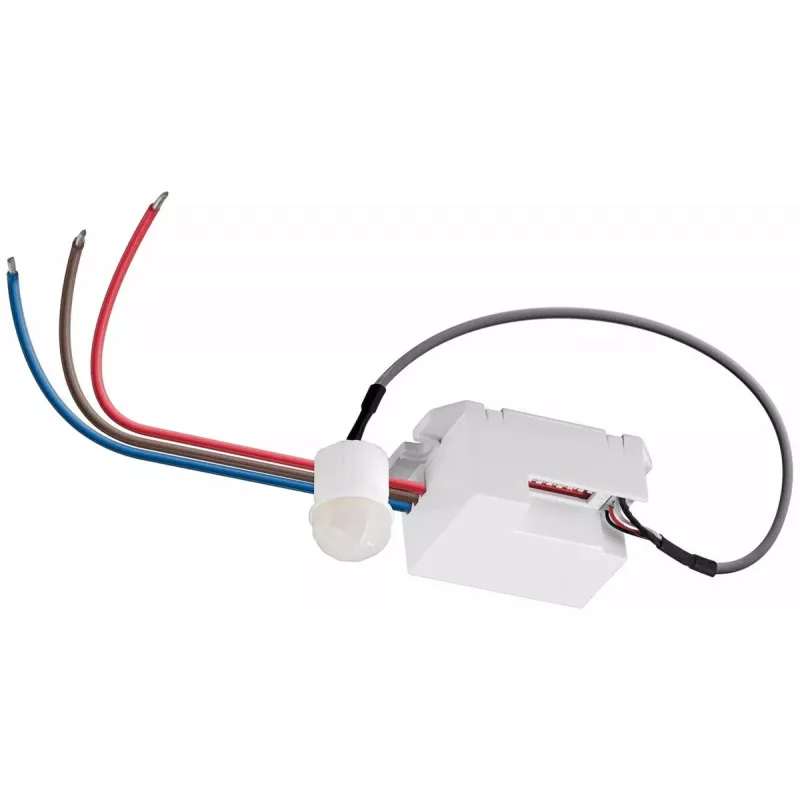

The Goobay White PIR Sensor for Ceiling Mount is a compact motion detector designed for flush installation in indoor ceilings. With a 360° detection angle and a maximum range of 6 meters, the sensor triggers lighting when it detects movement in low-light conditions. It operates on AC 220–240V and is compatible with LED lighting, using passive infrared (PIR) technology for reliable detection in hallways, rooms or stairwells.

Advantages

The sensor combines a full 360° detection field with a slim, unobtrusive housing (15 x 24 x 15 mm) suitable for discreet ceiling mounting. Its 6 m range ensures coverage of small to medium indoor spaces, and compatibility with LED lamps makes it energy-efficient. Designed for AC mains (220–240V), the device provides automatic, hands-free light control without the need for additional control units.

Suitable for

• Corridors and hallways
• Staircases and landings
• Small rooms, utility rooms and pantries
• Indoor LED lighting automation

Key specifications

• Brand: GOOBAY
• Model / MPN: 96006
• Detection type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range: up to 6 m
• Mounting: flush ceiling mount
• Supply voltage: AC 220–240 V
• Compatibility: LED lighting
• Dimensions: 15 x 24 x 15 mm
• Intended use: Indoor

How to use

Install the PIR sensor into a suitable flush ceiling cut-out following local electrical regulations and switch off mains power before wiring. Connect the sensor to the AC 220–240 V supply and integrate it with the lighting circuit. Position the detector centrally in the area to be monitored at an appropriate height for optimal 360° coverage. After powering up, test detection by walking through the coverage area and adjust placement if necessary.

Recommendations

For reliable operation, avoid placing the sensor near heat sources, air vents or behind large obstacles. Use with compatible LED drivers and fixtures; consult a qualified electrician for installation and for any compatibility questions related to specific LED lamps or loads.
