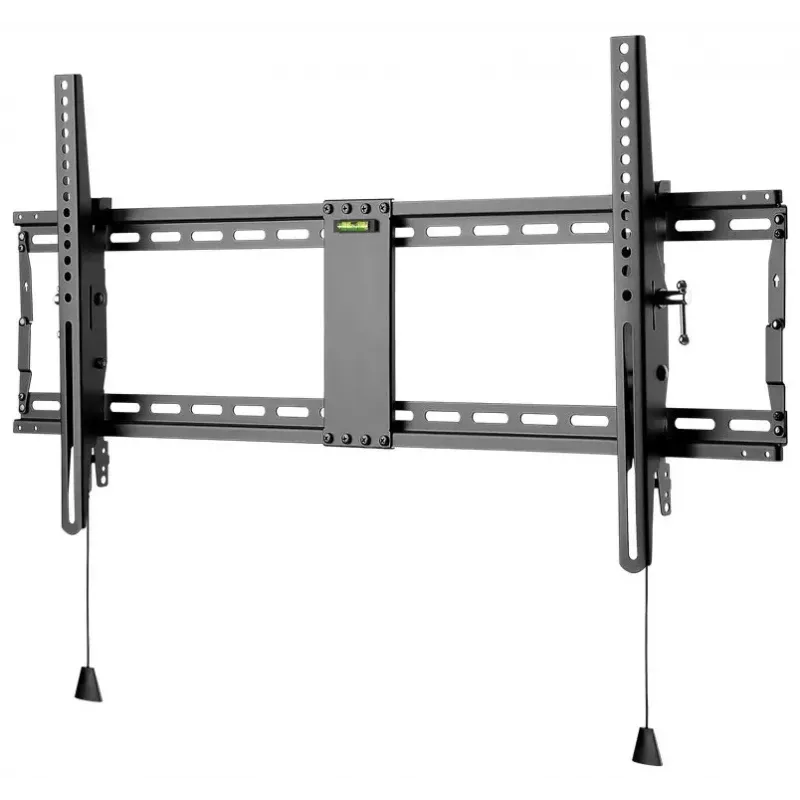

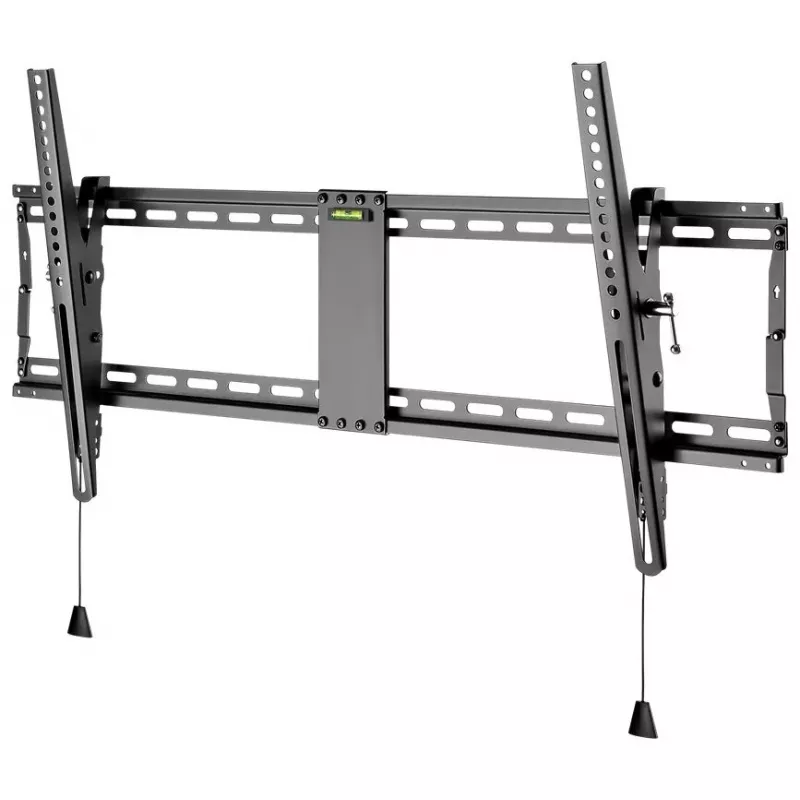

Supporto TV Wentronic Pro TILT (XL) 2,54 m (100") nero 70 kg

The Wentronic Pro TILT (XL) TV mount fits flat-panel TVs from 43 to 100 inches (109–254 cm) with a maximum load of 70 kg. It supports VESA patterns up to 800 x 400 mm and offers a tilt adjustment from 3° to 12°. A spring-assisted closure with an easy-release cord lock secures the display on the wall plate and allows horizontal repositioning along the wall plate for precise alignment.

Advantages

The mount provides tool-free tilt adjustment within the specified range and a spring closure with an easy-to-solve cord lock for quick and secure installation. Its wide VESA compatibility (200 x 200 mm to 800 x 400 mm) and 70 kg load capacity accommodate most large TVs up to 100". The black finish is unobtrusive and suitable for home or office environments.

Suitable for

• Mounting large flat-panel TVs (43–100")
• Rooms requiring tilt adjustment to reduce glare
• Installations needing lateral fine-tuning of screen position
• Home and office audiovisual setups

Key specifications

• Supported screen size: 43–100" (109–254 cm)
• Maximum weight capacity: 70 kg
• Tilt range: 3°–12°
• VESA compatibility: up to 800 x 400 mm (supports 200 x 200 mm to 800 x 400 mm)
• Colour: Black
• Number of displays: 1

How to use

Mount the wall plate to a suitable load-bearing wall following the included installation template and fasteners. Attach the TV to the bracket using the appropriate VESA holes and secure it with the spring-assisted closure and cord lock. After hanging the TV, adjust the tilt between 3° and 12° as needed and slide the screen left or right on the wall plate to achieve the desired horizontal position. Verify all fastenings and the cord lock are engaged before finishing.

Recommendations

Use appropriate wall anchors and fasteners for the wall type and TV weight; if unsure, consult a professional installer. Regularly check fixings and the cord lock for wear and retighten if necessary.
