Good Connections Cavo patch in fibra ottica OS2 Singlemode Simplex LC/SC 9/125µm 20m Giallo

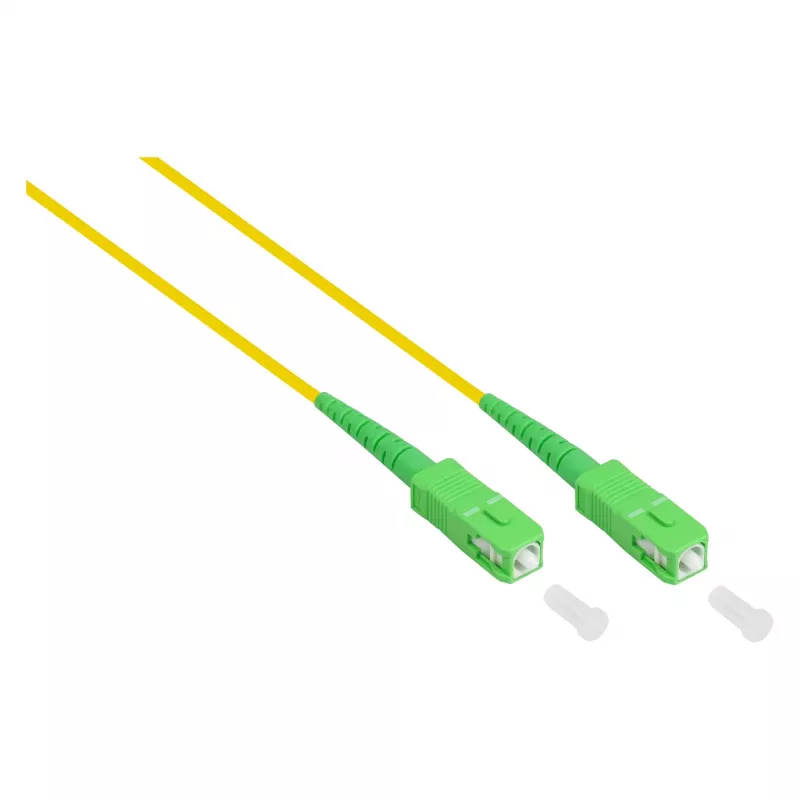

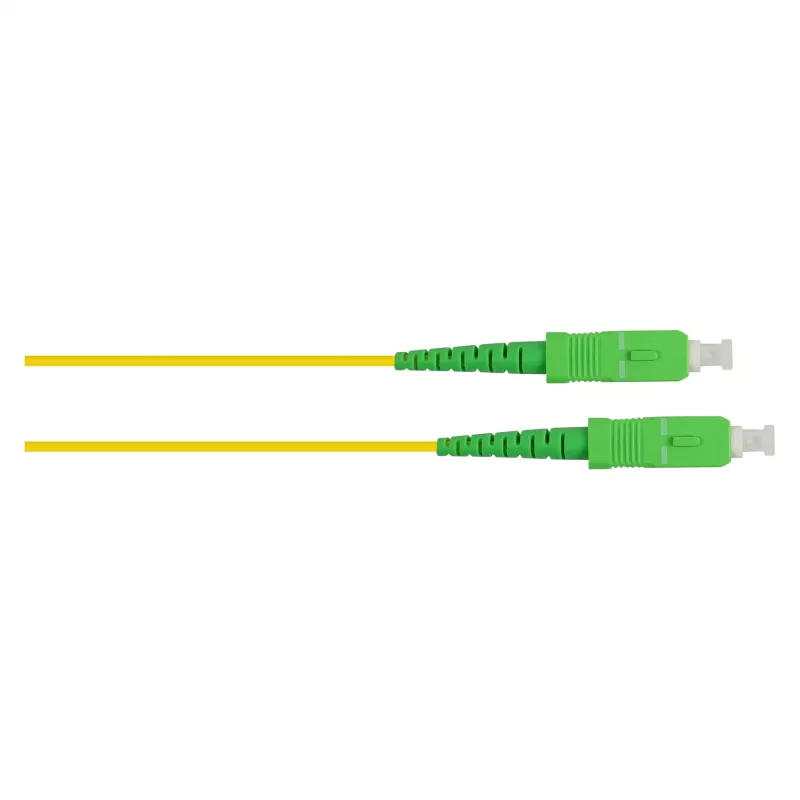

The Good Connections LW-S920LASA is a high-quality OS2 single-mode fiber optic patch cable designed for reliable, high-speed data transmission in demanding network environments. Featuring LC to SC connectors with UPC polish, this simplex cable ensures low insertion loss and high return loss for optimal signal integrity. The 9/125µm core/cladding construction is ideal for long-distance and high-bandwidth applications.

Advantages

This cable delivers exceptional performance with insertion loss ≤0.3 dB and return loss ≥50 dB, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes and smoke in case of fire. The yellow color indicates single-mode fiber, making identification easy. Zirconia ceramic ferrules guarantee precise alignment and durability.

Suitable for

• Data centers requiring high-density cabling
• Telecommunications networks
• Local Area Networks (LAN)
• FTTx (Fiber to the x) installations
• Long-distance backbone connections

Key specifications

• Fiber Type: Single-mode (OS2)
• Connector A: LC (Lucent Connector) UPC
• Connector B: SC (Subscriber Connector) UPC
• Cable Configuration: Simplex
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Cable Length: 20 m
• Jacket Material: LSZH
• Cable Color: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Ferrule Material: Zirconia Ceramic
• Standards: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SFP modules and patch panels. Suitable for indoor use in controlled environments.
