Graffatrice Einhell TC-PN 50

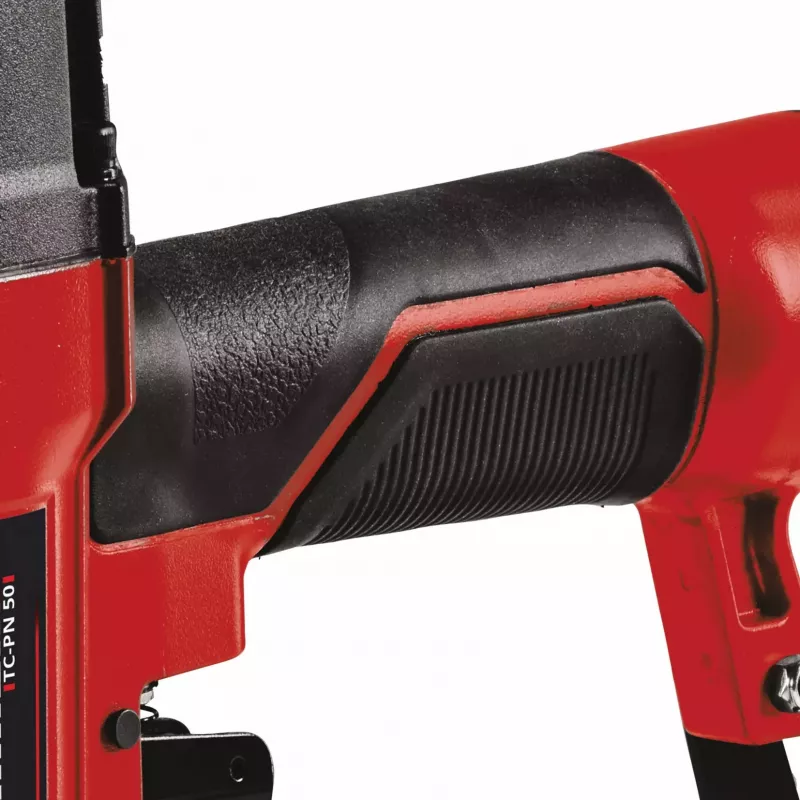

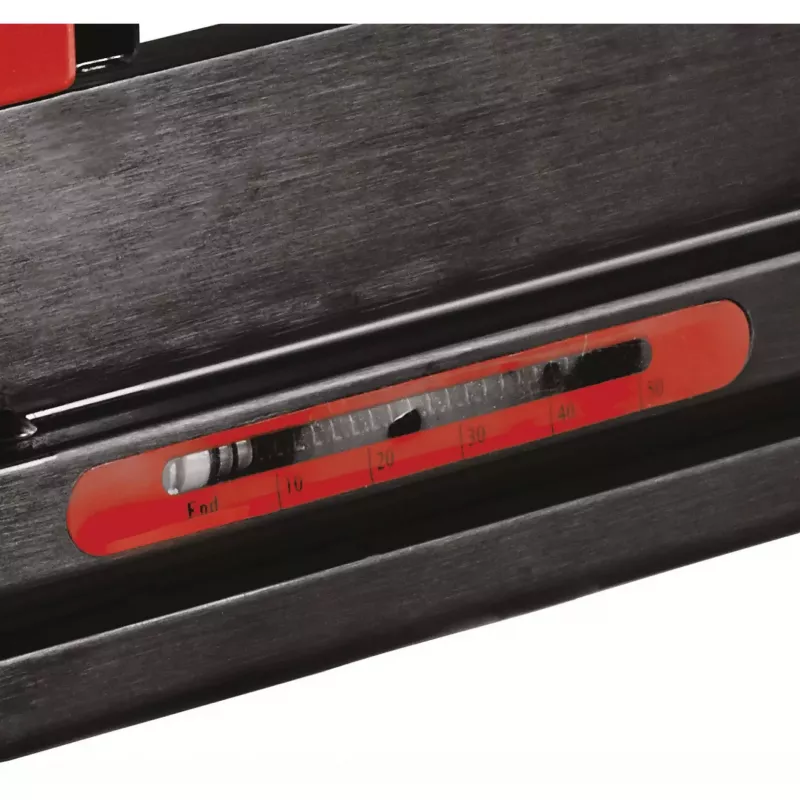

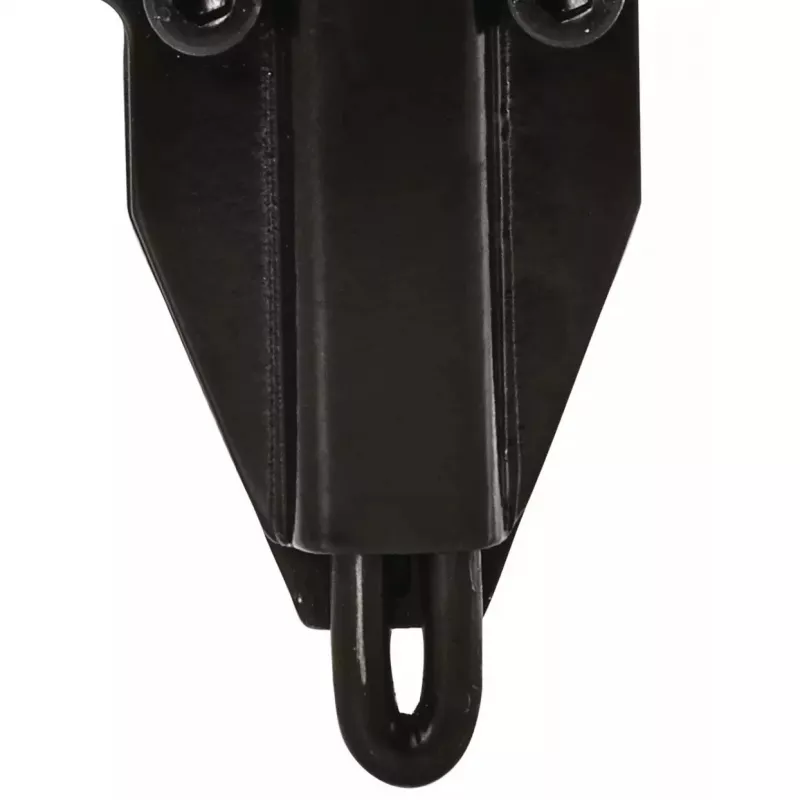

The Einhell TC-PN 50 pneumatic nailer is a 2-in-1 combination tool that functions as an air stapler and an air nailer for workshop, home and garage jobs. It accepts staples and nails of various lengths and comes with accessories and a practical transport and storage case. The non-slip handle and safety nose improve operational safety, while a fill level indicator and adjustable depth setting support precise work.

Advantages

The tool delivers reliable pneumatic performance when used with an air hose of at least 9 mm inner diameter. A safety nose prevents unintentional firing and a depth adjustment allows control of shot depth. The kit includes staples, nails, a small oil bottle, a nipple and hexagon keys, providing everything required for immediate use and maintenance.

Suitable for

• General repair and restoration work
• Carpentry joinery and light wood assembly
• Upholstery and fixing thin materials
• DIY projects in the home, workshop or garage

Key specifications

• Brand: EINHELL
• Model: TC-PN 50 (MPN 4137790, EAN 4006825641387)
• Tool type: Pneumatic staple gun / nailer (2-in-1)
• Compatible fastener lengths: staples and nails up to 40 mm (staples from 5.7 mm to 40 mm)
• Required air hose inner diameter: ≥ 9 mm
• Dimensions (W × D × H): 328 × 81 × 302 mm
• Color: Black / Red

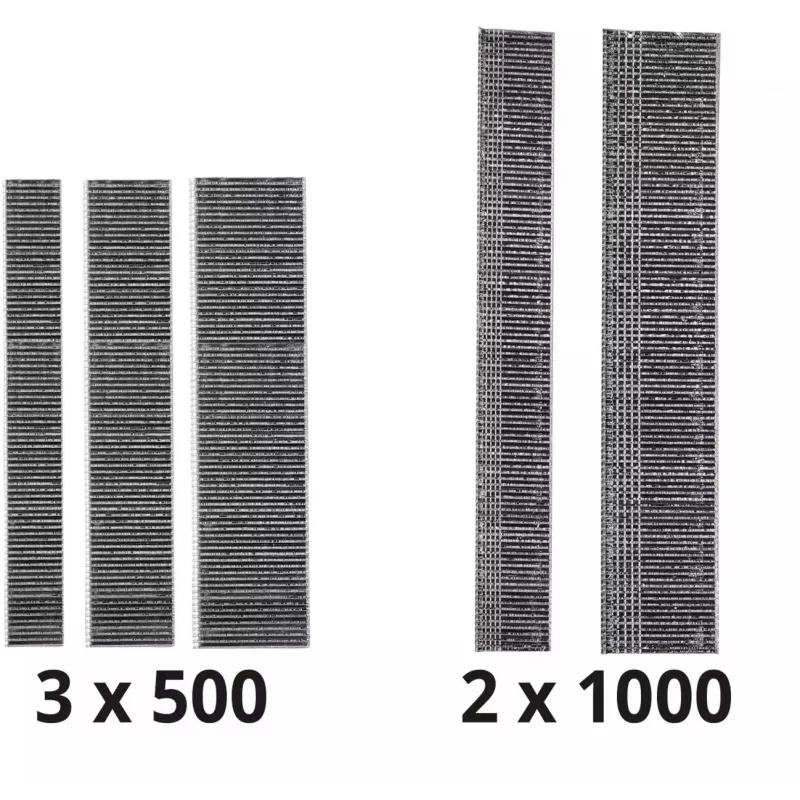

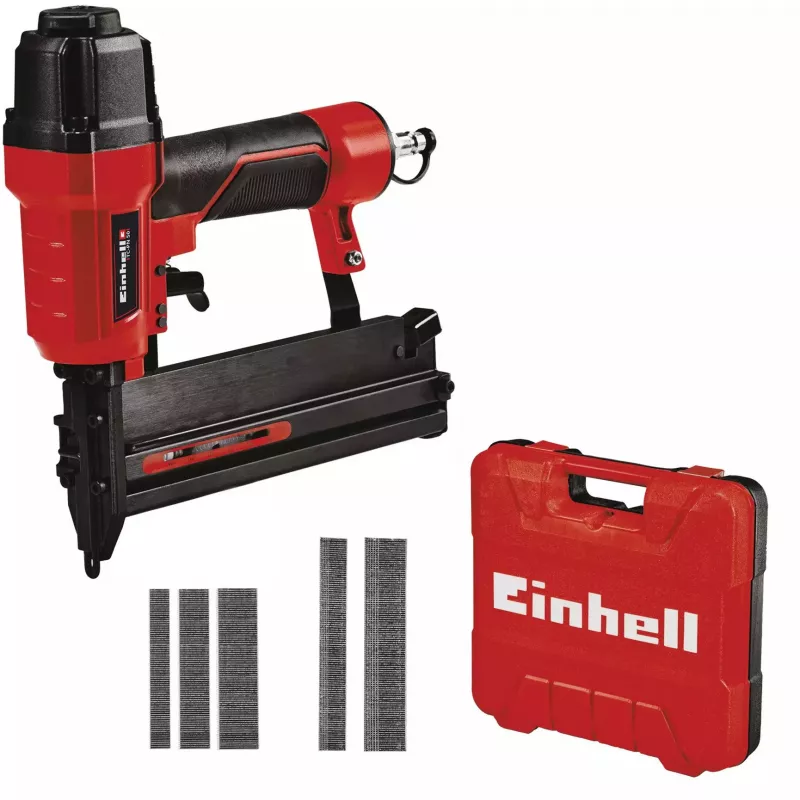

• Contents: 500 staples (16/25/40 mm), 1,000 nails (25/40 mm), small oil bottle, nipple, 2 hex keys, transport/storage case

How to use

Connect the pneumatic nailer to a compressor using an air hose with an inner diameter of at least 9 mm and ensure the nipple is securely attached. Load the magazine with compatible staples or nails according to the straight magazine orientation, check the fill level indicator, and set the desired depth using the depth adjuster. Hold the non-slip handle firmly, press the safety nose against the workpiece and trigger the tool. Perform routine lubrication with the supplied small oil bottle and tighten or adjust fittings with the included hex keys as needed.

Recommendations

Use appropriate eye and hearing protection when operating the pneumatic nailer. Verify compatibility of staple/nail lengths before loading and keep the safety nose clean and unobstructed. Store the tool and consumables in the supplied case to protect components and accessories.
