Gruppo di continuità Green Cell UPS05 — Line-Interactive 2 kVA / 1200 W, 5 prese Type-F, LCD, USB, RJ-45

The Green Cell UPS05 is a Line-Interactive uninterruptible power supply designed to provide short-term backup power and surge protection for home and office electronics. With 3 kVA (1200 W) output capacity, a 12 V 9 Ah battery and five AC outlets, this tower UPS offers compact, reliable support to preserve data and allow safe shutdown of connected devices during mains interruptions. The unit includes an LCD display for monitoring key operating parameters and uses a modified sine wave output.

Advantages

The UPS05 combines line-interactive topology with an automatic voltage regulator to stabilise input voltage and protect against fluctuations as well as outages. It uses high-quality AGM battery cells with a service life of up to 5 years under typical conditions and provides fast transfer times for immediate backup. Its compact tower form factor and clear LCD make installation and everyday monitoring straightforward.

Suitable for

• Home PCs and workstations
• Small office equipment (routers, switches, VoIP phones)
• External drives and NAS devices for safe data shutdown
• Peripherals and devices requiring short-term power hold-up

Key specifications

• Output power capacity: 3 kVA
• Output power: 1200 W
• Battery: 12 V, 9 Ah (AGM)

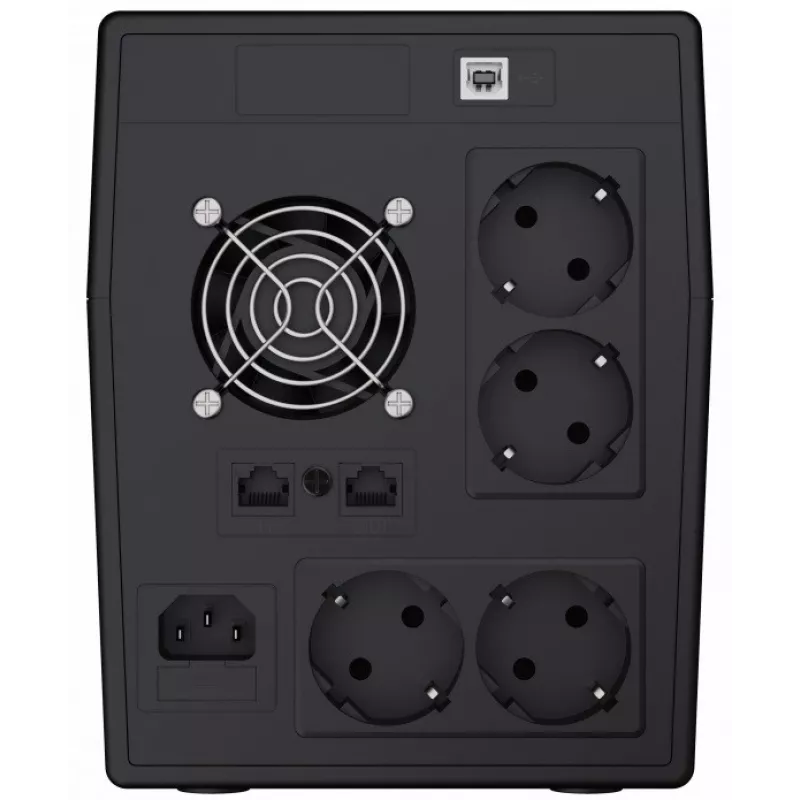

• AC outlets: 5
• Battery recharge time: 6 hours
• Topology: Line-Interactive (AVR)
• Output waveform: Modified sine wave
• Form factor: Tower
• Dimensions (W×D×H): 380 × 158 × 198 mm
• Weight: 11.5 kg
• Colour: Black

How to use

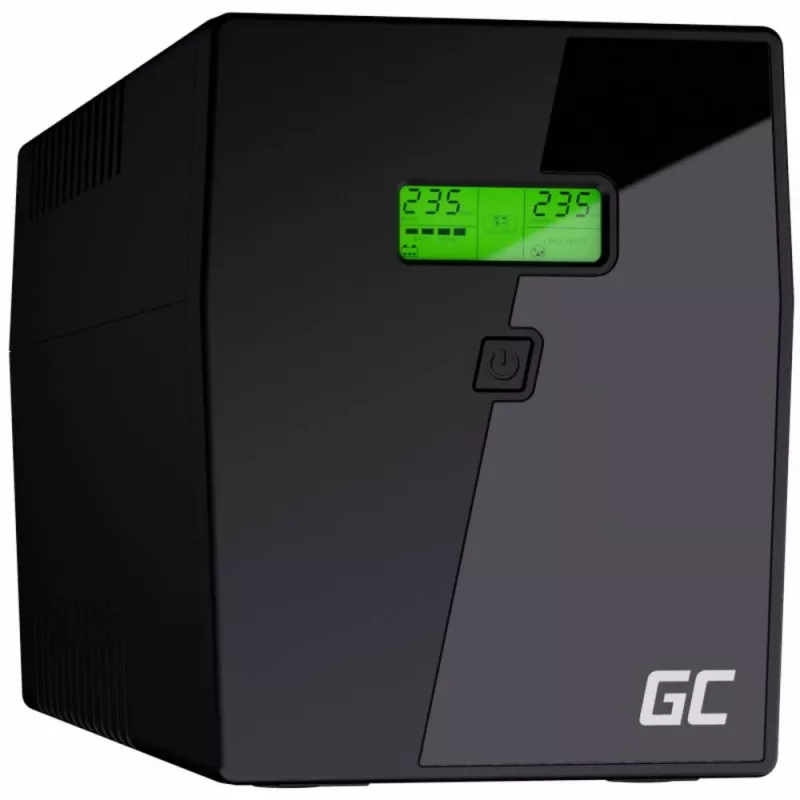

Connect the UPS05 to mains power so the internal battery can charge. Plug required devices into the five AC outlets and switch the UPS on. The unit will provide voltage stabilisation while mains power is present and automatically switch to battery supply in the event of a power loss. Monitor the LCD display to view input/output voltages, load, battery capacity and temperature. Use the dedicated Green Cell management software for real-time monitoring, automatic shutdown configuration and notifications.

Recommendations

For best long-term performance, allow the battery to fully charge after initial installation, avoid exposing the UPS to extreme temperatures, and test the battery operation periodically. Configure the software to perform an automatic, orderly shutdown of critical systems when battery level reaches a predefined threshold.
