GRENTON Modulo di Uscita a Relè (2 Uscite) Montaggio su Guida DIN TF-BUS

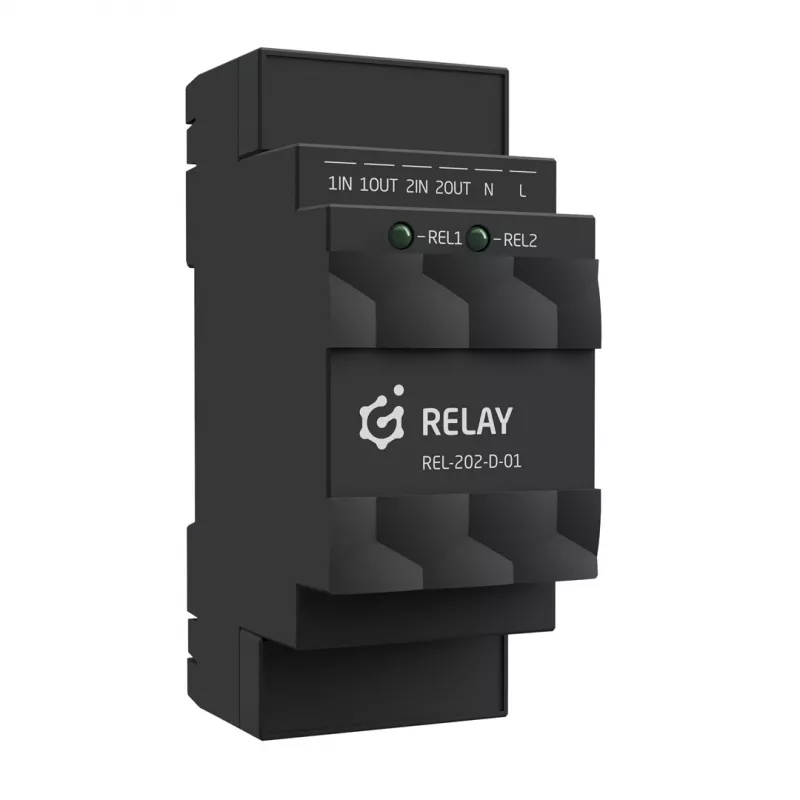

The GRENTON REL-202-D-01 Relay Output Module is a high-quality DIN rail mounting device designed for the Grenton Smart Home System. It features two potential-free relay outputs, each capable of switching up to 16 A at 250 V AC or 30 V DC, making it ideal for controlling lighting, motors, and other electrical loads. The module communicates via the TF-BUS protocol and is powered by 24 V DC with a low power consumption of less than 1 W. Its compact 2 DIN module width (approx. 35 mm) saves space in electrical cabinets, and the screw terminals ensure secure wiring. The housing is made of self-extinguishing plastic, and the device is rated IP20 for indoor use. Certified CE and RoHS.

Advantages

Reliable on/off switching with high current capacity; easy DIN rail installation; low power consumption; compact design; compatible with Grenton ecosystem.

Suitable for

• Smart home automation systems
• Lighting control
• Motor and appliance switching
• Industrial and residential DIN rail panels

Key specifications

• Communication Protocol: TF-BUS
• Number of Outputs: 2
• Output Type: Relay (potential-free contacts)
• Mounting Type: DIN Rail
• Maximum Switching Current (per output): 16 A
• Maximum Switching Voltage (AC): 250 V AC
• Maximum Switching Voltage (DC): 30 V DC
• Power Supply Voltage: 24 V DC
• Power Consumption: < 1 W
• Operating Temperature Range: -10°C to +50°C
• Relative Humidity: 5% to 95% (non-condensing)
• Protection Class: IP20
• Module Width: 2 DIN modules (approx. 35 mm)
• Terminal Type: Screw terminals
• Housing Material: Self-extinguishing plastic
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with Grenton controllers and power supplies. Ensure proper ventilation and avoid exposure to moisture.
