GRENTON Multisensor Panel - temperatura, umidità, pressione atmosferica, suono, luce, CO2, TVOC, IR/TF-Bus, vetro nero

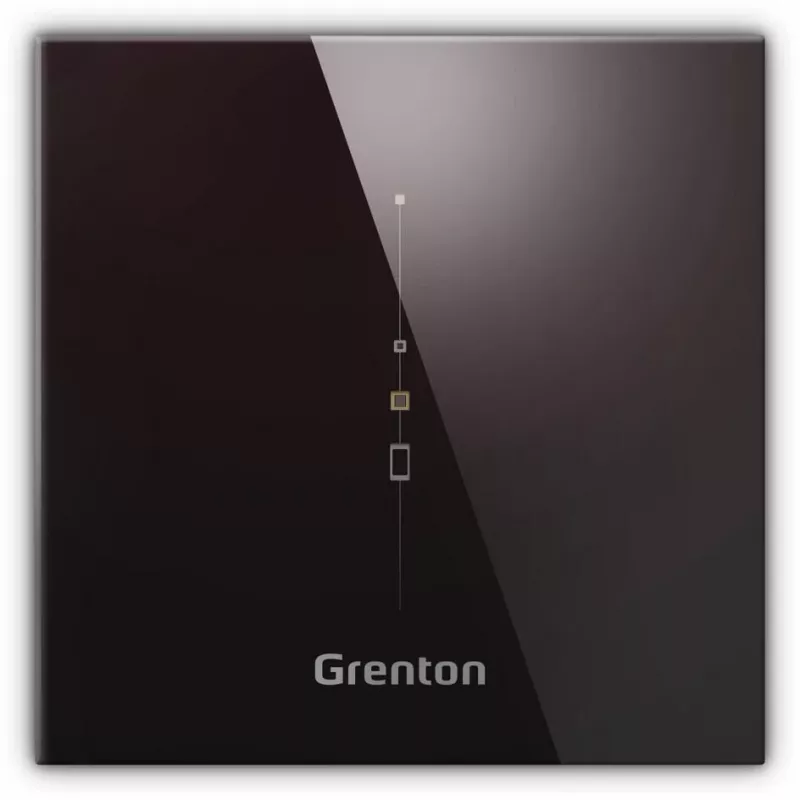

The GRENTON Multisensor Panel SEN-181-T-01 is a comprehensive environmental monitoring solution designed for smart building automation. It integrates eight sensors in a sleek black glass front panel, measuring temperature, humidity, atmospheric pressure, sound intensity, light intensity, CO2, TVOC, and IR/TF-Bus. Powered by Z-Wave Plus v2 (800 Series) technology, it offers reliable wireless communication with S2 security and SmartStart support. Ideal for residential and commercial spaces, this flush-mount device provides real-time data for improved comfort and energy efficiency.

Advantages

All-in-one sensor panel reduces installation complexity and cost. High-precision measurements enable precise climate control and air quality management. Z-Wave Plus v2 ensures robust mesh networking and low power consumption. The black glass front blends seamlessly with modern interiors.

Suitable for

• Smart home automation systems
• Office and commercial building management
• HVAC optimization and energy saving
• Indoor air quality monitoring

Key specifications

• Sensor Types: Temperature, Humidity, Atmospheric Pressure, Sound Intensity, Light Intensity, CO2, TVOC
• Connectivity: Z-Wave Plus v2 (800 Series)
• Power Supply: 110-230V AC, 50/60Hz (Mains Powered)
• Installation: In-wall / Flush-mount
• Color: Black Glass
• Temperature Range: -10 to 60°C (14 to 140°F)
• Humidity Range: 0-100% RH
• CO2 Range: 400-5000 ppm
• TVOC Range: 0-60000 ppb
• Light Intensity Range: 0-64000 lux
• Sound Intensity Range: 30-120 dB
• Atmospheric Pressure Range: 300-1100 hPa
• Operating Temperature: 0-40°C (32-104°F)
• Wireless Range: Up to 40m indoors, 50m outdoors
• Security: S2 Security, SmartStart
• Processor: ARM Cortex-M4
• Compliance: CE, RoHS

Recommendations

For optimal performance, install in a central location away from direct sunlight, drafts, and heat sources. Pair with a Z-Wave gateway for full functionality.
