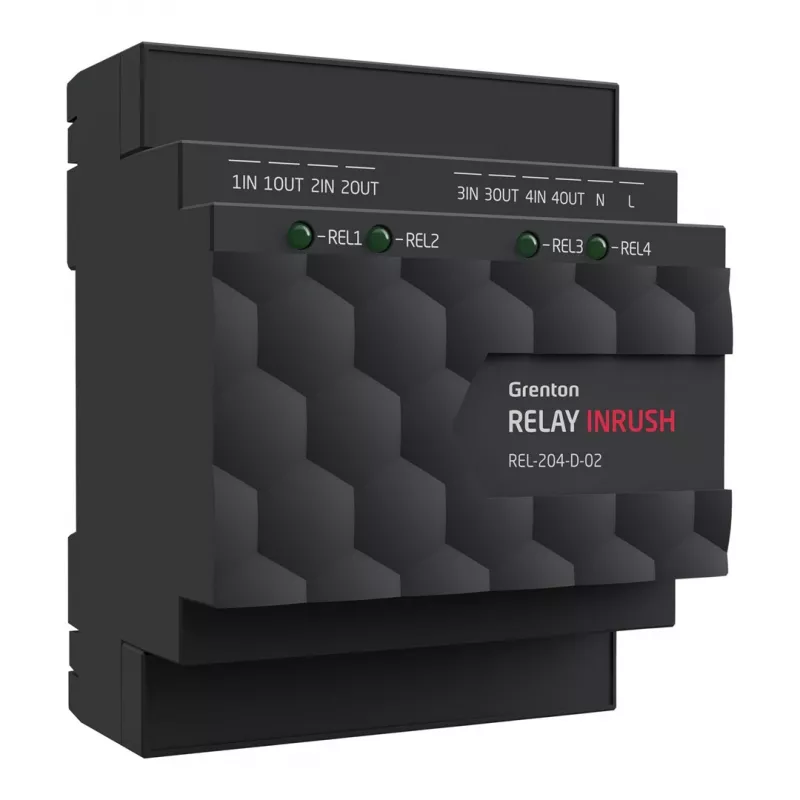

GRENTON Modulo di Uscita a Relè (4 Uscite) INRUSH - Montaggio su Guida DIN, Bus TF

The GRENTON Relay Output Module (4 Outputs) INRUSH is a high-performance DIN rail mounting device designed for professional building automation. Featuring four potential-free relay outputs with inrush current capability up to 80 A, this module is ideal for controlling resistive loads such as lighting, heating, and motorized devices. It communicates via the Grenton TF-Bus protocol and is powered directly from the bus, ensuring easy integration into existing Grenton systems.

Advantages

This relay module offers bistable (latching) relays that maintain their state even in case of power loss, enhancing reliability. The inrush current capability allows switching of loads with high starting currents without damage. LED indicators for each relay provide clear status feedback, and the compact 3-module DIN design saves space in the electrical cabinet.

Suitable for

• Building automation systems
• Smart home installations
• Industrial control panels
• Lighting and heating control

Key specifications

• Number of Outputs: 4
• Output Type: Potential-free Relay (NO)
• Max Switching Current per Output: 16 A (resistive load)
• Max Switching Voltage: 250 V AC / 30 V DC
• Inrush Current Capability: Up to 80 A for 20 ms
• Communication Protocol: Grenton TF-Bus
• Mounting Type: DIN Rail (TS-35)
• Power Supply: 24 V DC (via TF-Bus)
• Max Power Consumption: 1.5 W
• Relay Type: Bistable (Latching)
• Operating Temperature: -10°C to +50°C
• Protection Rating: IP20
• Number of DIN Modules: 3
• Terminal Type: Screw Terminals
• Galvanic Isolation: Yes
• LED Indicators: Yes, for each relay status

Recommendations

For optimal performance, use this module with Grenton controllers and ensure proper bus termination. Suitable for dry indoor environments only. Always adhere to local electrical codes during installation.
