Grothe KKO 3736A pulsante campanello da parete, 1 NO, bianco 64063

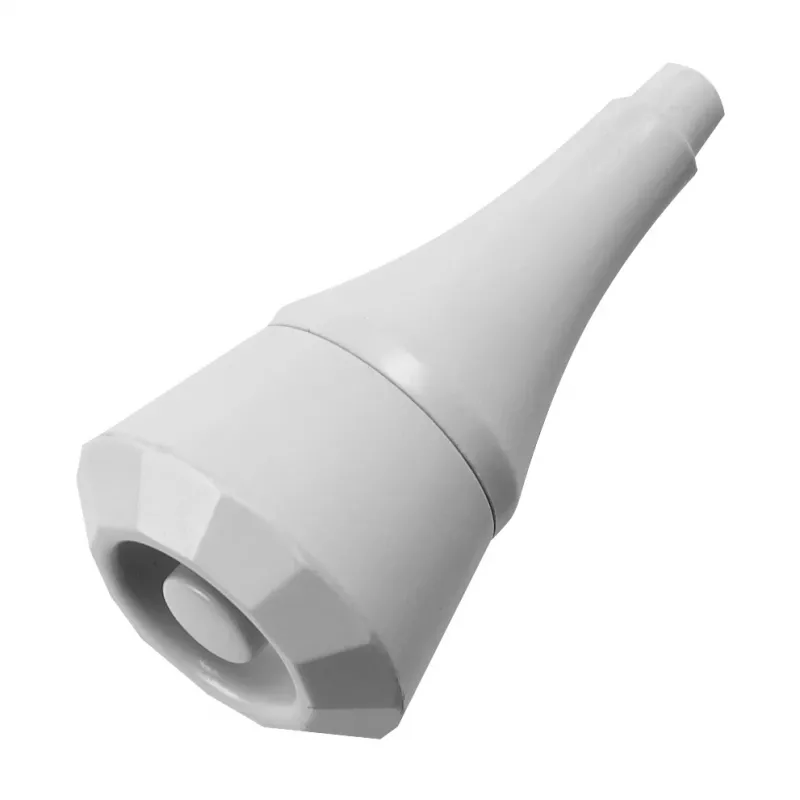

In many installations, a fixed wall-mounted bell push is not practical. The Grothe KKO 3736A pendant bell push button solves this by providing a hanging push button that can be positioned exactly where it is needed, such as next to a bed, desk, or counter. Its momentary action and normally open contact make it suitable for triggering bell systems, door openers, or similar low-voltage circuits.

Who is it for

This pendant push button is intended for electricians, installers, and end users who need a reliable, ergonomic switch for bell or door opener applications in residential, commercial, or industrial settings. It is particularly useful where wall mounting is not possible or where the switch must be within easy reach from a seated or lying position.

Main features

• Pendant design with hanging mounting for flexible placement
• Momentary push button with 1 normally open (NO) contact
• Switching capacity up to 42 V AC/DC and 1 A
• Plastic housing in white, compact and ergonomic
• Screw terminals with strain relief for secure wiring
• Operating temperature range from -20 °C to +50 °C

Specifications

• Product type: Pendant bell push button
• Switch function: Momentary
• Contact configuration: 1 NO
• Max. switching voltage: 42 V AC/DC
• Max. switching current: 1 A
• Housing material: Plastic
• Colour: White
• Connection type: Screw terminals
• Cable entry: With strain relief
• Protection class: IP20
• Operating temperature: -20 to +50 °C
• Number of buttons: 1
• Mounting type: Hanging / pendant

Tips

Ensure the connected load does not exceed the rated switching capacity. For outdoor or damp environments, install the push button in a suitable enclosure, as its IP20 rating is intended for indoor use only.
