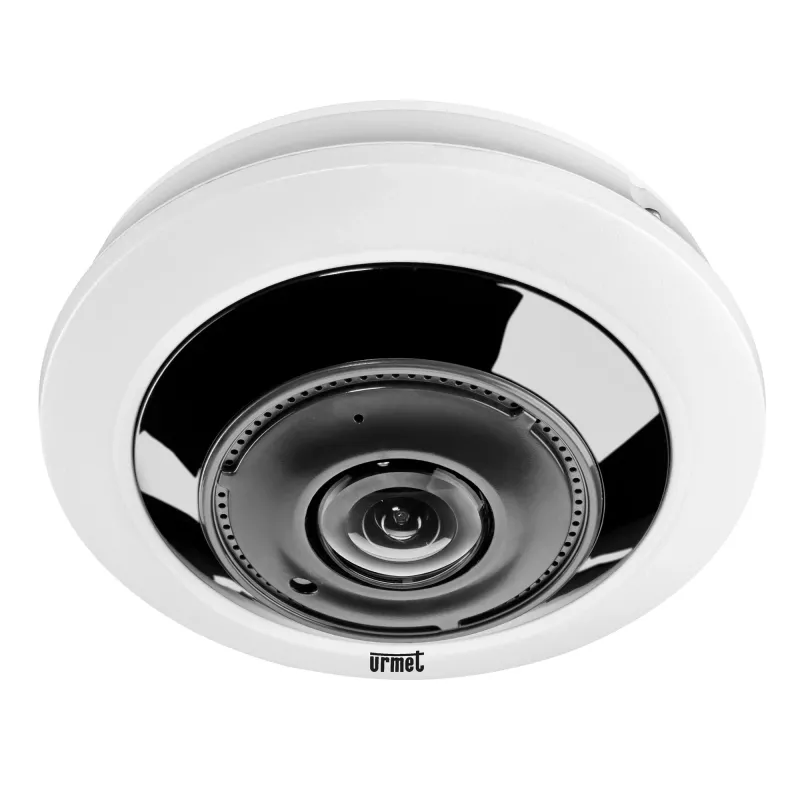

Grothe telecamera fisheye 12MPX PANORAMA VK 1099/680 (1099/680)

Capture a full 360° panoramic view with the Grothe Fisheye Camera 12MPX PANORAMA VK 1099/680. Its 12-megapixel sensor delivers 4000 x 3000 resolution, ensuring every detail is recorded with clarity. The 1.29 mm fisheye lens provides a 180° vertical field of view, making it ideal for comprehensive surveillance in a single unit.

Overview

This camera is built around a 1/1.7" Progressive Scan CMOS sensor, paired with an IR-cut filter for automatic day/night switching. In low light, it sees down to 0.01 lux in colour, and 0 lux with IR illumination up to 10 meters. Video is compressed using H.265, H.264, or MJPEG, with a maximum frame rate of 20 fps at full resolution.

What stands out

• 12 MP resolution with 360° panoramic coverage
• Built-in microphone plus audio input and output
• MicroSD slot for local recording up to 128 GB
• IP54 weather resistance and IK10 vandal resistance
• Multiple de-warping modes: 1O, 1P, 2P, 4P, 1R, 4R

Technical details

• Sensor: 1/1.7" Progressive Scan CMOS, 12 MP
• Lens: 1.29 mm fisheye, 360° horizontal / 180° vertical FoV
• Compression: H.265, H.264, MJPEG
• Frame rate: 20 fps @ 4000 x 3000
• Minimum illumination: 0.01 lux (colour), 0 lux with IR
• IR range: up to 10 m
• Audio: built-in mic, 1 input, 1 output
• Network: 1x RJ45 10/100 Mbps Ethernet
• Power: 12V DC, PoE (802.3af)
• Storage: MicroSD/SDHC/SDXC up to 128 GB
• Ingress protection: IP54
• Vandal resistance: IK10
• Operating temperature: -10°C to +50°C
• Mounting: ceiling, wall, desk

Our verdict

A robust fisheye camera for complete room coverage, with high resolution and flexible de-warping to suit any monitoring need.
