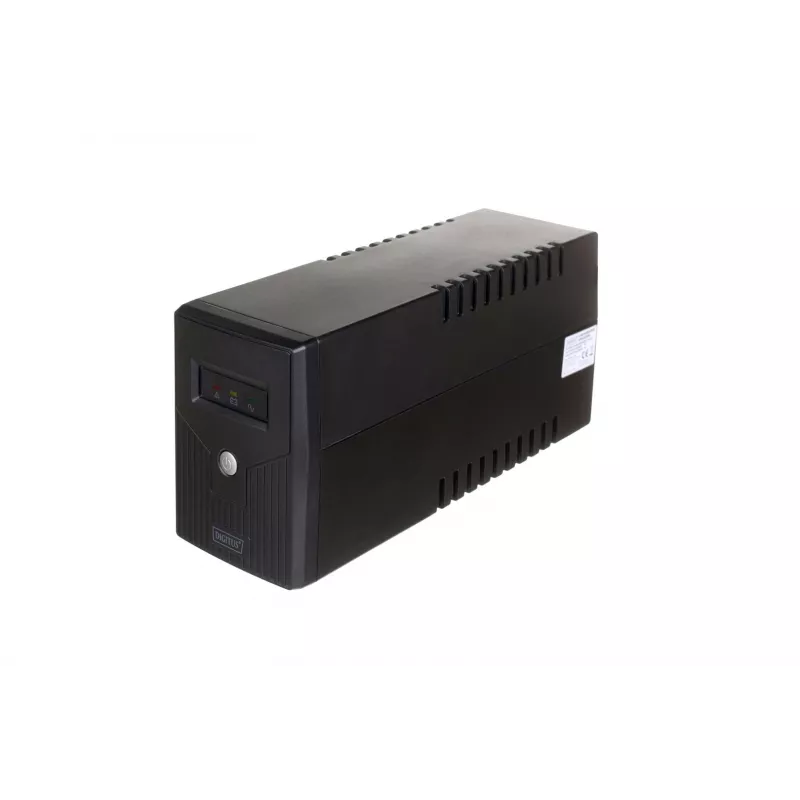

Gruppo di continuità DIGITUS Line-Interactive DN-170064-B 800 VA (480 W), AVR, LCD, tower, 2 uscite AC, tipo F

Uninterruptible Power Supply DIGITUS Line-Interactive DN-170064-B delivers 800 VA (480 W) output power with Automatic Voltage Regulation (AVR) and a pseudo-sine waveform to provide stable 230 V power for connected devices. The UPS is a tower unit with an LCD and LED indicators, two Type F AC outlets and an internal 12 V/7 Ah battery. It features a 2 ms transfer time, cold start capability and auto-restart, and offers protection against surges and battery discharge while providing audible alarms for fault, low battery, overload and when running on battery.

Advantages

The line-interactive topology with AVR helps maintain output voltage within acceptable limits during mains fluctuations. Short transfer time and cold start support continuity for sensitive equipment. Integrated surge protection and audible alarm modes enhance equipment safety and user awareness. Compact tower design with LCD and LEDs gives clear status information while two AC outlets allow direct connection of essential devices.

Suitable for

• Home office computers and peripherals
• Point-of-sale (POS) terminals and small retail systems
• Network devices such as routers and switches
• Small servers and external drives requiring short-term backup

Key specifications

• Output power capacity: 0.8 kVA (480 W)
• Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
• Input voltage range: 162–290 V (nominal 230 V)
• Output voltage regulation: ±10%
• Transfer time (mains to battery): 2 ms
• Waveform: Pseudo sine
• Output frequency: 50 Hz
• Input frequency: 50 Hz
• Battery: 12 V, 7 Ah (internal), single battery
• Battery recharge time (to 90%): 6 h
• Cold start: Yes
• Auto-restart: Yes
• Surge protection: Yes; surge protection for modem
• Audible alarm modes: on battery, fault, low battery, overload
• Noise level: 40 dB

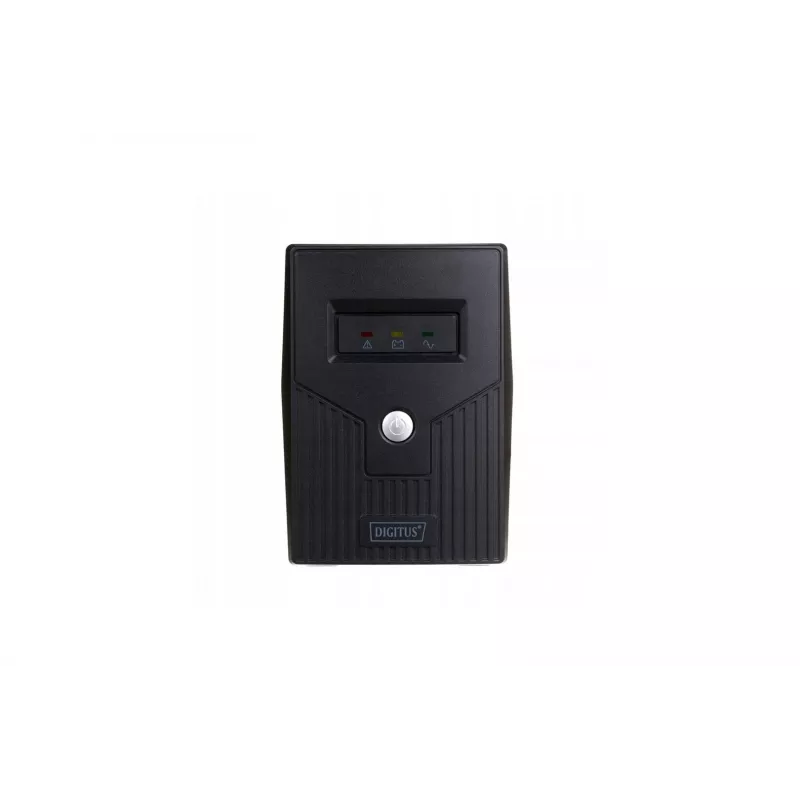

• Form factor and indicators: Tower, LCD and LED indicators
• Dimensions (H×W×D): 142 × 101 × 298 mm
• Weight: 4.35 kg

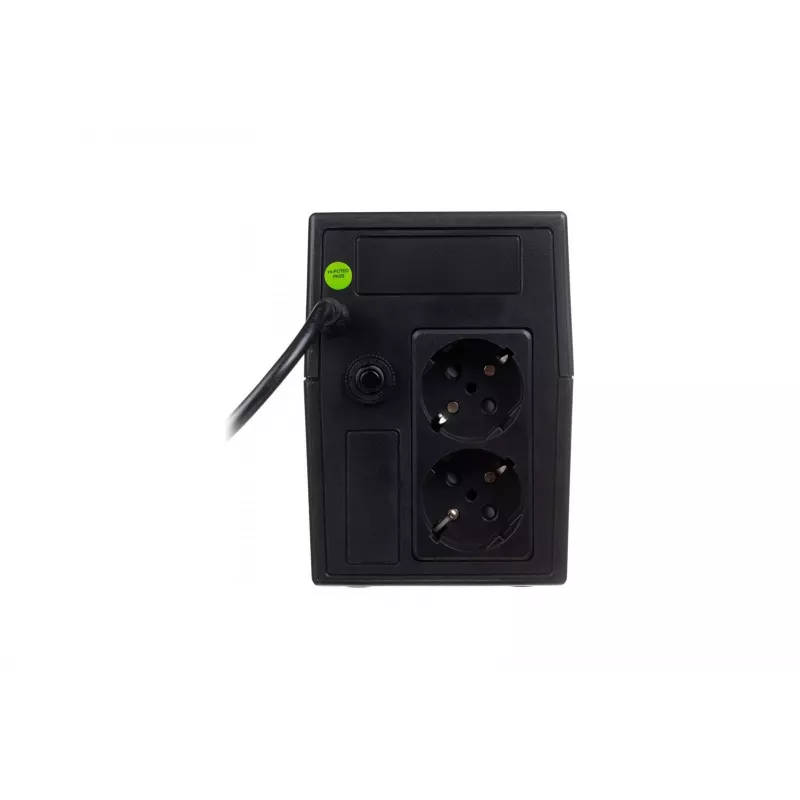

• AC outlets: 2 (Type F)

How to use

Place the UPS on a stable, level surface in a well-ventilated area away from heat sources and water. Connect the UPS to the mains using the Type F power plug and plug required equipment into the two AC outlets. Turn on the UPS and verify status using the LCD and LED indicators. The unit will provide automatic voltage regulation during mains fluctuations and switch to battery power within 2 ms if mains fail. After a full discharge, allow the internal battery to recharge; typical recharge time to 90% is about 6 hours.

Recommendations

Keep the UPS away from sources of fire and water. For reliable backup, connect only essential devices within the unit's 480 W output limit and ensure regular battery checks and timely replacement according to usage and battery condition.
