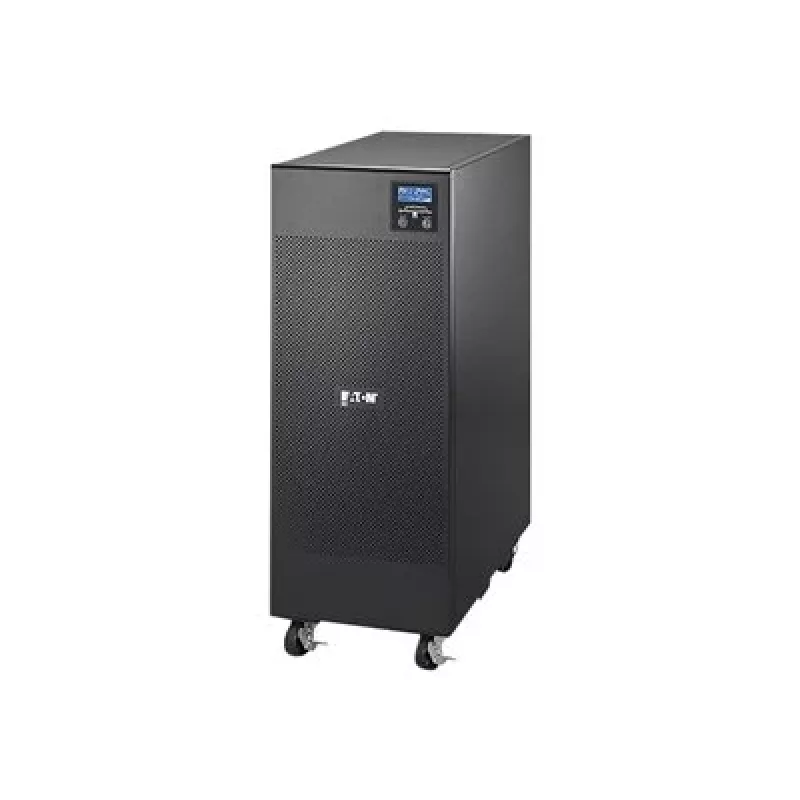

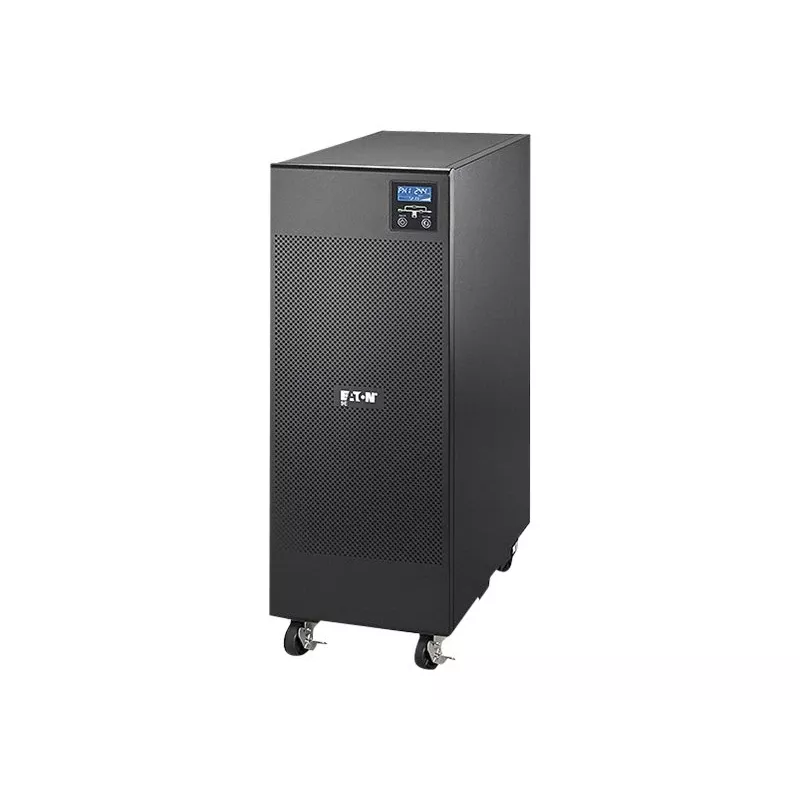

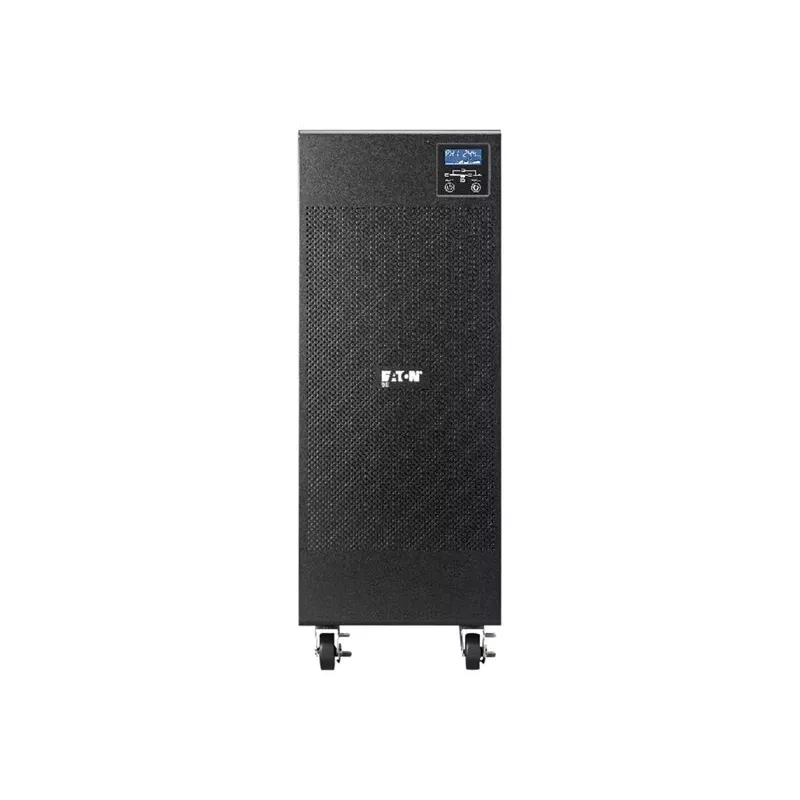

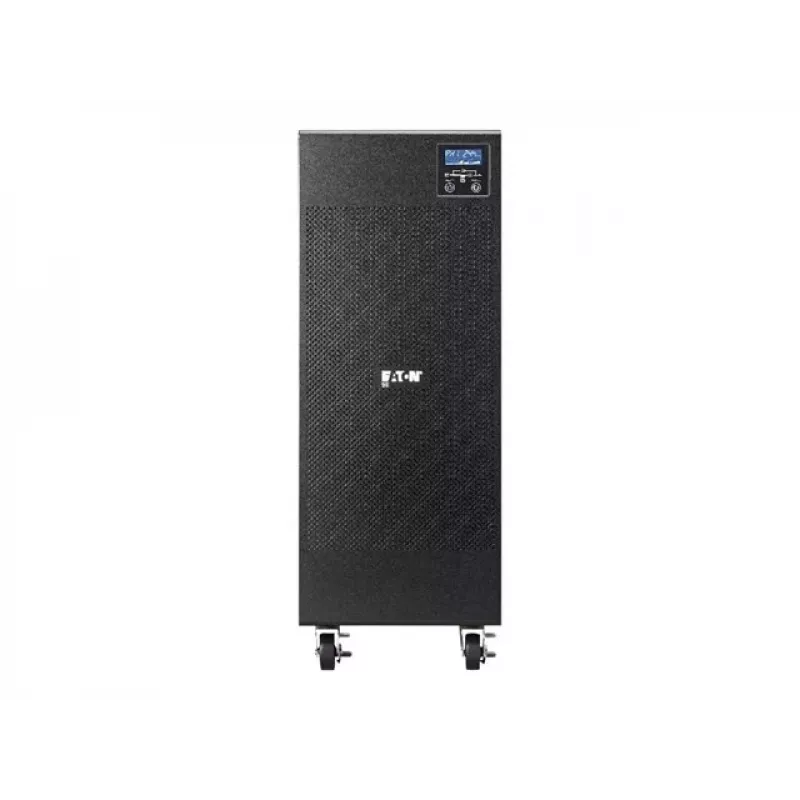

Eaton 9E 10000i UPS online a doppia conversione, 10 kVA, 8 kW, Tower

The Eaton 9E 10000i is an online double-conversion UPS with a capacity of 10 kVA / 8 kW, housed in a tower form factor. It features an internal and maintenance bypass, an LCD interface, and USB and serial ports. The UPS supports both 1:1 and 3:1 configurations and includes a slot for an optional communication card.

Key features

• Online double-conversion (Online) topology
• Internal and maintenance bypass
• LCD interface
• USB and serial ports
• Power management software compatible with virtual environment
• Slot for optional communication card
• Optional external battery modules (up to 4)
• CE certified
• Safety certification provided by external laboratory (TUV)
• Both 1:1 and 3:1 available (combo)

Specifications

• Brand: Eaton
• MPN: 9E10KI
• Output power capacity: 10 kVA / 8000 W
• Input voltage: AC 220/230/240 V
• Input operation voltage (min): 176 V
• Input operation voltage (max): 276 V
• Input frequency: 45/66 Hz
• Maximum current: 137 A
• Output voltage: AC 220/230/240 V ± 2%
• Input connectors: Hardwire
• Output connectors: 1 x hardwire
• AC outlet types: Terminal
• Run time (up to): 15 min at half load
• Networking: RS-232, USB
• Form factor: Tower
• Colour: Black
• Operating temperature (T-T): 0 - 40 °C
• Dimensions (WxDxH): 26.24 cm x 61.29 cm x 70.85 cm
• Weight: 85.4 kg
