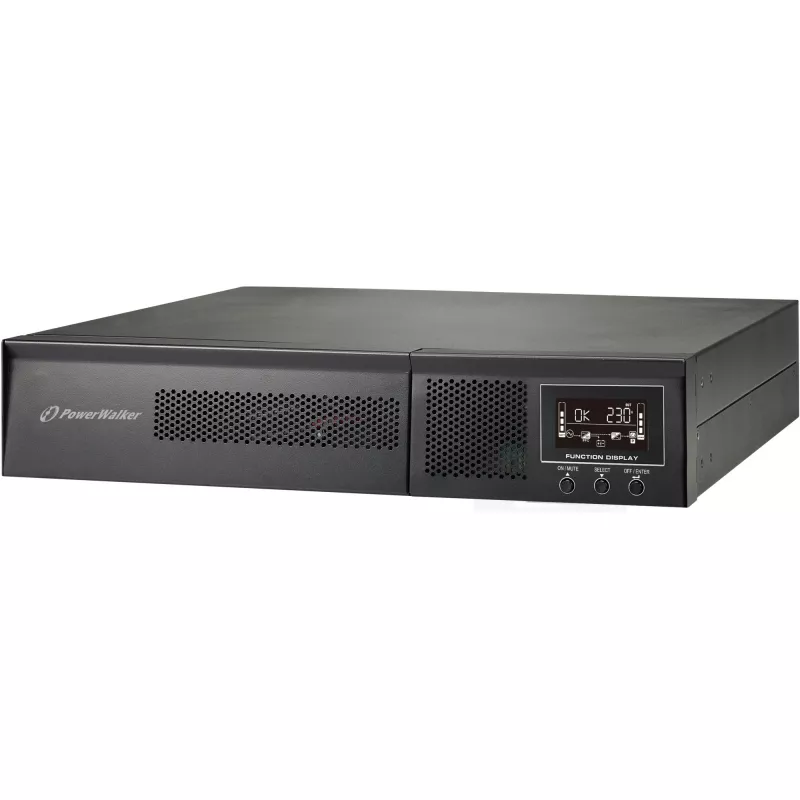

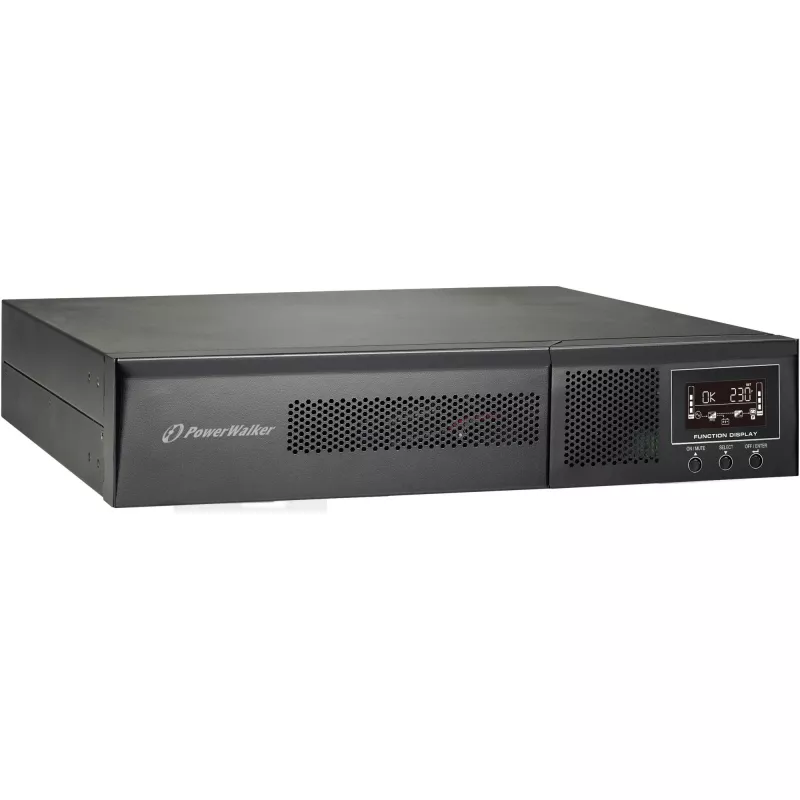

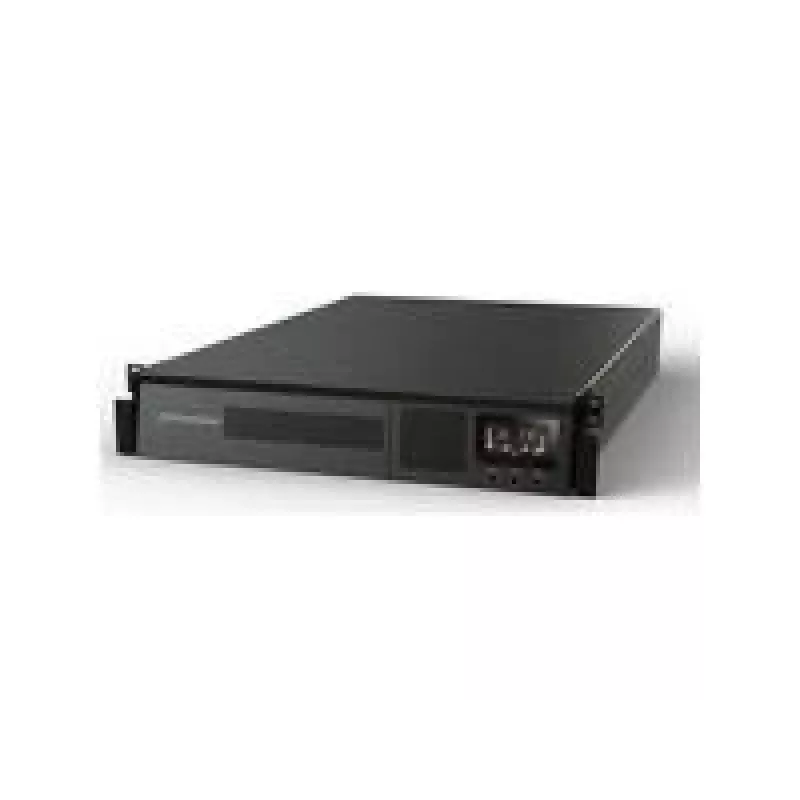

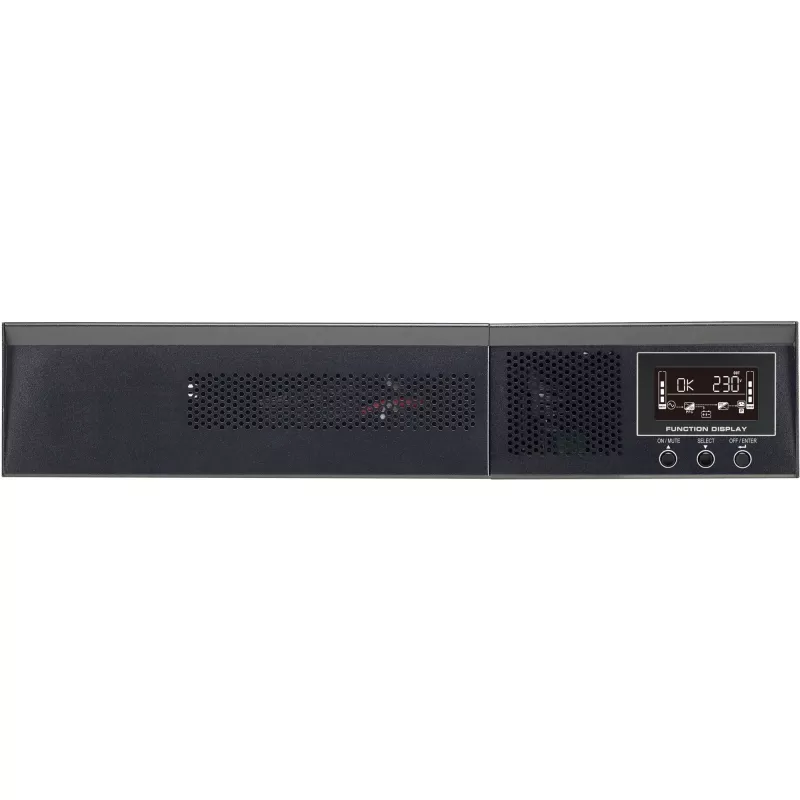

Gruppo di continuità PowerWalker VFI 1000 RMG PF1

The PowerWalker VFI 1000 RMG PF1 is a 1 kVA / 1000 W double-conversion online UPS designed for commercial and professional environments. It provides a unity power factor (PF = 1.0), wide input voltage and frequency ranges for unstable networks, and generator compatibility. The unit is rackmountable in a 19" system using 2U of space and can also be deployed as a tower. It includes a 12 V, 7 Ah battery that delivers an estimated 4.5 minutes of backup at full load and comes with C13/C14 couplers and supplied input, output and USB cables.

Advantages

The UPS delivers clean, continuous power through double-conversion online topology and supports sensitive equipment with a strong, adjustable charger for extended runtime when additional battery packs are connected. Local monitoring is available via an integrated LCD panel and remote management is supported through PowerWalker ViewPower software. Its slim 2U rack design saves space in server racks and the device includes both rackmount and tower installation options.

Suitable for

• Server racks and network equipment in small to medium businesses
• Workstations and point-of-sale systems requiring clean power
• Telecommunications and network closets with unstable mains or generator use

Key specifications

• Output power: 1000 W
• Apparent power (capacity): 1 kVA
• Battery: 12 V, 7 Ah (typical backup ≈ 4.5 min at full load)
• Form factor: 2U rackmount (can be used as tower)
• Interfaces and ports: USB 2.0 (1 port)

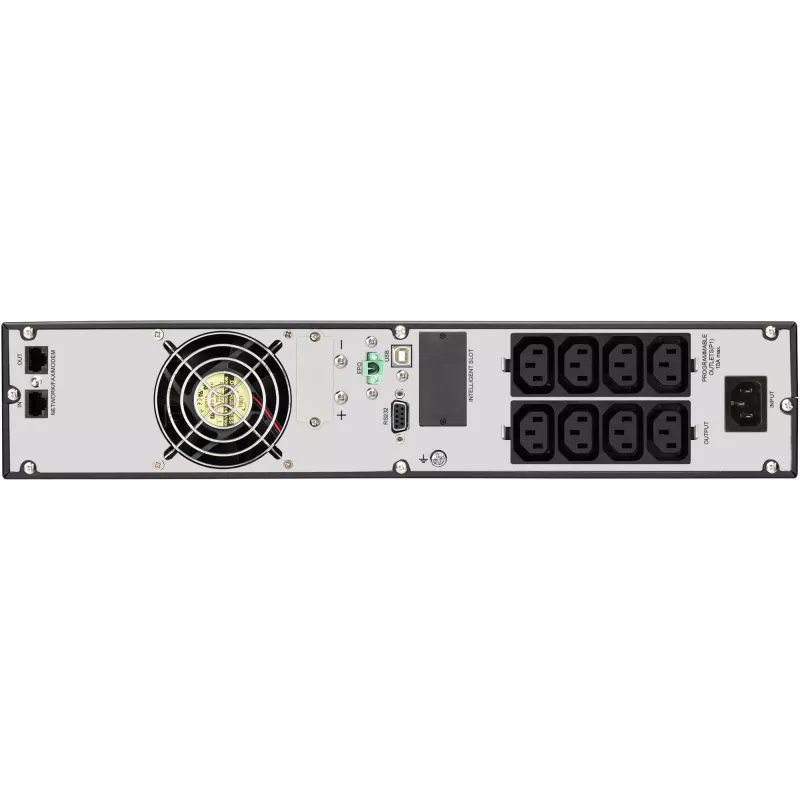

• AC outlets: C13 / C14 couplers
• Weight: 14.1 kg
• Colour: Black

How to use

Install the UPS in a standard 19" rack using the supplied rackmount kit or place it on a stable surface in tower configuration. Connect the mains input using the provided input cable and plug protected equipment into the C13/C14 outlets with the supplied output cable. For remote monitoring connect the USB cable to a management PC and install PowerWalker ViewPower software. If longer autonomy is needed, install compatible external battery packs and configure the charger current as required per the user manual.

Recommendations

Place the UPS in a well-ventilated location, avoid direct heat sources, and perform periodic battery checks. Use the LCD panel for local status and alerts, and configure ViewPower for automated shutdown and logging to protect connected equipment during extended outages.
