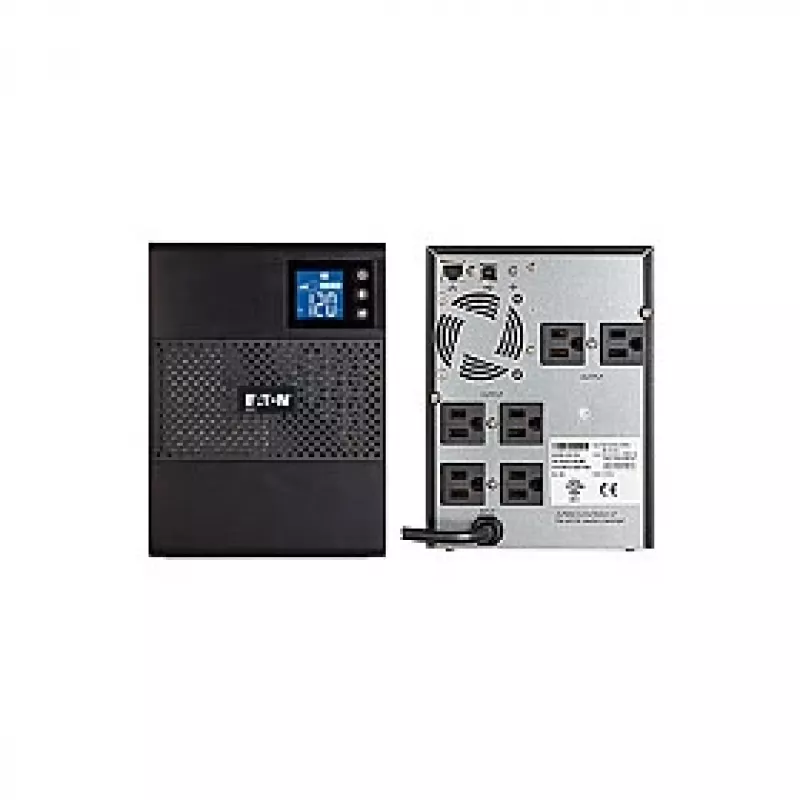

Gruppo di continuità UPS Eaton 5SC750

The Uninterruptible Power Supply UPS Eaton 5SC750 provides dependable power protection for small business servers, storage and network equipment. With 0.75 kVA (525 W) output capacity, sealed lead‑acid battery and a compact tower design, the 5SC750 delivers pure sinewave output and voltage regulation to protect sensitive devices and extend runtime during outages.

Advantages

The Eaton 5SC750 offers pure sinewave output for compatibility with sensitive electronics, buck and boost operation to correct a wide range of input voltage variations without using batteries, and an LCD interface that shows UPS status and allows configuration of output voltage, audible alarm and input sensitivity. It includes six NEMA 5-15R outlets, a 1.8 m power cable and is certified to IEC 62040-2:2006.

Suitable for

Key specifications

How to use

Install the Eaton 5SC750 on a flat, ventilated surface near the equipment to be protected. Connect the UPS to a grounded AC outlet using the supplied cable, then plug equipment into the six NEMA 5-15R outlets. Use the LCD interface to view status and configure output voltage, audible alarm and input sensitivity. For networked environments, install Eaton Intelligent Power Manager software to monitor UPS status and manage graceful shutdowns.

Recommendations

The UPS is intended for indoor use in temperature-controlled environments; avoid exposure to moisture and excessive dust. Periodically test the battery and replace it according to manufacturer guidance. Do not exceed the rated 525 W load to ensure expected backup times.
