Guaina intrecciata DeLOCK 20804 10 m x 12 mm bianco

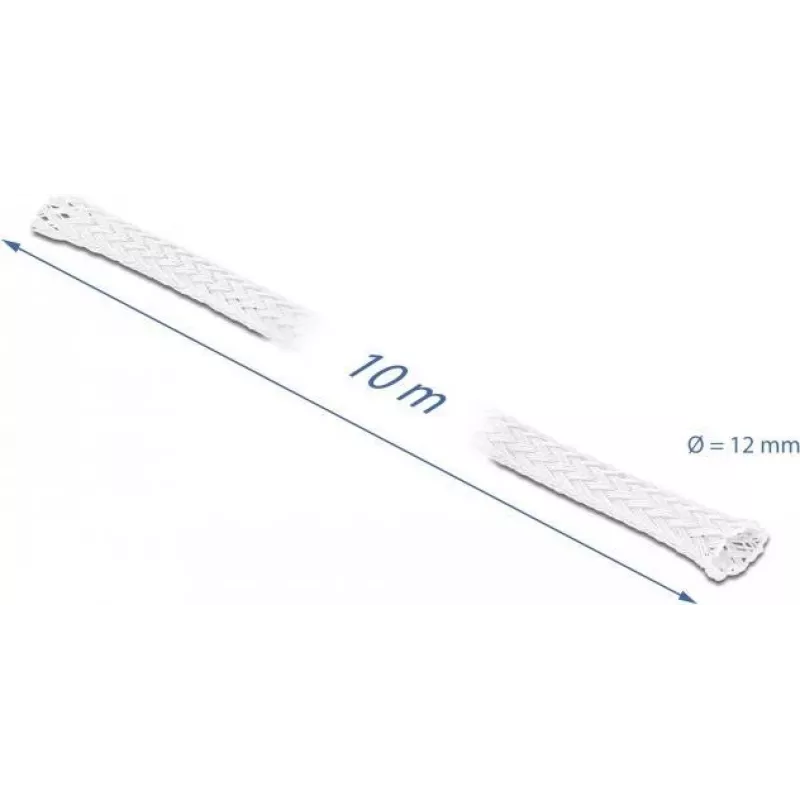

The Braided Sleeve DeLOCK 20804 is a stretchable polyester sleeve measuring 10 m in length and 12 mm in diameter, available in white. It is designed to bundle and protect exposed cables, wires and tubes from dirt and mechanical wear while remaining reusable and easy to trim to the required length.

Advantages

The sleeve is highly stretchable, allowing it to accommodate several cables of varying diameters. Constructed from abrasion- and heat-resistant polyester, it performs reliably in temperature ranges from -40 °C to 125 °C. The product is reusable: cables and tubes can be added or removed multiple times, and the sleeve can be cut to size using a hot cutting tool to seal the cut edge.

Suitable for

• Cable management in workstations and server cabinets
• Protection of wiring in machinery and equipment
• Bundling automotive and industrial cables
• Organising home entertainment and AV cables

Key specifications

• Brand: DELOCK
• Model / MPN: 20804
• Length: 10 m
• Diameter: 12 mm
• Material: Polyester
• Colour: White
• Temperature range: -40 °C to 125 °C
• EAN: 4043619208043

How to use

Slide the braided sleeve over the cables or insert cables into the sleeve by feeding them through the open end. Stretch the sleeve as needed to fit multiple cables and position it to cover the exposed sections. If a shorter length is required, cut the sleeve to size and apply a hot cutting tool to the cut edge to prevent fraying and seal the end.

Recommendations

Use the sleeve within the specified temperature range and avoid prolonged exposure to direct flames or strong chemical agents. For best results when trimming, use a dedicated hot knife or soldering iron to cut and seal the sleeve edge.
