Guide di montaggio TS8 per telai 19 pollici 600x600 (4 pezzi) — Rittal

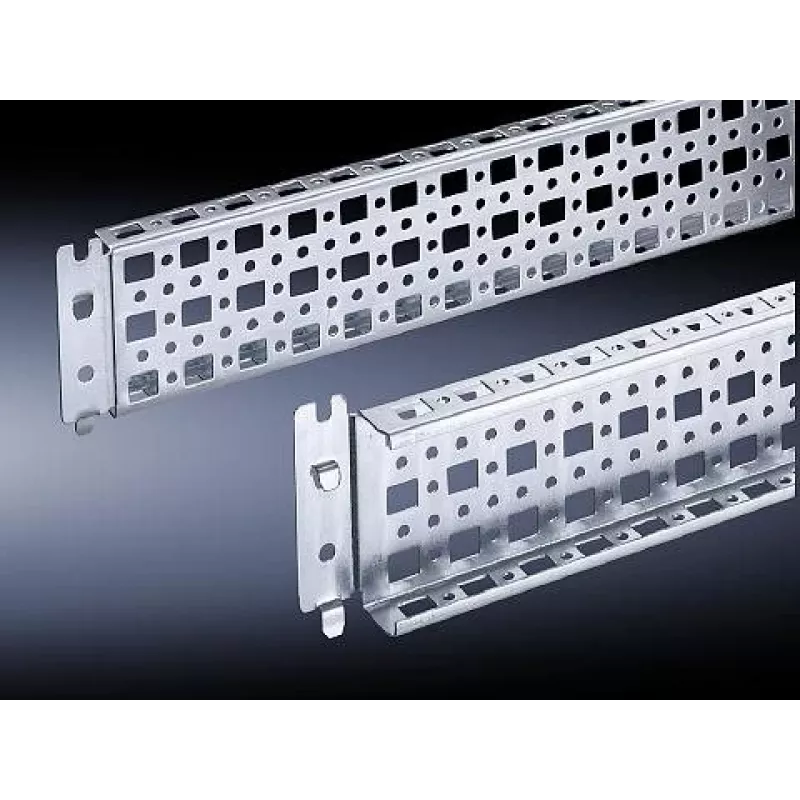

Rittal TS8 mounting rails for 19" frames designed to fit 600×600 mm cabinets. Supplied as a set of four grey vertical rails, this product provides structured support and alignment inside server, network and control enclosures. Rails allow mounting of 19" equipment such as rack-mounted servers, switches, patch panels and other modular components while preserving usable depth and load distribution within the cabinet.

Advantages

The TS8 rails offer a durable steel construction with a factory-applied finish for corrosion resistance and consistent appearance. Each rail is profiled for secure attachment of 19" mounting hardware and accessories, enabling repeatable alignment and straightforward installation. Supplied as a set of four, the rails ensure stable vertical support and even load distribution for mounted equipment, helping to maintain cabinet ventilation and cable routing options.

Suitable for

Key specifications

How to use

Position the rails inside the cabinet at the appropriate mounting depth and secure them to the cabinet frame using compatible fasteners or clips. Align the rails to ensure consistent front-to-back spacing and level mounting. Attach 19" devices and accessories to the rails using standard rack screws or cage nuts as required by the equipment. Verify load distribution and clearances for ventilation and cabling before finalizing installation.

Recommendations

Confirm cabinet internal dimensions and mounting depth before purchase to ensure compatibility. Use appropriate rack hardware rated for the weight of installed equipment and distribute heavy items across multiple rails. Maintain clearance for airflow and cable management to preserve equipment cooling and accessibility.
