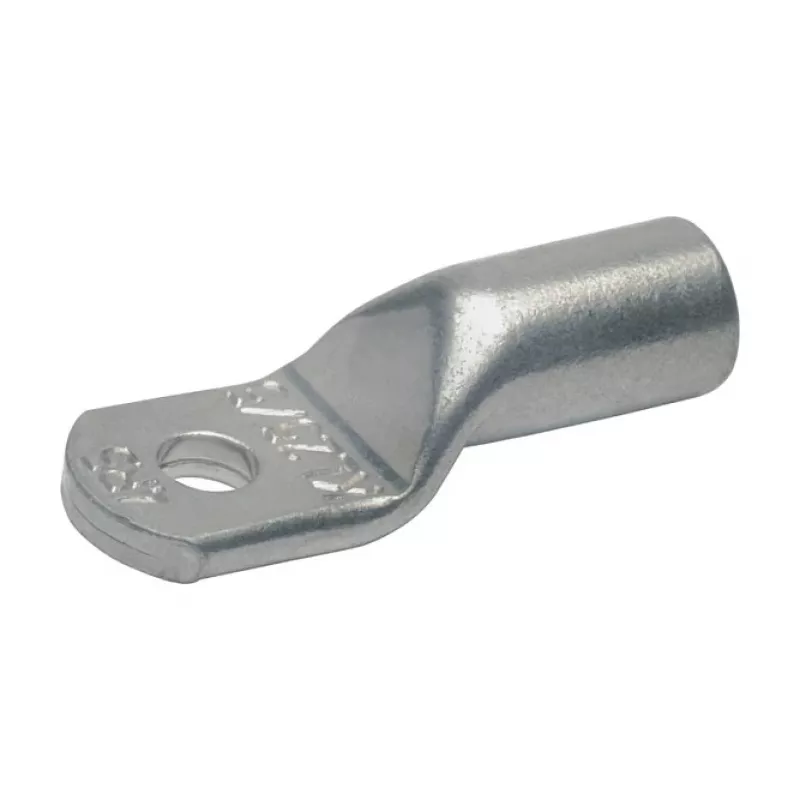

KLAU capocorda a anello in rame 3R10 16 mm² M10

Engineered for uncompromising electrical integrity, this KLAU copper crimp ring terminal delivers a 16 mm² connection with M10 bolt compatibility, tin-plated for superior corrosion resistance and conductivity across a -55°C to +150°C temperature range.

Overview

The KLAU 3R10 is a high-performance uninsulated ring terminal crafted from pure copper and finished with a tin plating. It is designed for crimping onto stranded copper conductors of 16 mm² cross-section, providing a secure, low-resistance connection for power and control wiring, as well as grounding applications. Compliant with DIN 46235, this terminal ensures reliable performance in demanding industrial environments.

What stands out

• High-conductivity copper body with tin plating for excellent corrosion resistance and long-term reliability.
• Precision 10.5 mm bolt hole fits M10 studs, ensuring a stable and secure mechanical and electrical connection.
• Inspection hole allows visual verification of proper conductor insertion before crimping.
• Wide operating temperature range from -55°C to +150°C suits harsh environments.
• Recommended hexagonal crimp profile guarantees optimal compression and pull-out strength.

Technical details

• Material: Copper (Cu), tin-plated
• Cable cross-section: 16 mm²
• Bolt hole diameter: 10.5 mm
• Bolt size: M10
• Terminal type: Ring terminal, uninsulated
• Connection method: Crimp
• Standard compliance: DIN 46235
• Conductor type: Stranded copper conductors
• Inspection hole: Yes
• Temperature range: -55°C to +150°C
• RoHS compliant: Yes
• Number of holes: 1
• Application: Power and control wiring, grounding
• Crimping profile: Hexagonal (recommended)
• Colour: Metallic (tin-plated copper)

Our verdict

With its robust copper construction, precise M10 fit, and compliance with DIN 46235, the KLAU 3R10 ring terminal is a dependable choice for professionals seeking durable, high-conductivity connections in critical electrical systems.
