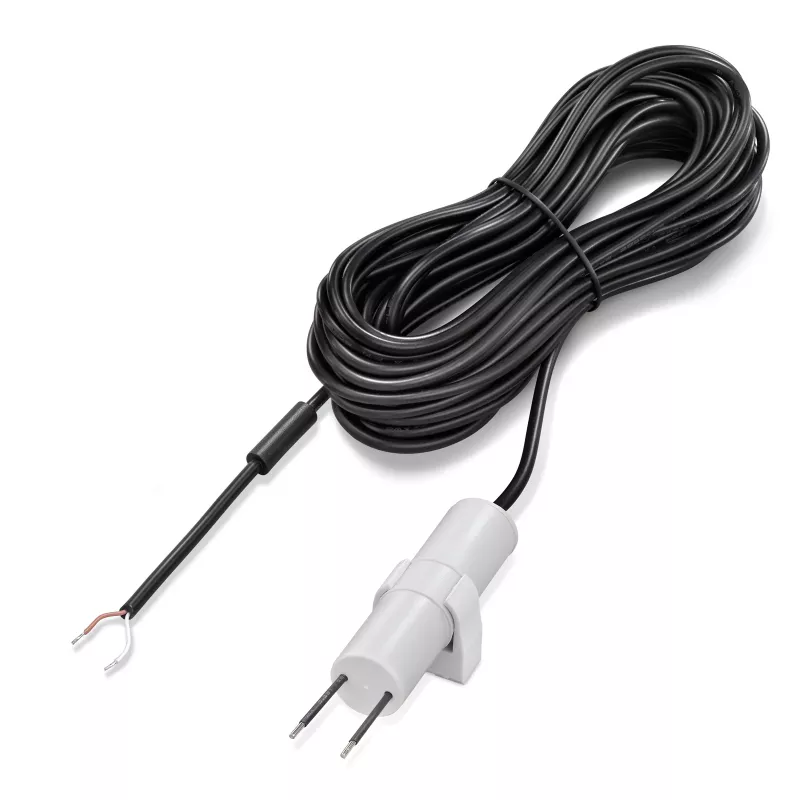

H-Tronic WS 10-2 sensore di acqua per WPS 1000, cavo 10 m 1114446

Water leaks in basements, laundry rooms, or server rooms can cause extensive damage before they are even noticed. The H-Tronic WS 10-2 water sensor provides an early warning by detecting the presence of water and signaling the connected WPS 1000 control unit.

Who is it for

This sensor is for users of the H-Tronic WPS 1000 water protection system who need to monitor additional areas for water leaks. It is suitable for basements, laundry rooms, kitchens, bathrooms, and server rooms.

Main features

• Detects water via conductive electrodes
• 10 m connection cable with 3.5 mm jack plug
• Sensor head protected to IP68
• Passive sensor, powered by the WPS 1000 control unit
• Instantaneous response upon water contact

Specifications

• Sensor type: Water leakage sensor
• Compatibility: H-Tronic WPS 1000
• Cable length: 10 m
• Detection principle: Conductive
• Connection: 3.5 mm jack plug
• Operating temperature: -15 to +50 °C
• Sensor head protection: IP68
• Sensor head dimensions: 50 x 25 x 10 mm
• Housing material: ABS plastic
• Cable material: PVC
• Mounting: Floor-standing or surface-mounted

Tips

Place the sensor head flat on the floor in areas where water would first accumulate. The sensor responds to conductive liquids, so it is suitable for detecting water leaks but not for non-conductive fluids.
