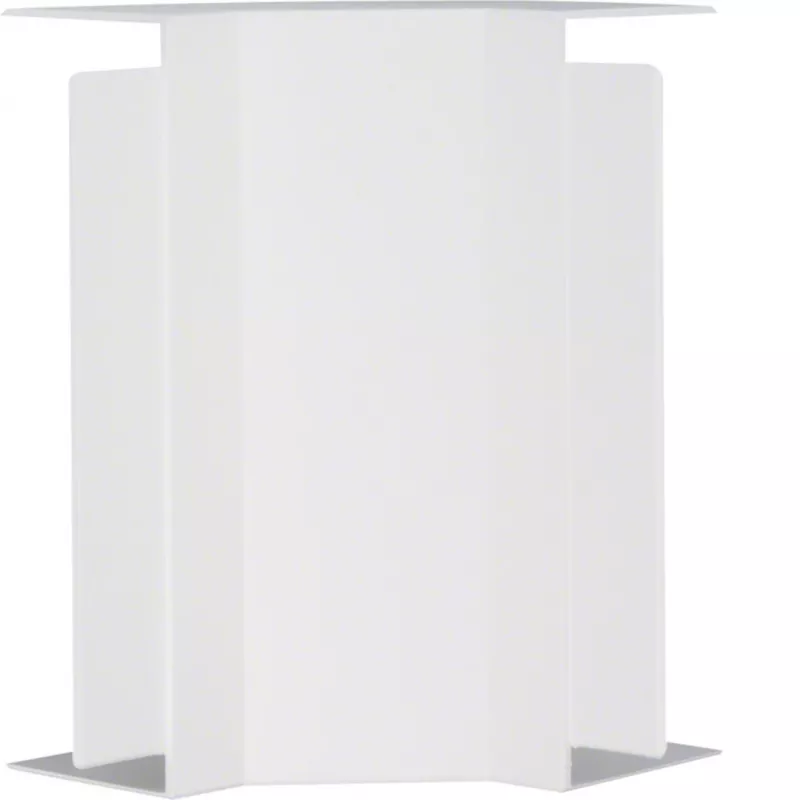

Hager Angolo interno senza alogeni per canale a parapetto LF/LFF/FB 60x190 mm bianco LF6019049016

When cable trunking meets a corner, a clean 90-degree turn is often the difference between a professional installation and a messy one. The Hager LF6019049016 inner corner fitting solves this by providing a seamless, halogen-free transition for Hager LF, LFF, and FB cable trunking systems with dimensions of 60 x 190 mm.

Who is it for

Electricians and installers working on cable management in commercial or residential buildings who need to route cables around internal corners while maintaining a neat, continuous trunking line. It suits projects where fire safety and low smoke emission are priorities.

Main features

• Compatible with Hager LF, LFF, and FB trunking profiles of 60 x 190 mm
• Halogen-free plastic construction for reduced toxic smoke in case of fire
• Pure white (RAL 9010) matt finish blends with standard trunking
• Clip-on mounting for quick, tool-free installation
• Self-extinguishing material enhances fire safety
• UV-stable to prevent discoloration in sunlit areas

Specifications

• Product type: Inner corner fitting
• Material: Plastic
• Colour: Pure white (RAL 9010)
• Mounting type: Clip-on / snap-on
• Halogen-free: Yes
• Fire resistance: Self-extinguishing
• UV stability: Yes
• Operating temperature: -5 to +60 °C
• Application: Cable management systems, electrical installations

Tips

Ensure the trunking ends are cut square before fitting. Press the corner piece firmly until it clicks into place. For external corners, use the corresponding outer corner fitting.
