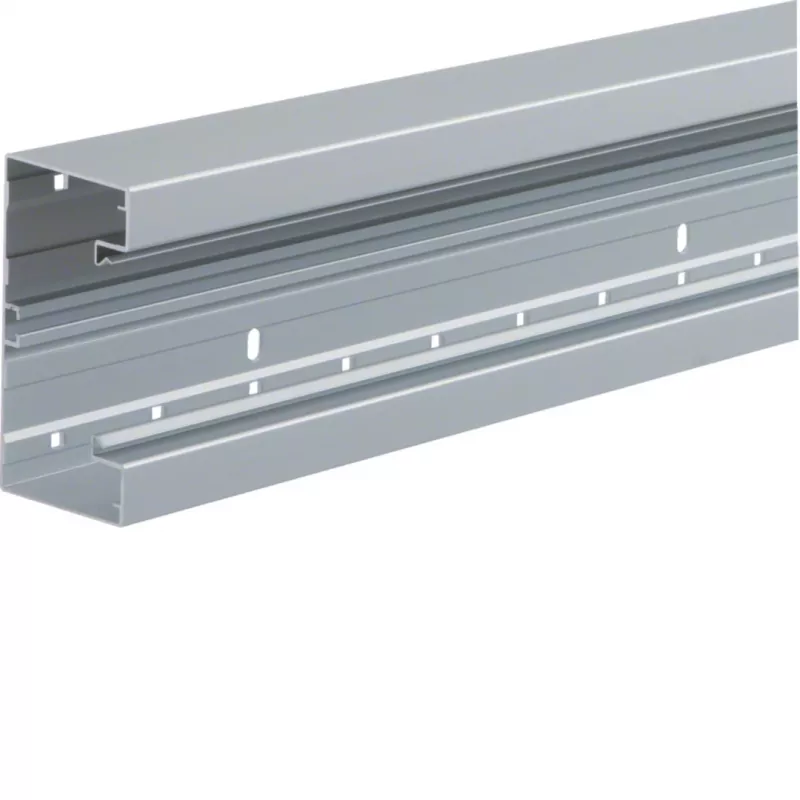

Hager BRA651301ELN base canalina dado, alluminio naturale anodizzato, 2000x130x65 mm

The Hager BRA651301ELN is a high-quality dado trunking base from the Tehalit.BRA system, designed for professional cable routing and electrical installations in commercial, office, and residential environments. This robust PVC base unit offers a sleek aluminium natural anodized finish, providing both durability and aesthetic appeal.

Advantages

Easy to install with wall mounting capability, the trunking base features a protective film to keep the surface pristine during installation. Its self-extinguishing fire behaviour ensures safety, while the lead-free and halogen-free construction meets modern environmental standards. The single-compartment design simplifies cable management, and compatibility with Tehalit.BRA covers and accessories allows for flexible system expansion.

Suitable for

• Cable routing in offices, commercial spaces, and residential buildings
• Electrical installations requiring a durable and discreet trunking solution
• Integration with Tehalit.BRA system components for a complete wiring system

Key specifications

• Product Type: Dado Trunking Base
• System: Tehalit.BRA
• Material: PVC (Polyvinyl Chloride)
• Colour: Aluminium Natural Anodized
• Number of Compartments: 1
• Halogen-free: No
• Lead-free: Yes
• Surface Protection: Untreated
• Protective Film: Yes
• Mounting Type: Wall mounting
• Length: 2000 mm
• Width: 130 mm
• Height/Depth: 65 mm
• Standard Compliance: EN 50085-1, EN 50085-2-1
• Fire Behaviour: Self-extinguishing

Recommendations

For a complete installation, pair this base with compatible Tehalit.BRA covers and accessories. Ensure proper wall mounting using appropriate fixings (not included). Always follow local electrical codes and standards.
