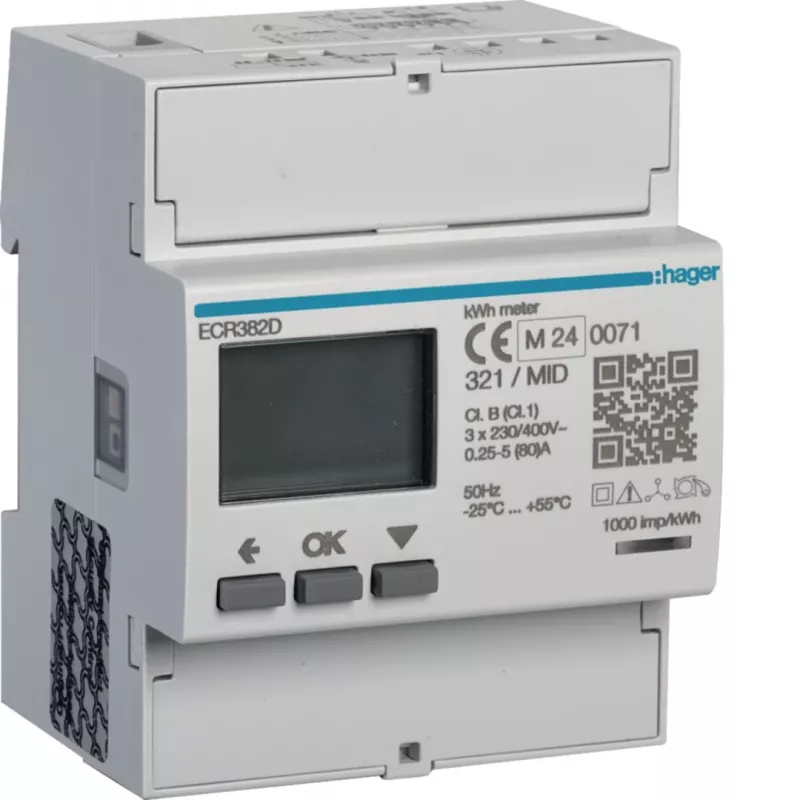

Hager ECR382D Contatore di energia trifase a connessione diretta 80A 4 moduli Modbus MID

The Hager ECR382D is a high-precision three-phase direct connected energy meter designed for commercial and industrial applications. With a maximum current of 80A and MID certification (Module B + D), it ensures accurate billing-grade measurement of active and reactive energy. The device features a Modbus RTU (RS485) communication interface for easy integration into building management systems, along with two configurable S0 pulse outputs. Its compact 4-module DIN rail housing (72 mm) fits standard distribution boards, and the backlit LCD display provides clear readout of all measured parameters including voltage, current, power, frequency, and power factor. Bi-directional energy measurement supports both import and export monitoring.

Advantages

MID certified for legal metrology, Class B accuracy (EN 50470-3) for active energy, direct connection up to 80A without external transformers, Modbus RTU communication for remote monitoring, and bi-directional measurement for renewable energy applications.

Suitable for

• Sub-metering in commercial buildings
• Industrial energy monitoring
• Solar PV system monitoring (import/export)
• Building management system integration

Key specifications

• Number of Phases: 3-Phase
• Connection Type: Direct Connection
• Maximum Current (Imax): 80 A
• Nominal Current (In): 5 A
• Nominal Voltage (Un): 3x230/400 V AC
• Frequency: 50/60 Hz
• Accuracy Class (Active Energy): Class B (EN 50470-3)
• Accuracy Class (Reactive Energy): Class 2 (EN 62053-23)
• MID Certified: Yes (Module B + D)
• Communication Interface: Modbus RTU (RS485)
• Pulse Outputs: 2x S0 (Configurable)
• Display Type: LCD with Backlight
• Mounting Type: DIN Rail (EN 60715)
• Module Width: 4 Modules (72 mm)
• Protection Degree: IP20
• Operating Temperature: -25 to +55 °C
• Measured Parameters: Active/Reactive Energy, Power, Voltage, Current, Frequency, Power Factor
• Energy Measurement: Bi-directional (Import/Export)

Recommendations

For optimal performance, install in a clean, dry environment within the specified temperature range. Use appropriate circuit protection (e.g., MCB) upstream. Ensure RS485 bus termination if used in a multi-device network.
