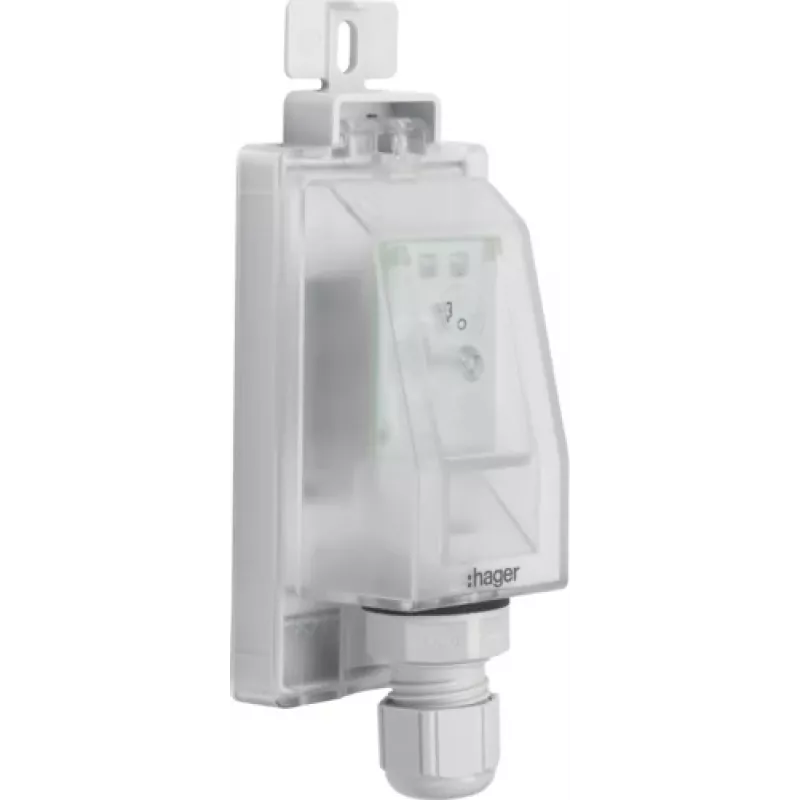

Hager EEN003 Sensore di luce esterna per interruttore crepuscolare, montaggio a parete, IP55, cavo 1,5 m, grigio

Outdoor lighting often stays on too long or switches too early when no reliable ambient light detection exists. The Hager EEN003 external light sensor solves this by measuring natural light levels and sending the signal to a compatible twilight switch, ensuring lights activate only when darkness actually falls.

Who is it for

Electricians and building managers who need dependable dusk-to-dawn automation for outdoor luminaires, pathways, or building perimeters. It suits installations where the control switch is indoors but the light sensing must happen outside.

Main features

• Surface-mounted sensor for outdoor installation
• Detects ambient light to control a connected twilight switch
• IP55 rated housing protects against dust and water jets
• UV-resistant thermoplastic housing in grey
• 1.5 m integrated cable for flexible placement
• Allows up to 100 m cable run to the switch using J-Y(ST)Y 2x0.8mm²
• Protection class II (double insulated)
• Operating temperature range: -30 to +70 °C

Specifications

• Product type: External light sensor
• Mounting type: Surface-mounted
• Compatibility: Hager twilight switch EEN003
• Ingress protection: IP55
• Operating temperature: -30 to +70 °C
• Integrated cable length: 1.5 m
• Max. cable length to switch: 100 m (with J-Y(ST)Y 2x0.8mm²)
• Connection type: 2-wire
• Housing material: UV-resistant thermoplastic
• Colour: Grey
• Protection class: II
• Application: Outdoor lighting control, building automation

Tips

Mount the sensor on a north-facing wall to avoid direct sunlight, which can cause premature switching. Ensure the cable run to the twilight switch does not exceed 100 m when using the recommended cable type.
