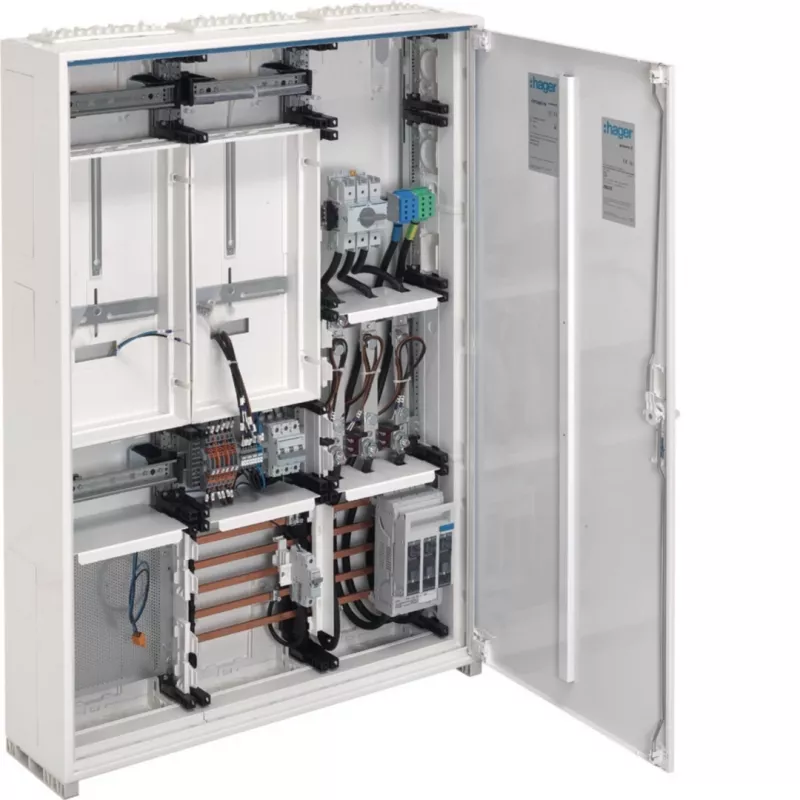

Hager FP73W11N quadro contatori e trasformatore 1100x800x205 mm 2 campi contatore

The Hager FP73W11N is a high-quality transformer and metering cabinet designed for indirect metering applications in residential, commercial, and industrial settings. This robust enclosure provides reliable protection for electrical components and meets stringent DIN VDE and TAB standards.

Advantages

Durable sheet steel construction with RAL 7035 light grey finish ensures long-lasting performance. IP44 protection class guards against dust and splashing water. The cabinet features a single door with double-bit lock for secure access. Integrated 5-pole busbar system rated at 250 A simplifies wiring.

Suitable for

• Indirect metering (Wandlermessung) installations
• Transformer and metering points in residential buildings
• Commercial and industrial power distribution
• Surface-mounted or semi-flush mounting

Key specifications

• Dimensions (H x W x D): 1100 x 800 x 205 mm
• Protection class: IP44
• Impact resistance: IK07
• Number of meter fields: 2
• Number of transformer fields: 1
• Number of distribution fields: 1
• Rated voltage: 230/400 V AC
• Rated current: 250 A
• Material: Sheet steel
• Colour: RAL 7035 (Light grey)
• Door type: Single door
• Lock type: Double-bit lock
• Mounting type: Surface-mounted / Semi-flush
• Cable entry: Top, bottom, side (knockouts)
• Busbar system: 5-pole, 250 A
• PE/N terminals: Included

Recommendations

This cabinet is ideal for professional electricians and installers requiring a compliant and robust solution for transformer and metering applications. Ensure proper mounting and cable routing for optimal performance.
