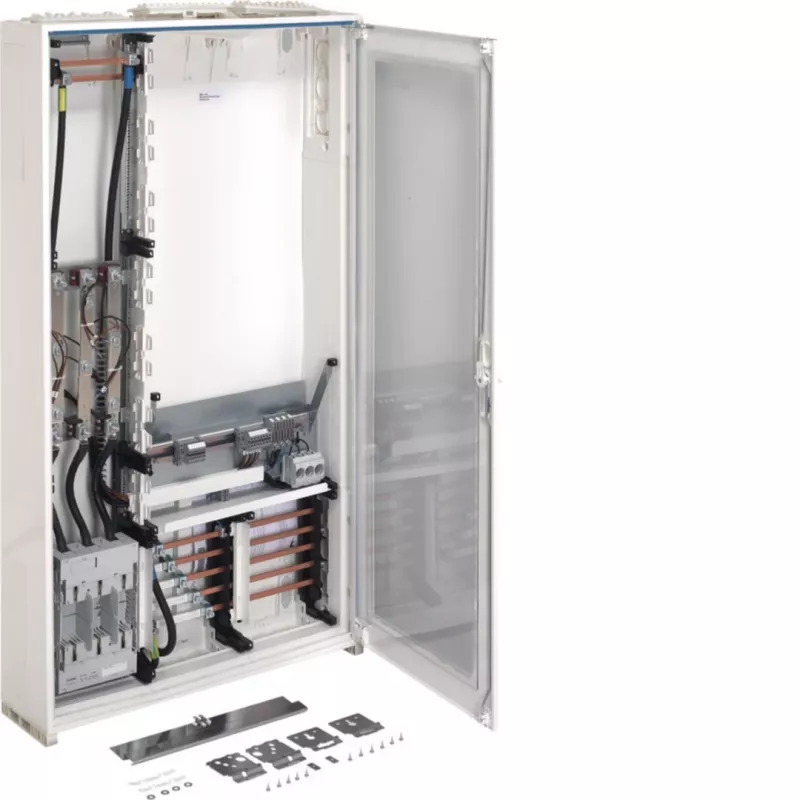

Hager FP93W1N quadro contatori con trasformatore di corrente, 3 campi, 1 punto contatore, IP44, RAL 9010

The Hager FP93W1N is a high-quality current transformer metering cabinet designed for commercial and industrial installations. It provides reliable and secure metering for current transformers (CTs) in TN-S, TT, and TN-C-S networks. With a robust sheet steel construction and IP44 protection, this cabinet is suitable for surface mounting in demanding environments.

Advantages

This metering cabinet offers a durable and secure solution for CT metering. The opaque steel door with double-bit key lock ensures safety and tamper resistance. Pre-punched cable entries at top and bottom facilitate easy installation. The cabinet complies with DIN VDE 0603-1 and VDE-AR-N 4101 standards, guaranteeing high quality and reliability.

Suitable for

• Commercial and industrial electrical installations requiring current transformer metering
• Surface-mounted metering cabinets in TN-S, TT, and TN-C-S networks
• Applications with nominal current up to 250 A and nominal voltage 230/400 V AC

Key specifications

• Product Type: Current Transformer Metering Cabinet
• Number of Fields: 3
• Number of Metering Points: 1
• Metering Type: For Current Transformers (CTs)
• Protection Class (IP): IP44
• Material: Sheet Steel
• Color: RAL 9010 (Pure White)
• Mounting Type: Surface-mounted
• Nominal Current: Up to 250 A
• Nominal Voltage: 230/400 V AC
• Number of Rows per Field: 7
• Modules per Row (TE/PLE): 12
• Door Type: Opaque Steel Door
• Locking Mechanism: Double-bit key lock
• Cable Entry: Top and Bottom (pre-punched)
• Standards: DIN VDE 0603-1, VDE-AR-N 4101
• Network Type: TN-S, TT, TN-C-S

Recommendations

For optimal performance, ensure that the cabinet is installed by a qualified electrician and that all local regulations are followed. The cabinet is designed for indoor use; if installed outdoors, additional weather protection may be required.
