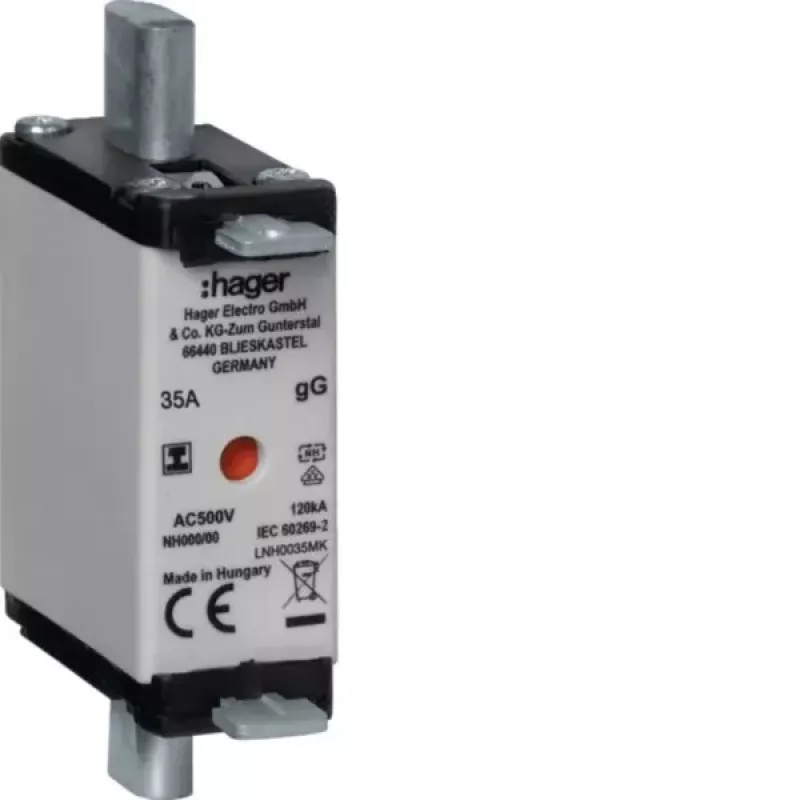

Hager fusibile NH LNH0035MK NH000 gG 500V 35A con manico isolante

NH fuse link for cable and line protection, rated 35 A at 500 V AC with a breaking capacity of 120 kA. The NH000 size and gG operating class ensure reliable general-purpose protection in low-voltage distribution systems. The insulated grip (Iso-Griff) allows safe handling during installation and replacement.

Advantages

High breaking capacity of 120 kA for effective short-circuit protection. Insulated grip enhances safety during fuse replacement. Compact NH000 size fits standard fuse bases.

Suitable for

• Cable and line protection in low-voltage distribution networks
• General-purpose applications requiring gG operating class
• Industrial and commercial electrical installations

Key specifications

• Fuse type: NH fuse link
• Size: NH000
• Rated current: 35 A
• Rated voltage: 500 V AC
• Utilization category: gG
• Breaking capacity: 120 kA
• Standard: IEC 60269-2
• Body material: Ceramic
• Contact material: Silver-plated copper
• Power dissipation: 3.5 W

Recommendations

For use with compatible NH000 fuse bases and disconnectors. Ensure correct torque when tightening connections.
