HAGER GS11009016 presa Schuko con deviatore, bianco traffico

Rated at 16 A / 250 V, this HAGER GS11009016 combines a Schuko socket with a 10 A changeover switch in a single flush-mounted unit.

Overview

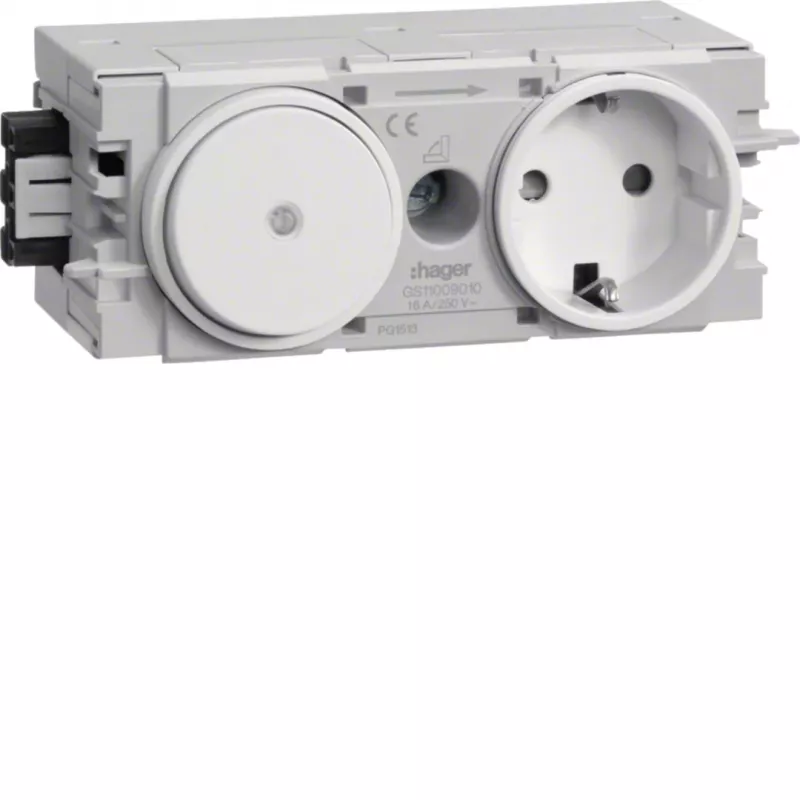

The HAGER GS11009016 is a combination socket-outlet with integrated switch from the Kallysto design line. It features a single Schuko (Type F) socket and a changeover switch, both mounted on a common thermoplastic frame in traffic white (RAL 9016). The unit is designed for flush mounting in standard boxes and includes integrated child protection for the socket.

What stands out

• Combined socket and switch in one device
• Changeover switch rated at 10 A
• Integrated child protection
• Halogen-free thermoplastic material
• Matt surface finish

Technical details

• Socket type: Schuko (Type F)
• Rated voltage: 250 V AC
• Rated current (socket): 16 A
• Rated current (switch): 10 A
• Frequency: 50/60 Hz
• Protection class: IP20
• Mounting type: Flush-mounted
• Colour: Traffic white (RAL 9016)
• Material: Thermoplastic
• Halogen-free: Yes
• Connection type: Screw terminals
• Child protection: Yes
• Design line: Kallysto
• Number of sockets: 1
• Number of switches: 1
• Installation depth: 28 mm
• Surface finish: Matt

Our verdict

A practical and safe solution for controlling a socket outlet with a switch, ideal for residential and commercial applications where a changeover function is needed.
