Hager HZC708 sbarra collettrice a pioli 3 poli 63-80A 10mm² 12 moduli 210mm grigio

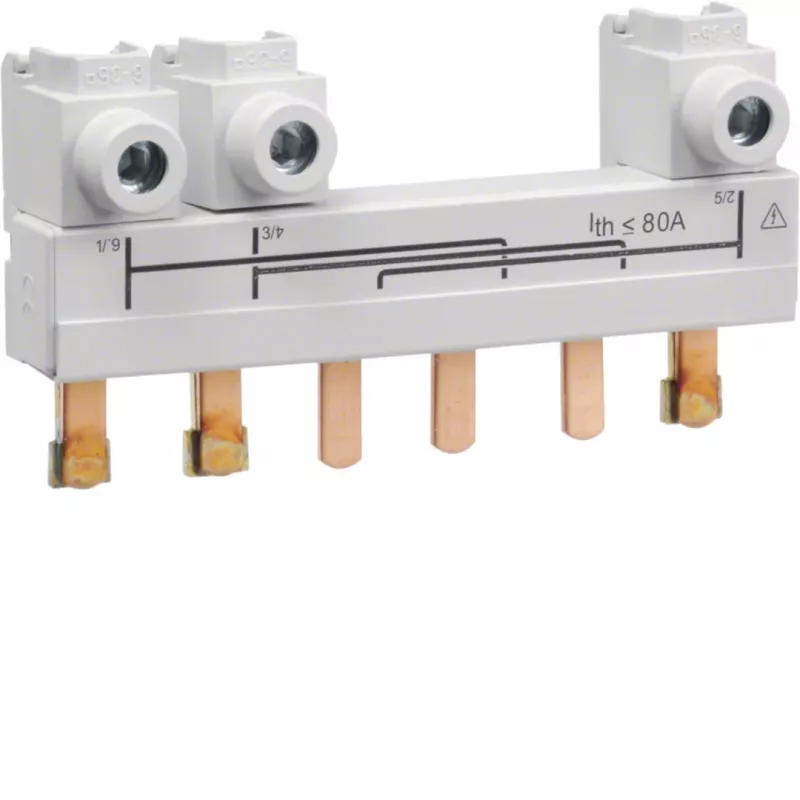

The Hager HZC708 is a high-quality 3-pole pin busbar designed for efficient power distribution in low-voltage switchgear and controlgear assemblies. With a rated current of 63 A and a maximum current of 80 A, this busbar ensures reliable performance for modular devices on DIN rail. Its fully insulated design with self-extinguishing thermoplastic provides enhanced safety, while the electrolytic copper conductor guarantees excellent conductivity.

Advantages

This busbar offers easy installation and secure connections for Hager modular devices such as MCBs, RCDs, and RCBOs. The 10 mm² cross-section and 18 mm module pitch ensure compatibility with standard 12-module configurations. The grey colour and compact 210 mm length make it a discreet and space-saving solution for distribution boards.

Suitable for

• Power distribution in low-voltage switchgear and controlgear assemblies
• Connecting Hager modular devices on DIN rail
• Industrial and commercial electrical installations requiring reliable busbar connections

Key specifications

• Busbar Type: Pin Busbar
• Number of Poles: 3-pole
• Rated Current: 63 A
• Maximum Current: 80 A
• Cross-Section: 10 mm²
• Number of Modules: 12 modules
• Module Pitch: 18 mm
• Length: 210 mm
• Insulation: Fully insulated
• Insulation Material: Self-extinguishing thermoplastic
• Conductor Material: Electrolytic Copper
• Mounting: For modular devices on DIN rail
• Rated Insulation Voltage (Ui): 500 V
• Colour: Grey
• Standard: EN 60439-1

Recommendations

For optimal performance, use this busbar with Hager modular devices and ensure proper installation by a qualified electrician. Always adhere to local electrical codes and standards.
