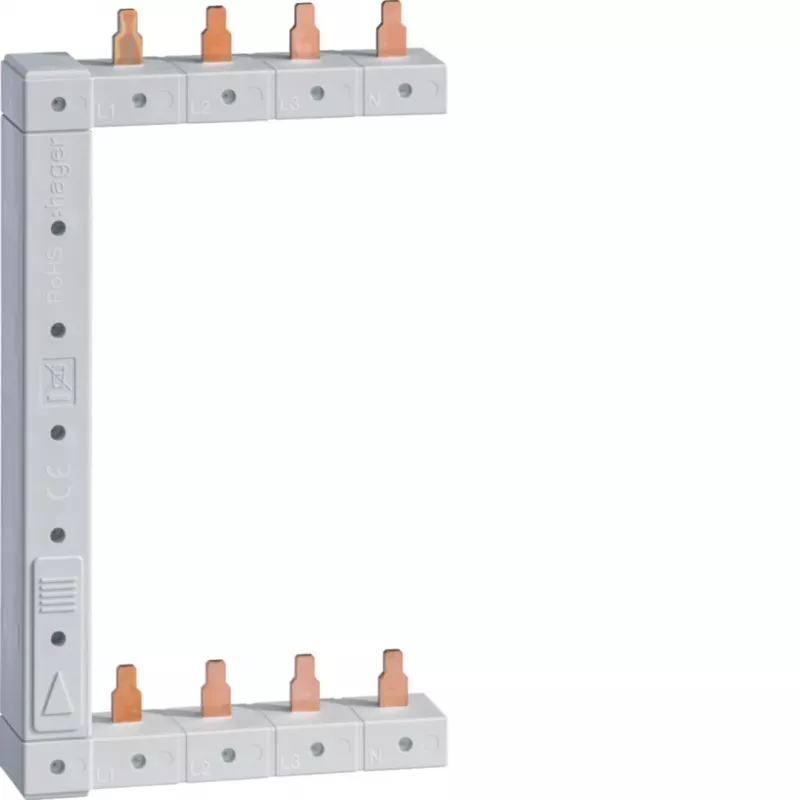

HAGER KCF663S barra di fase verticale, 3 poli, 63 A, 400 V, 10 mm², sinistra/destra

Rated for 63 A at 400 V AC, this 3-pole vertical phase busbar distributes power across up to 63 modules with 10 mm² copper conductors and fork-type connections.

Overview

The HAGER KCF663S is a vertical phase busbar for left or right installation in distribution boards. It connects modular devices with fork terminals, such as miniature circuit breakers and residual current devices, providing a reliable power distribution solution.

What stands out

• 63 A rated current and 400 V AC rated voltage
• 3-pole design with 10 mm² copper conductors
• Supports up to 63 modules (1-module wide connections)
• Fork-type connection for secure and easy installation
• Vertical mounting, compatible with DIN rail
• Halogen-free, self-extinguishing plastic insulation

Technical details

• Number of Poles: 3P
• Rated Current (In): 63 A
• Rated Voltage (Ue): 400 V AC
• Number of Modules: 63
• Conductor Cross-section: 10 mm²
• Connection Type: Fork type
• Mounting Type: Vertical / DIN rail compatible
• Conductor Material: Copper
• Insulation Material: Self-extinguishing plastic
• Insulation Voltage (Ui): 500 V
• Impulse Withstand Voltage (Uimp): 4 kV
• Short-circuit Withstand Current (Icw): 25 kA (1s)
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -40 to +80 °C
• Degree of Protection: IP20 (when installed in enclosure)
• Halogen-free: Yes
• Colour: Grey (insulation)
• Orientation: Left/Right

Our verdict

A robust and versatile phase busbar for professional electrical installations, offering high current capacity and broad compatibility with modular devices.
