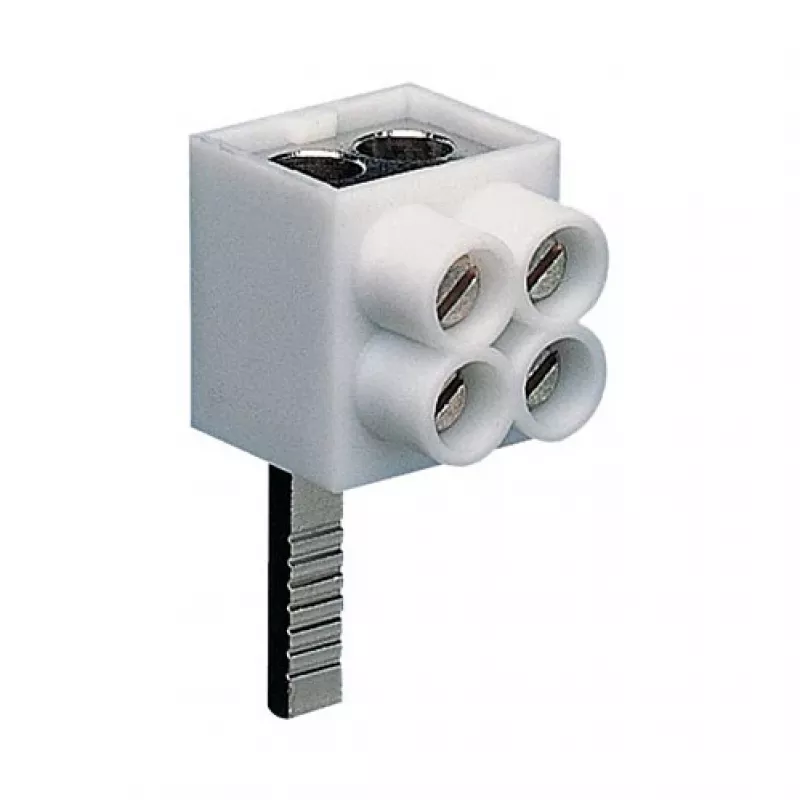

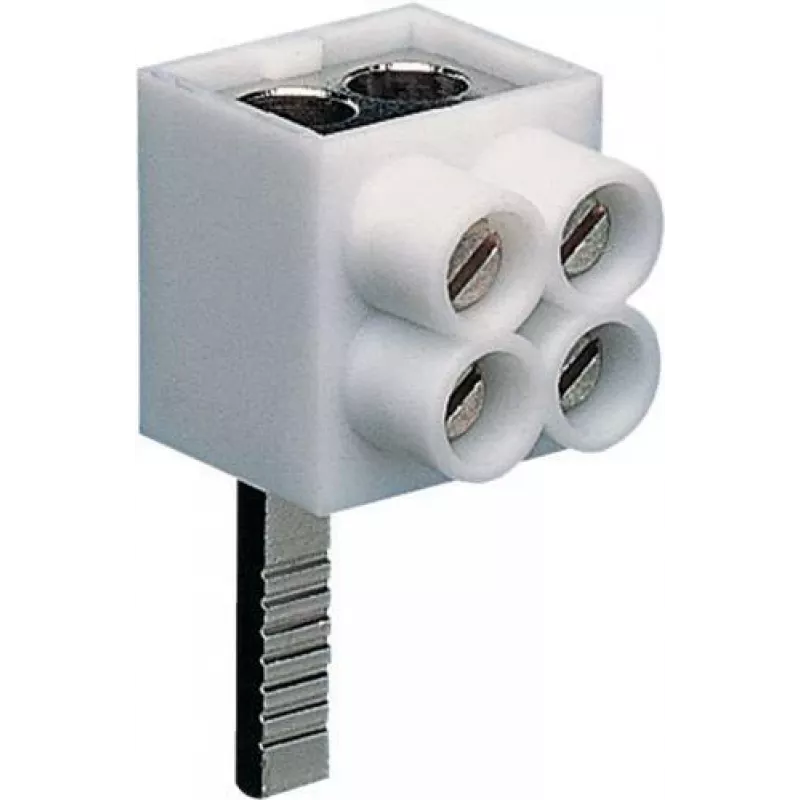

Hager KF82A morsetto di collegamento 1 polo, connessione a spina, 2x16 mm², grigio

The Hager KF82A is a 1-pole connection terminal with a pin connection for direct mounting. It accommodates two conductors up to 16 mm² each, providing a reliable screw connection for rigid or flexible wires.

Advantages

This terminal offers a compact design with a pin connection for easy integration into distribution boards. It supports a rated current of 63 A and a rated operational voltage of 400 V AC, making it suitable for a wide range of electrical installations.

Suitable for

• Connecting two conductors up to 16 mm² in distribution boards
• Applications requiring a 1-pole terminal with pin mounting
• Use with rigid or flexible conductors from 1.5 mm² to 16 mm²

Key specifications

• Number of poles: 1
• Connection type: Screw connection for conductors, pin connection for mounting
• Conductor cross-section: 1.5 - 16 mm² (rigid and flexible, 2 conductors)
• Rated operational voltage: 400 V AC
• Rated insulation voltage: 500 V
• Rated current: 63 A
• Number of clampable conductors per pole: 2
• Insulation material: Polyamide (PA)
• Colour: Grey (RAL 7035)
• Degree of protection: IP20
• Operating temperature range: -25 to +70 °C
• Flammability class: Self-extinguishing
• Standards: EN 60947-7-1

Recommendations

For a secure and efficient connection in your electrical panel, the Hager KF82A provides a dependable solution with its pin mounting and high current capacity.
