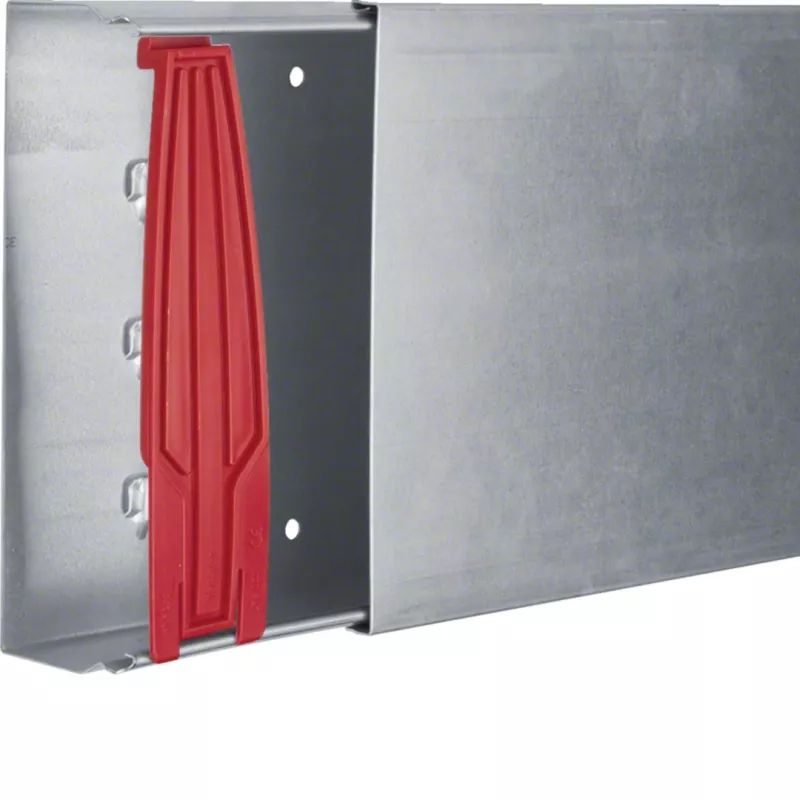

Hager LFS602000VERZ canale portacavi in acciaio canale base 60x200mm, 2m, zincato a caldo

This Hager LFS602000VERZ cable trunking base channel offers a generous 12000 mm² usable cross-section, making it ideal for routing extensive cable bundles in commercial and industrial settings. Constructed from 0.75 mm thick Sendzimir galvanized steel, it provides durable protection and reliable performance for indoor installations.

Overview

The Hager LFS602000VERZ is a single-compartment cable trunking base channel from the LFS series. It measures 60 mm in height, 200 mm in width, and 2000 mm in length. The galvanized steel construction ensures long-lasting corrosion resistance, while the perforated side walls and base facilitate cable entry and ventilation. The channel is designed for wall or ceiling mounting and is halogen-free.

What stands out

• Large usable cross-section of 12000 mm² accommodates high cable volumes.
• Sendzimir galvanized steel provides excellent corrosion protection.
• Perforated side walls and base allow flexible cable routing and ventilation.
• Halogen-free material enhances safety in fire conditions.
• Complies with DIN EN 50085-1 and DIN EN 50085-2-1 standards.

Technical details

• Product type: Cable trunking base channel
• Material: Steel, Sendzimir galvanized
• Material thickness: 0.75 mm
• Height: 60 mm
• Width: 200 mm
• Length: 2000 mm
• Number of compartments: 1
• Side wall perforation: Yes
• Base perforation: Yes
• Protection class: IP20
• Halogen-free: Yes
• Lid: Not included (sold separately)
• Suitable for functional integrity (E30/E90): No
• Application area: Indoor
• Standards: DIN EN 50085-1, DIN EN 50085-2-1

Our verdict

A robust and spacious cable management solution for professional indoor installations, offering reliable galvanized steel construction and compliance with key standards.
