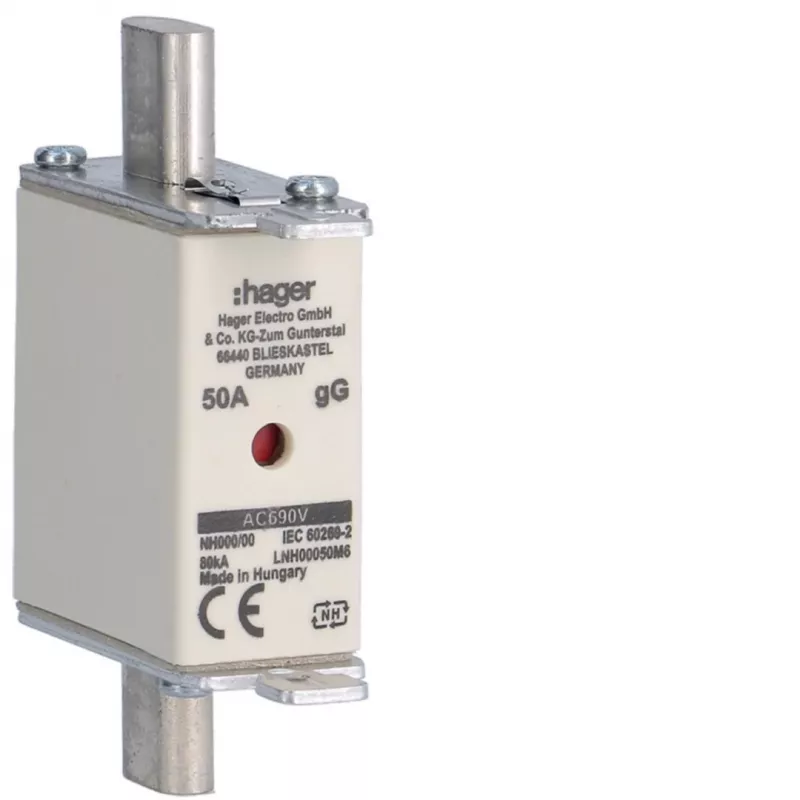

HAGER LNH00050M6 fusibile NH, NH00, gG, 690V, 50A

Electricians and panel builders rely on the HAGER LNH00050M6 NH fuse link to protect cables and lines in low-voltage distribution systems. This NH00 size fuse link is rated for 50 A at 690 V AC and features a general purpose (gG) utilization category, making it suitable for a wide range of applications. Its blade contacts ensure secure mounting in NH fuse bases, while the ceramic body provides durability and thermal stability. The fuse link has a breaking capacity of 120 kA, offering reliable protection against short-circuit currents.

Key specifications

• Fuse type: NH fuse link
• Size: NH00
• Rated current: 50 A
• Rated voltage: 690 V AC
• Utilization category: gG (general purpose)
• Breaking capacity: 120 kA
• Standard: IEC/EN 60269-2
• Body material: Ceramic
• Connection type: Blade contacts
• Rated power dissipation: 5.5 W
• Operating frequency: 50/60 Hz
• Ambient air temperature: -5°C to 40°C

Why choose it

The HAGER LNH00050M6 combines robust construction with precise protection. Its ceramic body withstands high temperatures and mechanical stress, ensuring long service life. With a high breaking capacity of 120 kA, it safely interrupts fault currents, minimizing downtime and protecting downstream equipment.

Ideal use cases

• Protection of cables and lines in industrial and commercial electrical installations
• Use in low-voltage distribution boards and motor control centers
• Suitable for applications requiring general purpose (gG) protection

Good to know

The fuse link conforms to IEC/EN 60269-2 and operates at a frequency of 50/60 Hz. It is designed for use in NH fuse bases with blade contacts. The rated insulation voltage is 690 V.
