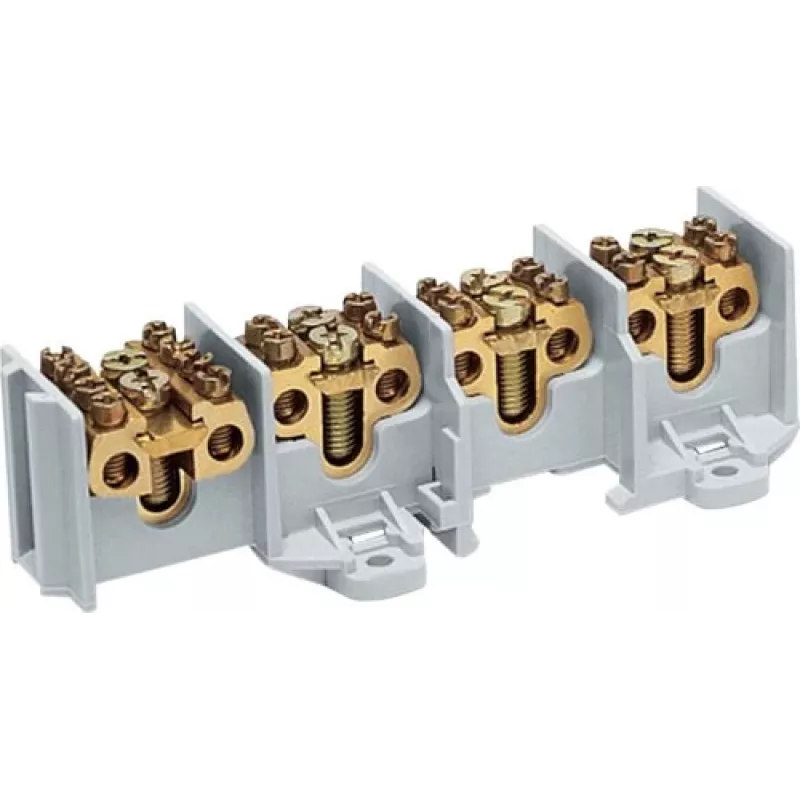

Hager morsetto di derivazione per linea principale 4x35/4PEN-deriv. K65A (K65A)

When distributing power from a main line to multiple branch circuits, reliable and safe connections are essential. The Hager K65A main line branch terminal block provides a secure and organized solution for branching 4-wire (3P + PEN) circuits up to 65 A. It allows you to tap four branch outputs per phase and one for PEN, simplifying installation in distribution boards.

Who is it for

Electricians and panel builders who need a compact, DIN-rail mountable terminal block for main line distribution in residential or commercial electrical installations.

Main features

• Rated current 65 A, rated voltage 400 V AC.
• Main conductor cross-section: 6–35 mm² (rigid or flexible).
• Branch conductor cross-section: 1.5–16 mm² for phases, 6–35 mm² for PEN.
• Four branch outputs per phase, one branch output for PEN.
• Screw terminal connection, DIN rail (TS35) or screw mounting.
• Halogen-free polyamide housing, grey colour, IP20 protection.

Specifications

• Product type: Main line branch terminal block
• Number of poles: 4 (3P + PEN)
• Rated current (In): 65 A
• Rated voltage (Un): 400 V AC
• Main conductor cross-section (rigid): 6 - 35 mm²
• Main conductor cross-section (flexible): 6 - 35 mm²
• Branch conductor cross-section (phase, rigid): 1.5 - 16 mm²
• Branch conductor cross-section (phase, flexible): 1.5 - 16 mm²
• Branch conductor cross-section (PEN, rigid): 6 - 35 mm²
• Branch conductor cross-section (PEN, flexible): 6 - 35 mm²
• Number of branch outputs per phase: 4
• Number of branch outputs for PEN: 1
• Mounting type: DIN rail (TS35) / screw mounting
• Connection type: Screw terminal
• Housing material: Polyamide (PA), halogen-free
• Colour: Grey
• Protection degree: IP20
• Operating temperature: -25 to +40 °C
• Standards: IEC/EN 60947-7-1

Tips

Ensure conductors are properly stripped and torqued according to manufacturer specifications. Mount on a standard 35 mm DIN rail for secure installation. Use appropriate ferrules for flexible conductors to maintain reliable connections.
