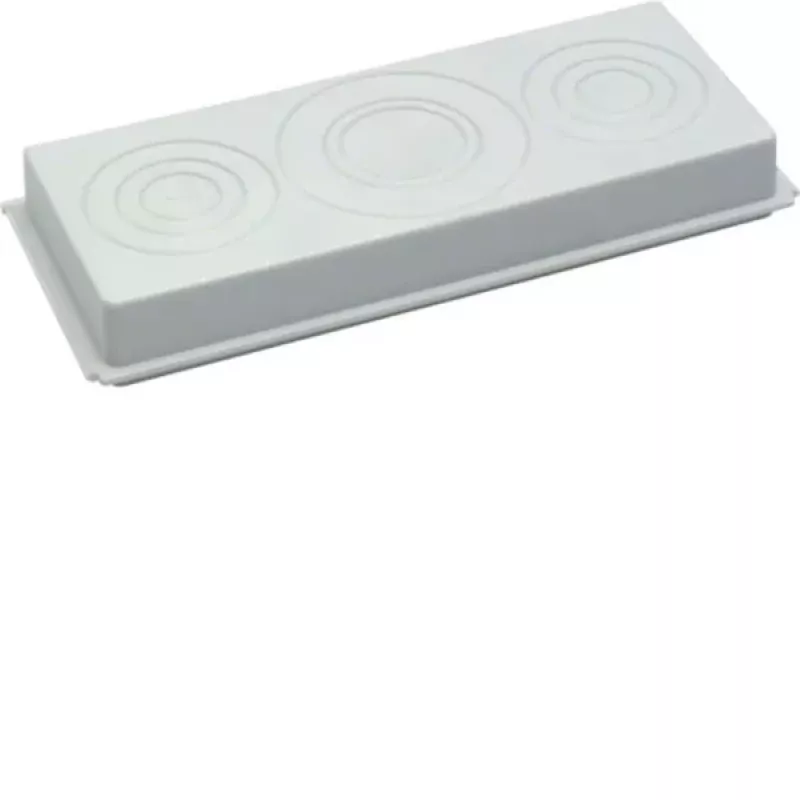

Hager Piastra a flangia, universale FZ362

Flange plate for cable entry and sealing in Hager univers Z, univers N, and univers FW series enclosures. Provides a customizable entry point for cables or conduits, designed for screw-on mounting at the top or bottom of the enclosure.

Advantages

Universal blank plate allows custom drilling for precise cable management. Made of steel with galvanized/powder-coated surface in grey (RAL 7035) for durability and a clean appearance.

Suitable for

• Hager univers Z enclosures
• Hager univers N enclosures
• Hager univers FW enclosures

Key specifications

• Material: Steel
• Surface treatment: Galvanized / powder-coated
• Colour: Grey (RAL 7035)
• Height: 250 mm
• Width: 150 mm
• Mounting: Screw-on
• IP protection with proper glands: Up to IP54

Recommendations

Use with appropriate cable glands to achieve IP54 protection. Drill holes as needed for your specific cable or conduit layout.
