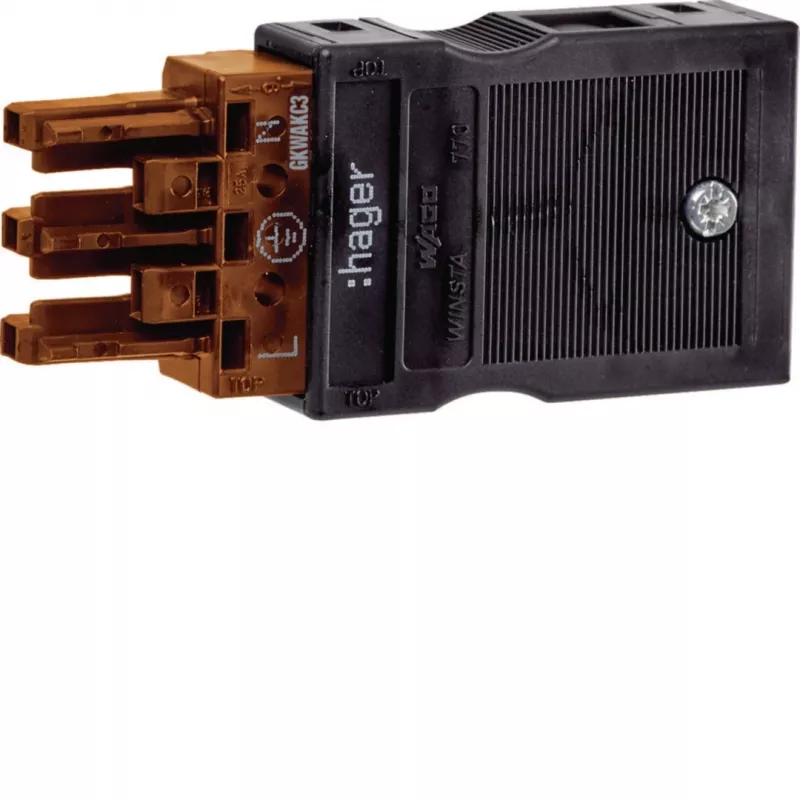

Hager presa di ingresso Wago Winsta GKWAKC3 codice S a 3 poli (GKWAKC3)

Rated for 250 V AC and 16 A, the Hager GKWAKC3 input socket delivers a secure 3-pole Wago Winsta Mini connection with S-coding for switched phase applications. Its push-in CAGE CLAMP® technology simplifies wiring for solid or fine-stranded conductors from 0.5 to 2.5 mm².

Overview

The GKWAKC3 is a black polyamide input socket designed for device-integrated or panel mounting. It features a mechanical locking mechanism and halogen-free construction, suitable for use in ambient temperatures from -5 °C to +40 °C. The socket provides IP20 protection when unmated and meets UL94 V-0 flammability standards.

What stands out

• 3-pole input socket with S-coding for switched phase
• Push-in CAGE CLAMP® connection for tool-free wiring
• Halogen-free polyamide housing in black
• Mechanical locking for secure mating

Technical details

• Connector system: Wago Winsta Mini
• Connector type: Input socket (female)
• Number of poles: 3
• Coding: S-coding (switched phase)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Connection technology: Push-in CAGE CLAMP®
• Wire cross-section (solid): 0.5 - 2.5 mm²
• Wire cross-section (fine-stranded): 0.5 - 2.5 mm²
• Protection degree: IP20 (unmated)
• Housing material: Polyamide (PA)
• Colour: Black
• Mounting type: Device integrated / Panel mount
• Locking mechanism: Mechanical locking
• Halogen-free: Yes
• Operating temperature: -5 °C to +40 °C
• Pollution degree: 2
• Flammability rating: UL94 V-0
• Contact material: Copper alloy

Our verdict

A reliable input socket for Wago Winsta Mini installations, offering straightforward push-in wiring and a robust halogen-free design.
