HAGER quadro contatori completo ZB32ET215W3 1ZP BKE-I APZ 1100mm 2 campi

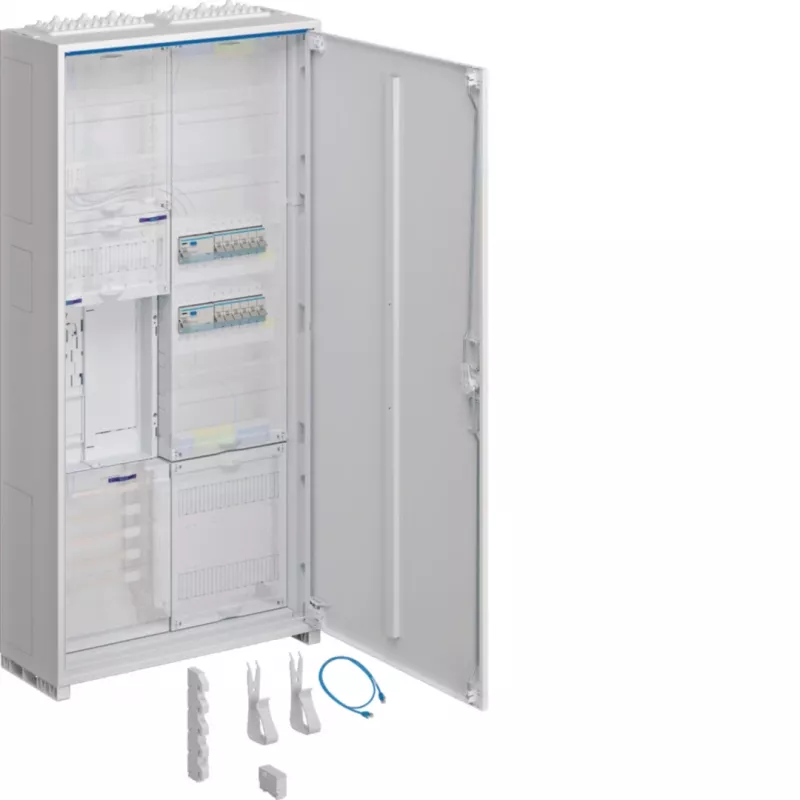

The HAGER Complete Meter Cabinet ZB32ET215W3 is a pre-wired, surface-mounted or partially recessed enclosure designed for modern energy metering applications. It integrates a BKE-I mounting device for electronic meters and an APZ connection space for additional applications, ensuring compliance with VDE AR-N 4100 standards.

Advantages

This cabinet offers a compact 2-field design with a 1100 mm height, providing ample space for meter and distribution components. The pre-wired main terminal block simplifies installation, while the opaque steel door with swivel lever lock ensures security. The RAL 9010 pure white finish blends seamlessly into residential and commercial environments.

Suitable for

• Single-meter installations in residential buildings
• Commercial applications requiring a compact meter and distribution solution
• Upgrades to smart metering systems with BKE-I compatibility

Key specifications

• Product Type: Complete Meter Cabinet
• Mounting: Surface-mounted / Partially Recessed
• Number of Meter Positions: 1
• Meter Mounting: BKE-I (Integrated Mounting and Contact Device for Electronic Meters)
• APZ Space: Yes, integrated
• Number of Fields: 2
• Distribution Fields: 1
• Rows per Distribution Field: 5
• Modules per Row (TE): 12
• Total Modules (TE): 60
• Height: 1100 mm
• Width: 550 mm
• Depth: 215 mm
• Material: Sheet Steel
• Protection Class: IP31
• Rated Current (In): 63 A
• Door Type: Opaque Steel Door
• Lock Type: Swivel Lever Lock with Double-Bit Key
• Color: RAL 9010 (Pure White)
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE AR-N 4100
• Main Terminal Block: Included
• Pre-wired: Yes, for meter connection

Recommendations

For optimal performance, ensure the cabinet is installed by a qualified electrician. Compatible with HAGER accessories for expansion and customization.
