HAGER Quadro contatori completo ZL33W4N, trifase, 3 punti, 1050mm, 3 campi

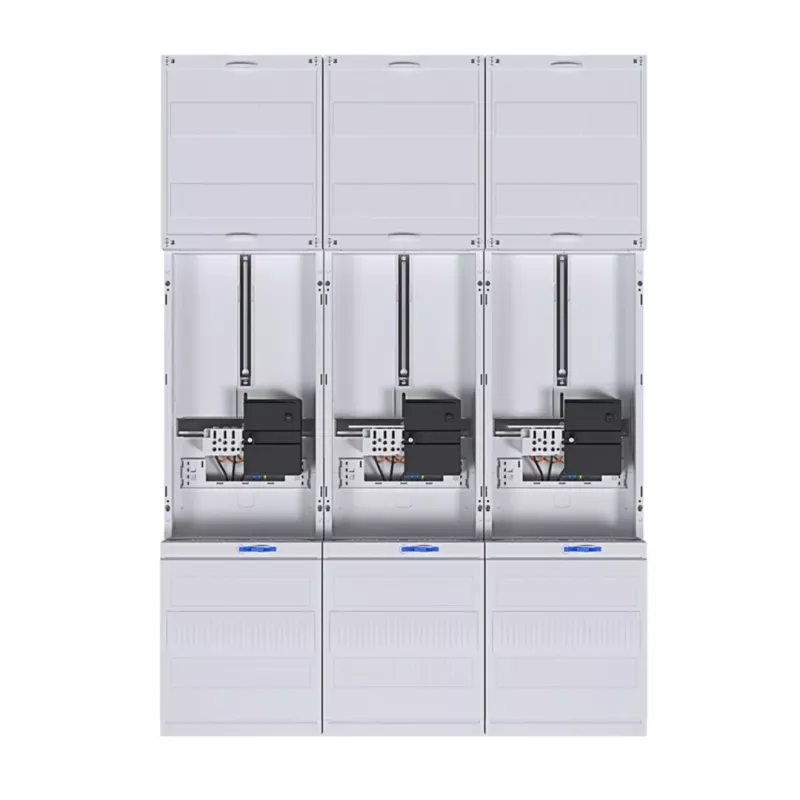

The HAGER ZL33W4N complete metering field provides three 3-phase meter places in a compact 1050mm height, designed for reliable residential and commercial metering applications.

Overview

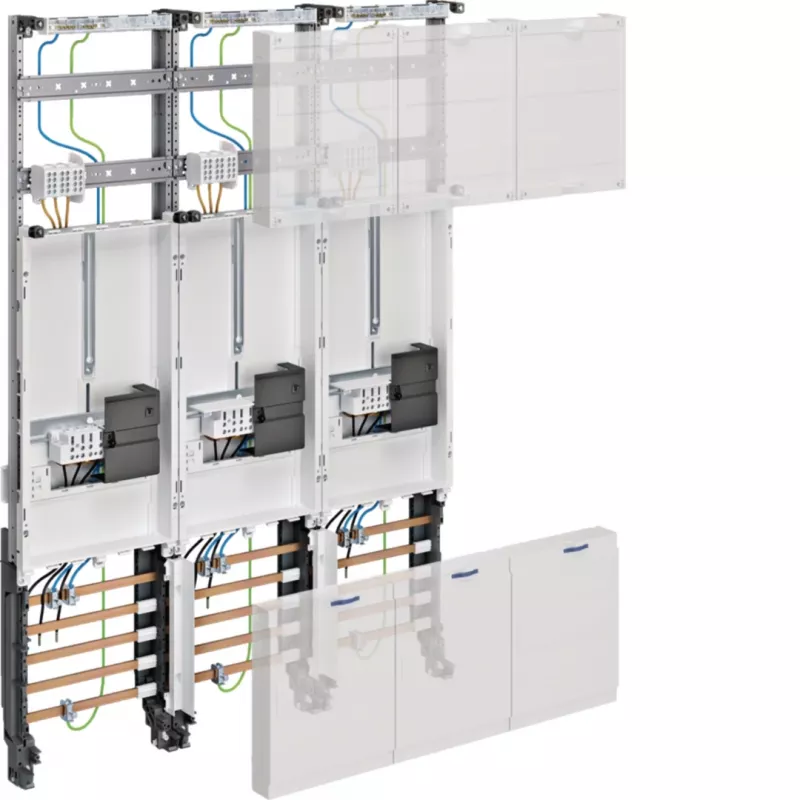

This complete metering field is engineered for three 3-phase meters with 3-point mounting, ensuring secure installation and straightforward integration into Hager meter cabinets and distribution boards. The 5-pole busbar system (L1, L2, L3, N, PE) and screw terminals support a rated current of 63 A, making it suitable for a wide range of metering setups.

What stands out

• Three meter places for 3-phase meters
• 3-point mounting system for secure meter fixation
• 5-pole busbar system (L1, L2, L3, N, PE)
• Rated current of 63 A
• Compatible with Hager meter cabinets and distribution boards
• Galvanized sheet steel and plastic construction

Technical details

• Product type: Complete Metering Field
• Number of meter places: 3
• System configuration: 3-phase (3Z)
• Meter mounting type: 3-point mounting
• Rated current: 63 A
• Busbar system: 5-pole (L1, L2, L3, N, PE)
• Connection technology: Screw terminals
• Height: 1050 mm
• Width: 250 mm
• Depth: 160 mm
• Material: Galvanized sheet steel / Plastic
• Protection class: IP2XC
• APZ field: Without integrated APZ field
• Application: Residential and Commercial Metering
• Compatibility: For Hager meter cabinets and distribution boards
• Standards: DIN VDE 0603-1, DIN 43870-1
• Number of vertical units: 3 (feldrig)

Our verdict

A robust and versatile metering field for three 3-phase meters, built to Hager's quality standards with a 5-pole busbar and 63 A rating, ideal for professional electrical installations.
