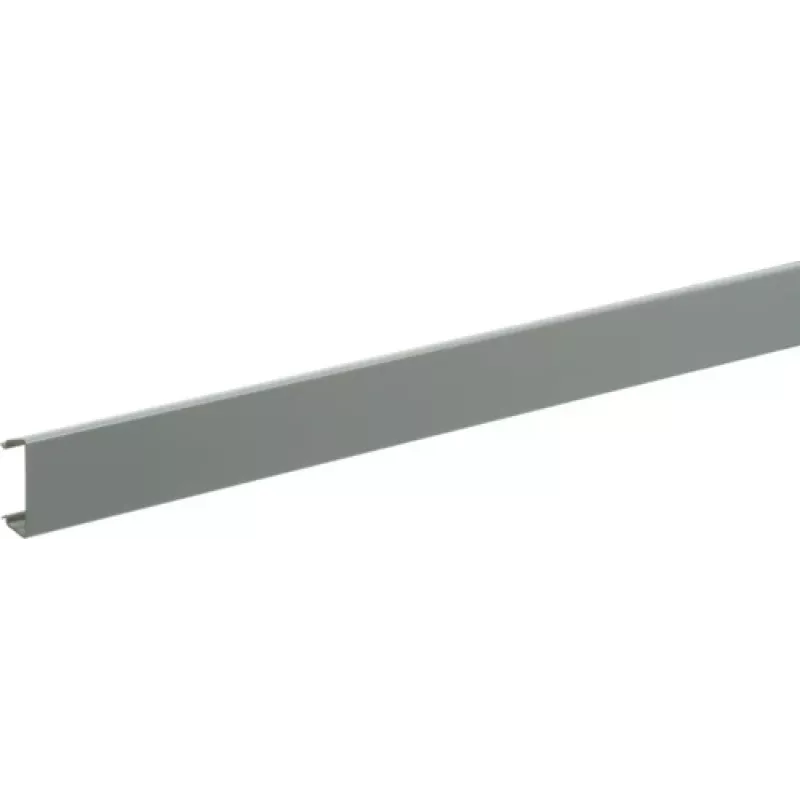

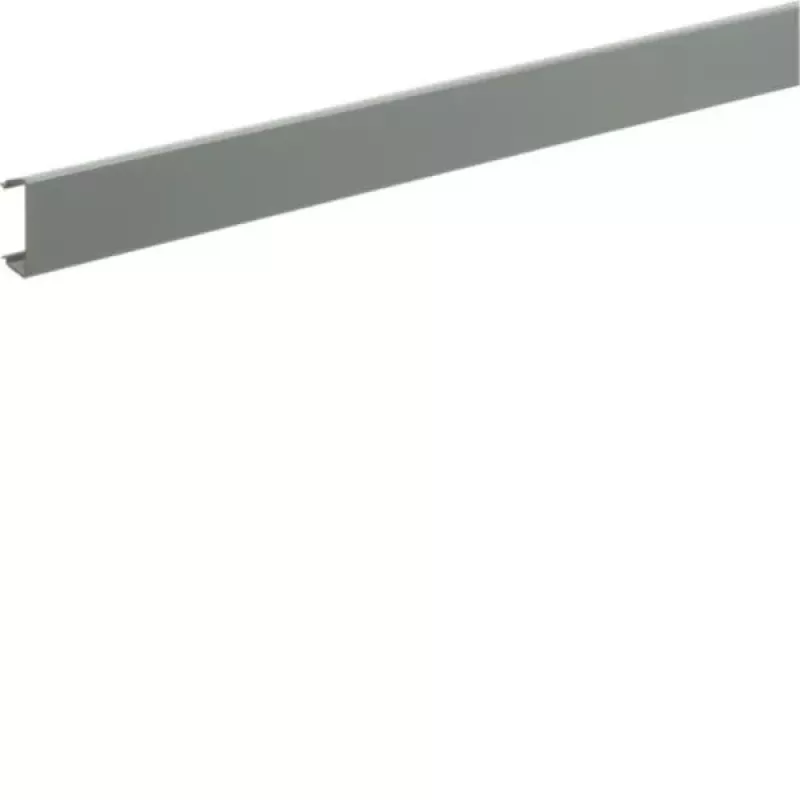

Hager S941L profilo isolante per barre collettrici 30x10 mm, 1000 mm, grigio

Clip-on PVC insulation profile for 30x10 mm busbars, 1 m length, grey (RAL 7035).

Overview

The Hager S941L is a busbar insulation profile designed to provide electrical insulation and mechanical protection for busbars with a width of 30 mm and a thickness of 10 mm. Made from grey PVC, it offers a simple clip-on installation and is suitable for use with copper or aluminum busbars in electrical distribution systems.

What stands out

• Compatible with 30x10 mm busbars
• Self-extinguishing PVC material
• Clip-on mounting for quick installation
• Operating temperature range from -5°C to +60°C

Technical details

• Product type: Busbar insulation profile
• Material: PVC (Polyvinyl Chloride)
• Colour: Grey (RAL 7035)
• Busbar compatibility (width): 30 mm
• Busbar compatibility (thickness): 10 mm
• Profile length: 1000 mm
• Mounting type: Clip-on / Slide-on
• Operating temperature range: -5 to +60 °C
• Flammability rating: Self-extinguishing
• Halogen-free: No
• UV resistance: Not specified for outdoor use
• Standards compliance: RoHS, REACH
• Cross-section shape: U-profile
• Compatible busbar material: Copper, Aluminum
• Manufacturer series: S941L
• Packaging unit: 1 piece

Our verdict

A reliable insulation solution for 30x10 mm busbars, offering easy installation and dependable protection.
