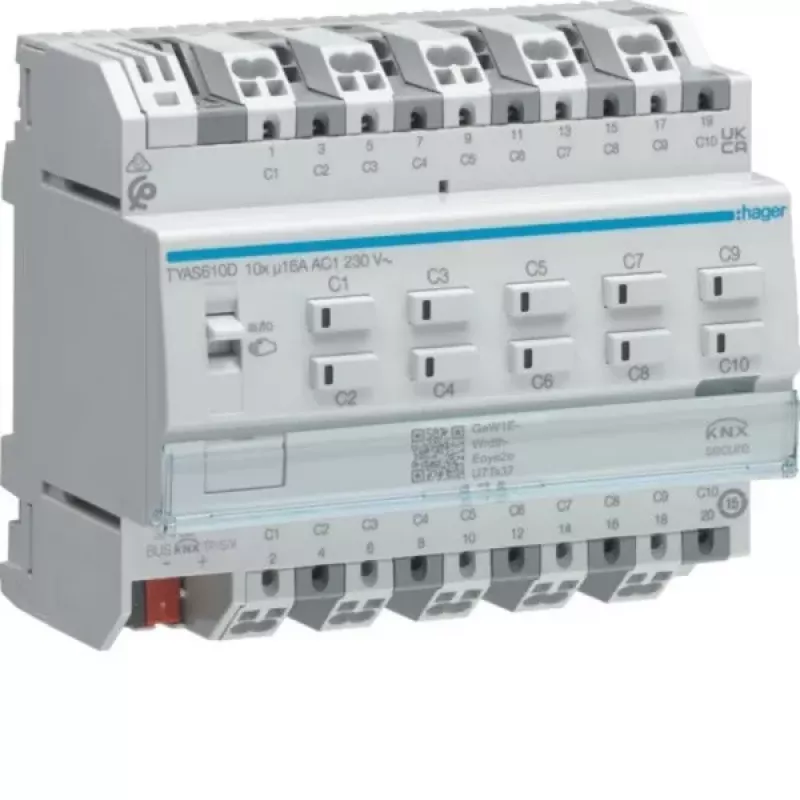

Hager TYAS610D attuatore KNX per commutazione/tapparelle 10/5 canali 16A carico C Secure

This KNX switch and blind actuator combines 10 switching channels and 5 blind/shutter channels in a single DIN rail module, with each channel rated for 16 A and supporting C-load. It enables precise control of lighting and motorised blinds or shutters in building automation systems.

Advantages

KNX Secure encryption protects communication against unauthorised access. Manual operation via local buttons allows on-site control without bus connection. Potential-free relay outputs handle ohmic, inductive, and capacitive loads, including fluorescent lighting with C-load characteristics.

Suitable for

• KNX building automation projects requiring combined switching and blind control
• Residential and commercial installations with mixed lighting and shading circuits
• DIN rail distribution boards where space efficiency is critical

Key specifications

• Bus system: KNX (TP), 21-30 V DC
• Channels: 10 switch outputs, 5 blind/shutter outputs
• Max. current per channel: 16 A
• Load types: ohmic, inductive, capacitive (C-load)
• Output: potential-free relay contacts
• Nominal switching voltage: 230 V AC
• Manual operation: yes, local buttons
• Programming: ETS
• Protection degree: IP20
• Operating temperature: 0 to 45 °C
• Short-circuit and overload protection: internal
• Status feedback and scene control: yes
• Module width: 10 TE (DIN modules)

Recommendations

For reliable and secure control of lighting and blinds in KNX installations, this actuator offers a compact solution with high per-channel current capacity and flexible load handling.
