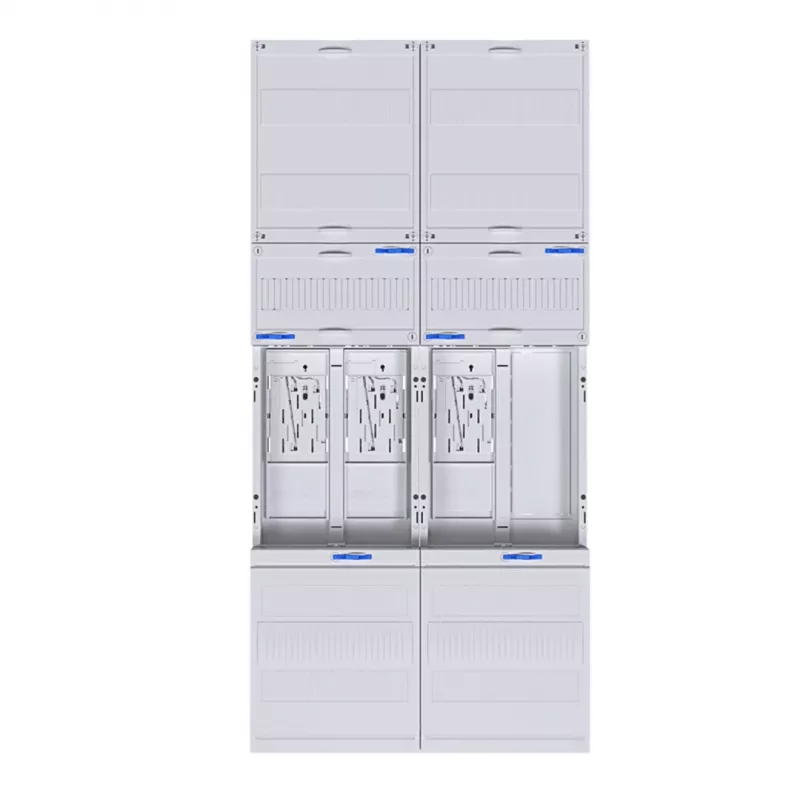

Hager univers Z campo contatore 3 punti 5 file 48 TE ZK3EN28

In residential and commercial electrical installations, integrating utility meters into the distribution system often requires a dedicated, pre-wired enclosure that meets strict utility standards. The Hager univers Z meter panel ZK3EN28 solves this by providing a ready-to-install metering field for three conventional 3-point meters, combined with four distribution rows, all in one compact unit.

Who is it for

This panel is intended for electricians and panel builders installing metering and distribution in residential or commercial buildings where a Hager univers Z cabinet system is used. It suits projects requiring three separate meter points, such as multi-tenant dwellings or buildings with multiple consumption circuits.

Main features

• Three meter points for conventional 3-point meters (Dreipunktzähler)
• Five rows total: one 300 mm meter field and four 150 mm distribution rows, each with 12 TE units (48 TE total)
• Main busbar system rated 250 A, 5-pole
• Meter circuit rated 63 A
• Integrated 5-pole main terminal block (HLAK) for conductors up to 35 mm²

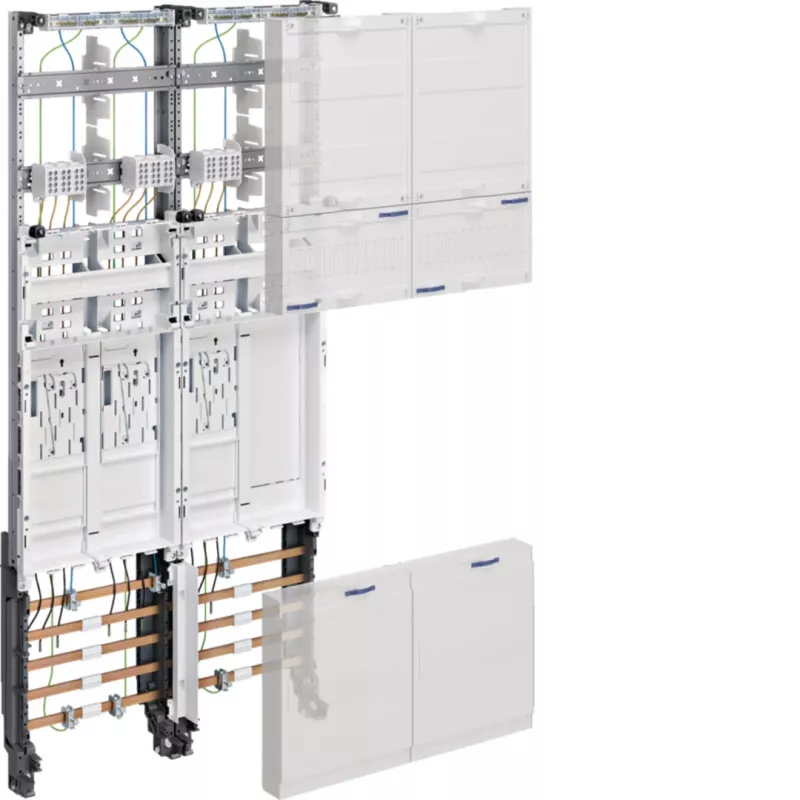

• Pre-wired meter connections for faster installation
• Snap-in mounting for Hager univers Z cabinets
• Galvanized steel and plastic construction

Specifications

• System compatibility: Hager univers Z
• Number of meter points: 3
• Meter type: Conventional 3-point meters
• Rated current (main busbar): 250 A
• Rated current (meter circuit): 63 A
• Number of rows: 5 (1 meter field, 4 distribution fields)
• Distribution units per row: 12 TE
• Total distribution units: 48 TE
• Main busbar system: 5-pole
• Main terminal block: Included, 5-pole, up to 35 mm²
• Meter mounting plate: Included
• Wiring: Pre-wired for meter connections
• Mounting type: Snap-in mounting for univers Z cabinets
• Material: Galvanized steel sheet, plastic
• Application: Residential and commercial metering installations
• Standards compliance: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100
• Height of meter field: 300 mm
• Height of distribution field: 150 mm per row

Tips

Ensure the cabinet depth matches the univers Z system. The pre-wired meter connections reduce wiring time, but always verify the meter terminal layout before energizing.
