HAGER univers Z kit di equipaggiamento 1-Zp.-PV ZY02PV

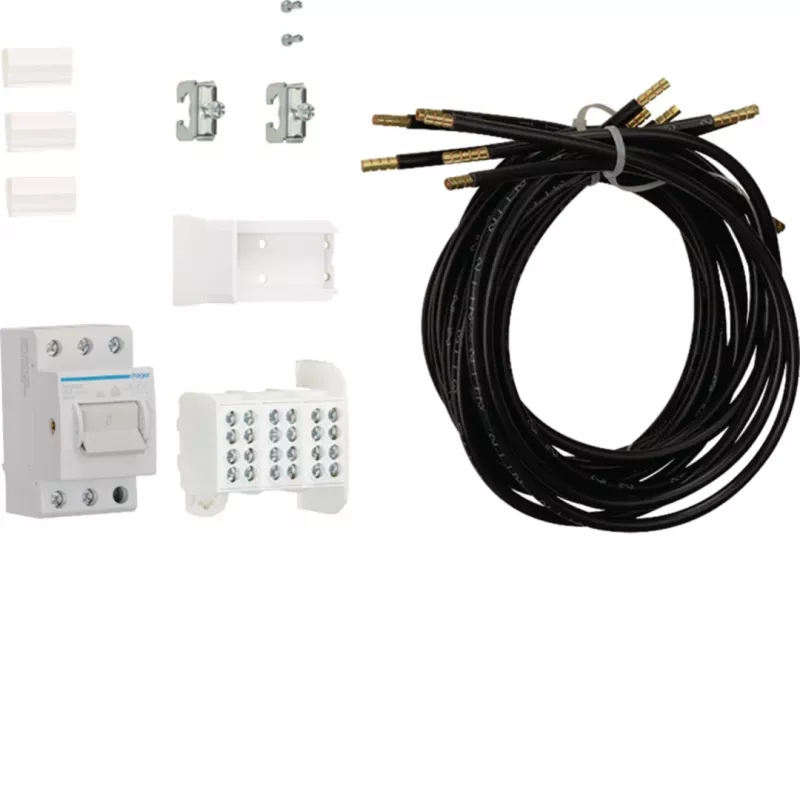

The HAGER univers Z 1-Zp.-PV Bestückungspaket ZY02PV is a pre-assembled equipment package for a single-metered photovoltaic system in a Hager univers Z meter cabinet. It includes a 63 A, 3-pole+N, C-curve miniature circuit breaker, a Type 2 surge protective device with 20 kA Imax, 5-pole busbar, PE/N terminals, and mounting material, all on 8 module units. Rated for 230/400 V AC, 50/60 Hz, compliant with DIN VDE 0603-1, DIN 43870-1, and VDE-AR-N 4100.

Overview

The ZY02PV is a complete, ready-to-install solution for connecting a photovoltaic system to the grid via a Hager univers Z meter cabinet. All components are coordinated to meet the requirements of modern PV installations, ensuring safe and reliable operation.

What stands out

• Integrated 63 A MCB with C characteristic for main circuit protection.
• Type 2 surge protection with 20 kA max discharge current safeguards the system against overvoltages.
• Compact design: all components fit within 8 module units (TE).
• Includes 5-pole busbar and PE/N terminals for straightforward wiring.
• Complies with relevant German installation standards (VDE-AR-N 4100).

Technical details

• Application: Photovoltaic (PV) systems
• System compatibility: Hager univers Z meter cabinets
• Meter places: 1
• Main circuit breaker: MCB, 3-pole + N, 63 A, characteristic C
• Surge protective device: Type 2, 3-pole + N, Imax 20 kA
• Nominal voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Busbar: 5-pole
• Number of module units: 8 TE
• Included components: MCB, SPD, PE/N terminals, busbar, mounting material
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100

Our verdict

The ZY02PV package simplifies PV installation in Hager univers Z cabinets, providing essential protection and compliance in one pre-assembled kit.
