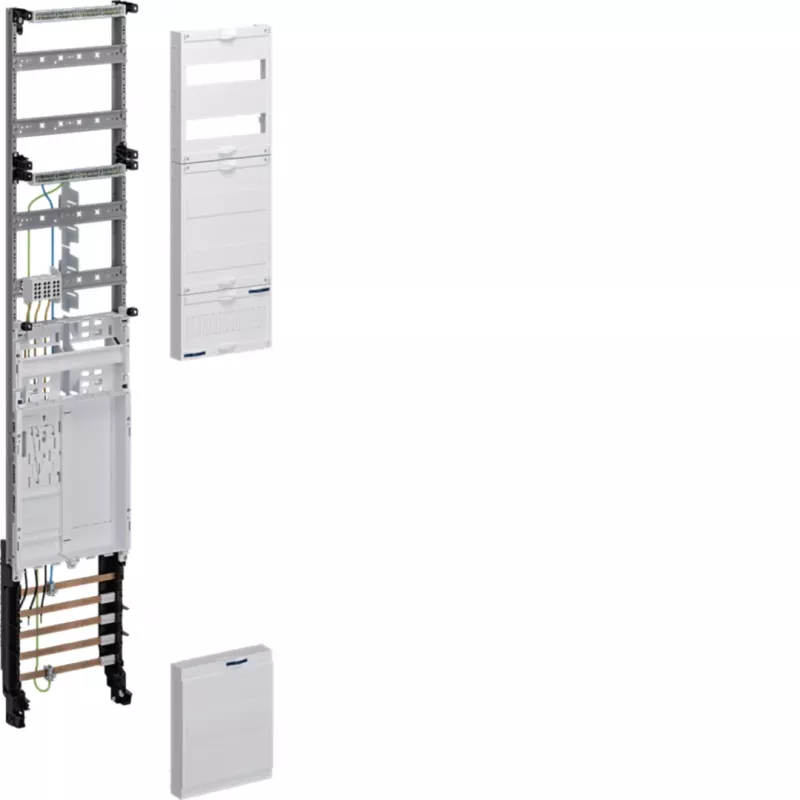

Hager univers Z quadro contatori completo ZH5EL27, 1 posto eHZ, BKE-I, H 1350mm

Electricians and panel builders working on residential or commercial installations need a reliable, pre-wired enclosure for a single electronic household meter (eHZ). The Hager univers Z ZH5EL27 complete meter field delivers exactly that: a ready-to-install unit that saves time and ensures compliance. The integrated BKE-I mounting concept provides a standardized, secure connection for the eHZ meter, while the 5-pole busbar system rated at 250 A offers ample capacity for future expansions. The included main line terminal (HLA) simplifies connection to the incoming supply, and the integrated APZ field provides space for additional applications. Constructed from durable sheet steel with IP2XC protection, this meter field is built to last.

Key specifications

• Product type: Complete Meter Field
• Series: Hager univers Z
• Number of meter positions: 1
• Meter type compatibility: eHZ (electronic household meter)
• Mounting concept: BKE-I (integrated mounting for eHZ)
• Height: 1350 mm
• Width: 250 mm
• Depth: 125 mm
• Busbar system: 5-pole
• Rated busbar current: 250 A
• Rated current per meter position: 63 A
• Rated voltage: 230/400 V AC
• Frequency: 50 Hz
• Main line terminal (HLA): Included (5-pole, up to 35 mm²)
• APZ field: Integrated
• Material: Sheet steel
• Protection class (installed): IP2XC
• Number of distribution rows: 0
• Number of main circuit breakers: 0

Why choose it

The ZH5EL27 is engineered for efficiency and compliance. Its pre-assembled design reduces on-site wiring time, while the integrated BKE-I adapter ensures a secure and standardized connection for the eHZ meter. The 250 A busbar system provides ample capacity for future expansions, and the included HLA terminal simplifies the connection to the incoming supply. With its robust sheet steel construction and IP2XC protection, this meter field is built to last in demanding environments.

Ideal use cases

• Residential electrical installations requiring a single eHZ meter position
• Commercial buildings with standardized meter mounting needs
• Panel builders looking for a pre-wired, ready-to-install meter enclosure
• Upgrades or retrofits where a compact, compliant meter field is needed

Good to know

The integrated APZ field (Anschlussraum für Zusatzanwendungen) provides dedicated space for additional applications such as communication modules or ripple control receivers. The meter field is designed for surface mounting and is compatible with standard eHZ meters. All necessary mounting hardware and documentation are included.
