Hager universZ Coperchio cieco 150 mm chiuso piombabile ZU63EA

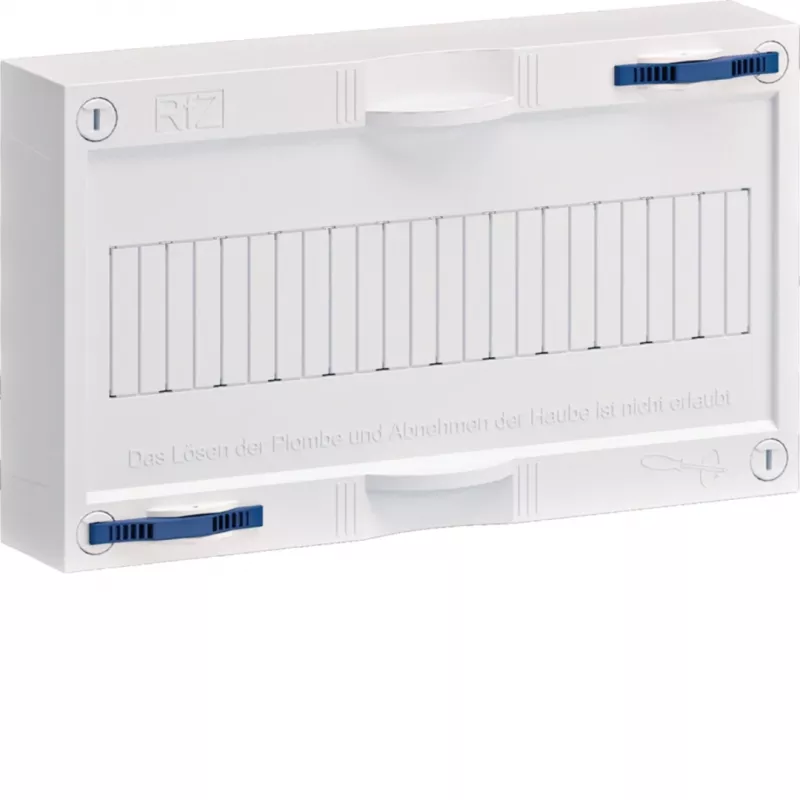

This Hager universZ blanking cover measures 150 mm wide and is designed to close unused fields in meter cabinets and distribution boards. Its closed, sealable design provides touch protection and allows for tamper-evident sealing.

Overview

The ZU63EA is a blanking cover from Hager's universZ system. It is made from high-quality thermoplastic in light grey (RAL 7035) and features a snap-on mounting for quick installation. The cover is suitable for vertical installation and operates within a temperature range of -5°C to +40°C.

What stands out

• Closed design for covering unused fields
• Sealable (plombierbar) for tamper evidence
• Snap-on mounting for easy installation
• Made from high-quality thermoplastic

Technical details

• Product type: Blanking Cover / Sealing Cover
• System compatibility: Hager universZ
• Nominal width: 150 mm
• Height: 250 mm
• Depth: 13 mm
• Material: High-quality Thermoplastic
• Colour: Light Grey (RAL 7035)
• Mounting type: Snap-on / Clip-on
• Application: Meter cabinets, Distribution boards, Multimedia fields
• Function: Covering unused fields, Touch protection, Sealing provision
• Installation position: Vertical
• Operating temperature range: -5°C to +40°C
• Flammability rating: UL94 V-2 (Material)

Our verdict

A reliable blanking cover for Hager universZ installations, offering sealing capability and easy snap-on mounting.
