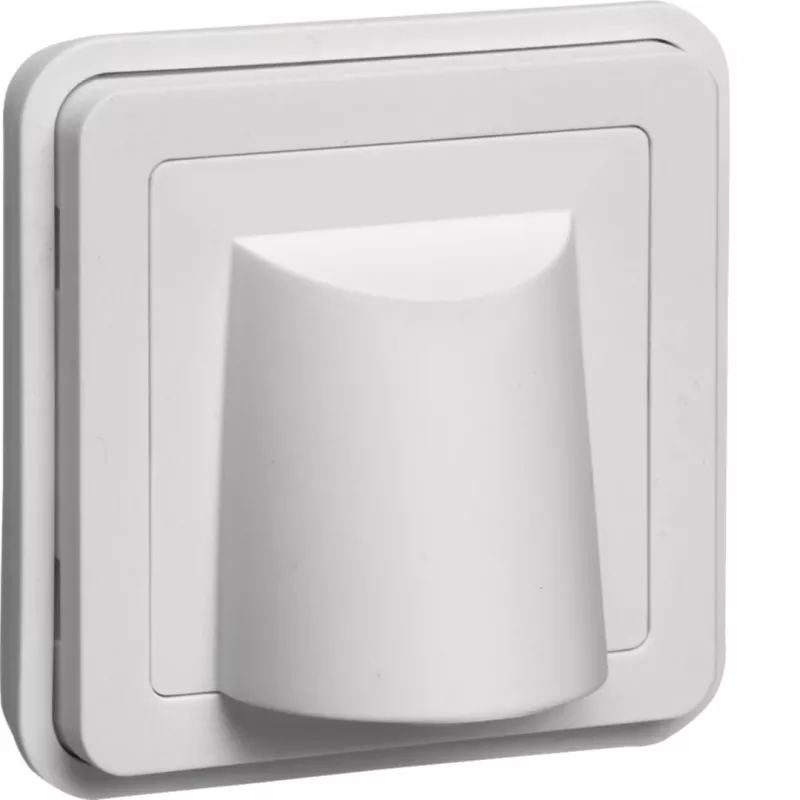

Hager W.1 inserto uscita cavo IP55 bianco polare WNA155B

For electricians and installers working on residential or commercial projects, the Hager W.1 Cable Outlet Insert provides a clean, protected cable exit point. This polar white insert fits into Hager W.1 frames and housings, offering a flexible membrane for secure cable routing in flush-mounted or surface-mounted installations.

Key specifications

• Product type: Cable outlet insert
• Series: Hager W.1
• Colour: Polar white (RAL 9010)
• Material: Thermoplastic
• IP protection rating: IP55
• Impact resistance: IK07
• Halogen-free: Yes
• UV resistance: Yes
• Glow wire test temperature: 850 °C
• Operating temperature range: -25 to +45 °C
• Storage temperature range: -25 to +70 °C
• Mounting type: For flush-mounted (UP) or surface-mounted (AP) systems
• Cable entry mechanism: Flexible membrane
• Design: Single module insert
• Compatibility: Compatible with Hager W.1 frames and housings

Why choose it

The insert's IP55 rating protects against dust and low-pressure water jets, making it suitable for protected environments. Its halogen-free thermoplastic construction and UV resistance ensure durability and safety. The flexible membrane allows for easy cable insertion while maintaining a seal.

Ideal use cases

• Routing cables through walls or panels in residential electrical installations
• Commercial buildings where a neat, protected cable exit is required
• Areas with occasional moisture or dust, such as utility rooms or covered outdoor spaces

Good to know

The insert is designed as a single module, fitting standard Hager W.1 frames. It is certified CE and meets relevant standards for electrical accessories.
