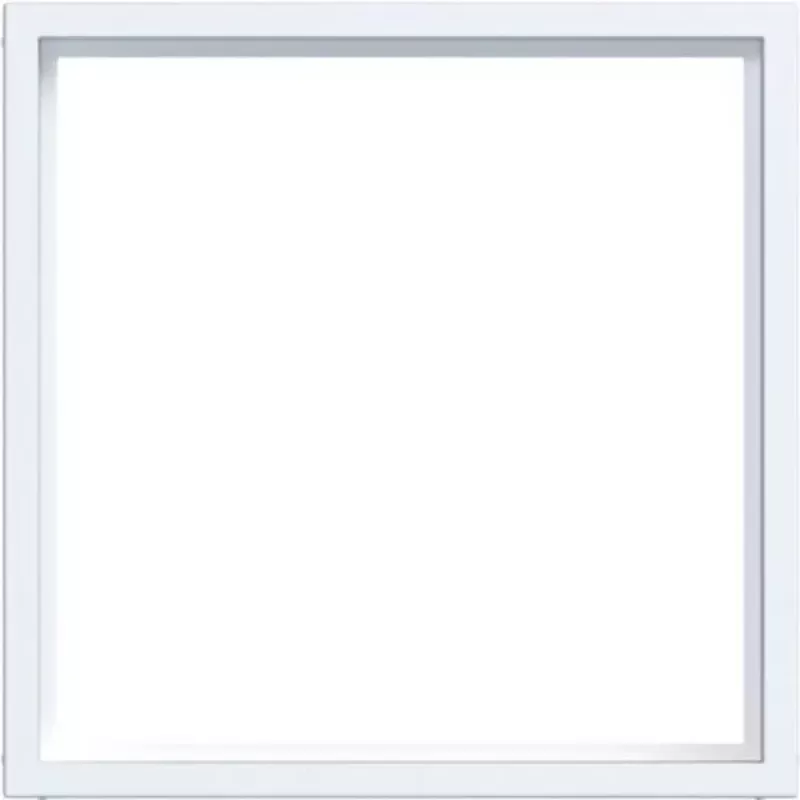

HAGER WAF7073WM Anello intermedio per placche centrali 50x50mm, bianco polare

Electricians and installers use the HAGER WAF7073WM intermediate ring to mount 50x50mm central plates—such as data sockets, multimedia outlets, switches, push-buttons, and dimmers—into Hager flush-mounted or surface-mounted systems. The ring bridges the gap between the central plate and the supporting frame, ensuring a clean, secure fit in residential and commercial installations.

Key specifications

• Product type: Intermediate ring / adapter ring
• Compatibility: Central plates with 50x50mm dimensions
• Colour: Polar white (RAL 9010)
• Material: Thermoplastic, halogen-free
• Surface finish: Glossy
• Mounting type: For flush-mounted (UP) and surface-mounted (AP) systems
• Outer dimensions (W x H): 71 x 71 mm
• Inner dimensions (W x H): 50 x 50 mm
• Depth: 10 mm
• Protection class: IP20
• UV-resistant: Yes
• Series: Hager WAF

Why choose it

The ring is made of halogen-free thermoplastic with a glossy, UV-resistant polar white finish that matches Hager WAF frames and plates. It accepts any standard 50x50mm central plate, simplifying inventory for multi-brand installations.

Ideal use cases

• Installing data or multimedia sockets in Hager frames
• Mounting switches, push-buttons, or dimmers with 50x50mm central plates
• Retrofitting existing flush-mounted or surface-mounted boxes

Good to know

The WAF7073WM is part of the Hager WAF series and is designed for both flush-mounted and surface-mounted installations. It is not intended for outdoor use without additional protection.
